Without Intelligent Key System

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid A and steering lock escutcheon. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Pull out ring, turn bulb socket to left to release lock and remove it.

    Ignition key hole illumination : 12V - 1.4W

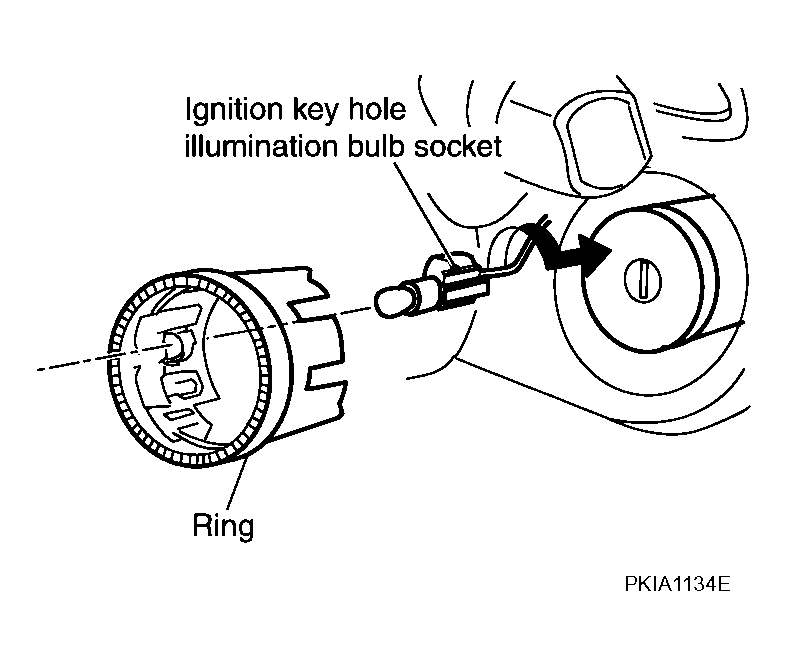

    Fig 1: Identifying Ignition Key Hole Illumination Bulb Socket - Without Intelligent Key System
    G04123831Courtesy of NISSAN MOTOR CO., U.S.A.
