Removal and Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

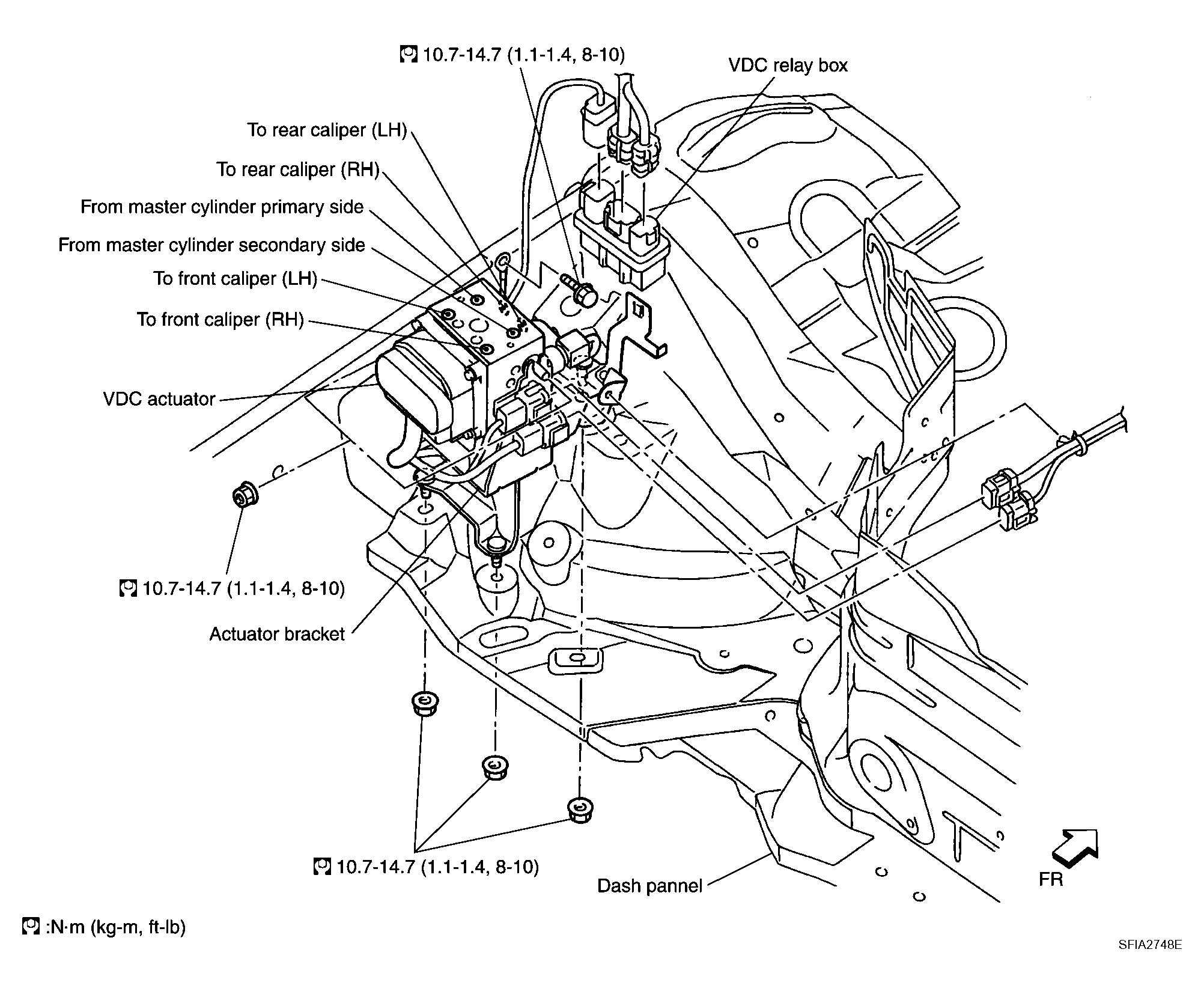

Fig 1: Identifying VDC/TCS/ABS Actuator In Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Pay attention to the following when removing VDC actuator.

CAUTION:

Before servicing, disconnect the battery cable from the negative terminal.
To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use a flare nut crowfoot and torque wrench (commercial service tool).
Do not remove and install VDC actuator by holding harness.
After work is completed, bleed air from brake piping. Refer to "BLEEDING BRAKE SYSTEM ".
Be sure to securely connect the battery cable to the negative terminal.
