Operation Procedure

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector and start engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which perform CAN communication.
  2. Touch "START" on display.
  3. Touch "ABS". If ABS is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
  4. Touch "ACTIVE TEST".
  5. The test item selection screen is displayed.
  6. Touch necessary test item.

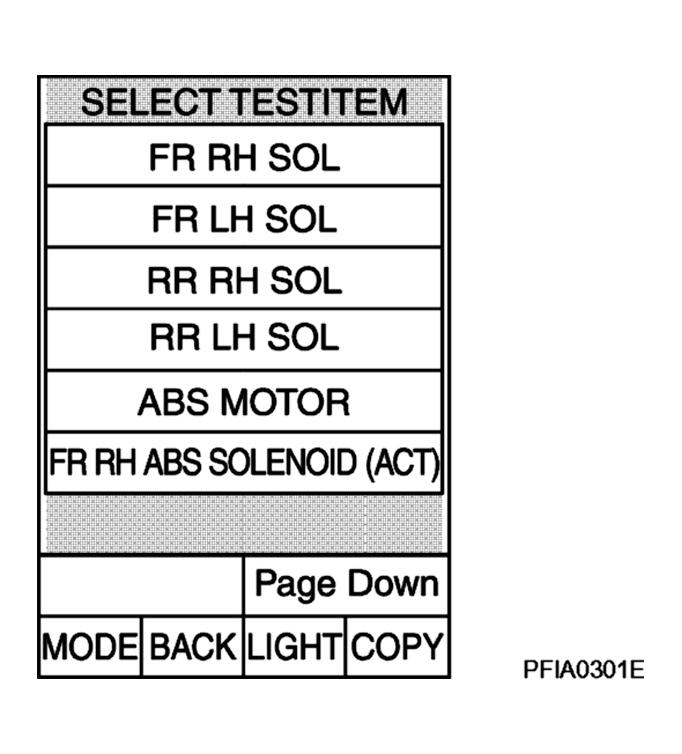

    Fig 1: CONSULT-II Display - SELECT TEST ITEM
    G04122031Courtesy of NISSAN MOTOR CO., U.S.A.
  7. With the "MAIN ITEM" display shown in reverse, touch "START".
  8. The ACTIVE TEST screen will be displayed, so conduct the following test.
    NOTE:
    • When the active test is conducted while depressing the pedal, the pedal depression amount will change, but this is normal.
    • Approximately 10 seconds after the operation is begun"TEST STOP" will be displayed.
    • To conduct a retest after "TEST STOP" is displayed, touch "BACK" and conduct the test from the step  6.
