Abs Motor Relay And Actuator Relay

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the VDC relay box connector E47, E48, E222.
Apply a voltage of 12 V between the ABS motor relay terminal 8 and the actuator relay terminal 7 and then check the continuity between the following terminals.

CONTINUITY CONDITIONS

ABS motor relay	Between terminal 4 to 10	Continuity should exist.
Actuator relay	Between terminal 9 to 16	Continuity should exist.

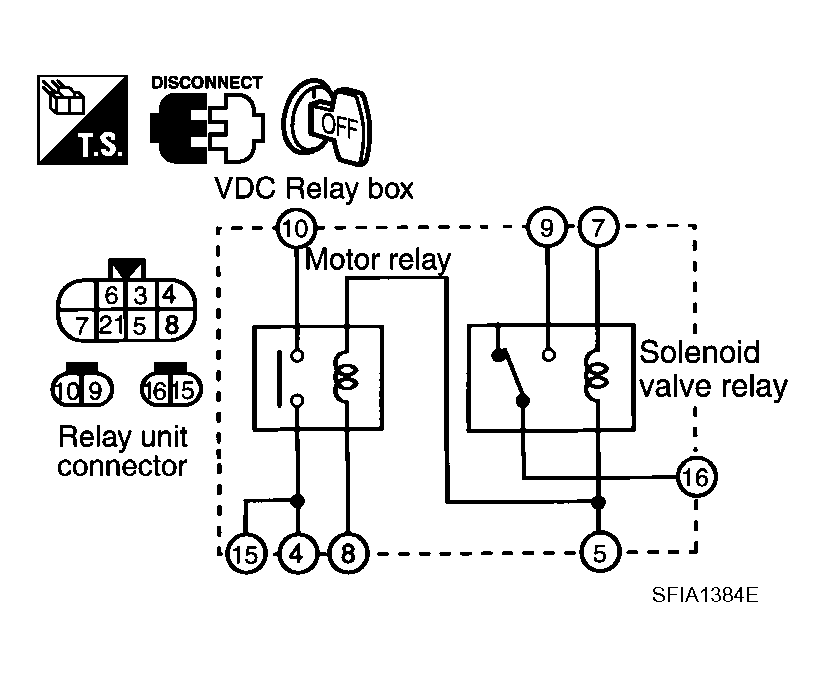

Fig 1: Identifying Continuity Between ABS Motor And Actuator Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
