Light Warning Chime
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
With ignition switch in OFF or ACC position, driver's door is opened, and lighting switch in 1ST or 2ND position, the light warning chime will sound.
NOTE:
BCM detects lighting switch in the 1ST or 2ND position. Refer to
"COMBINATION SWITCH READING FUNCTION
".

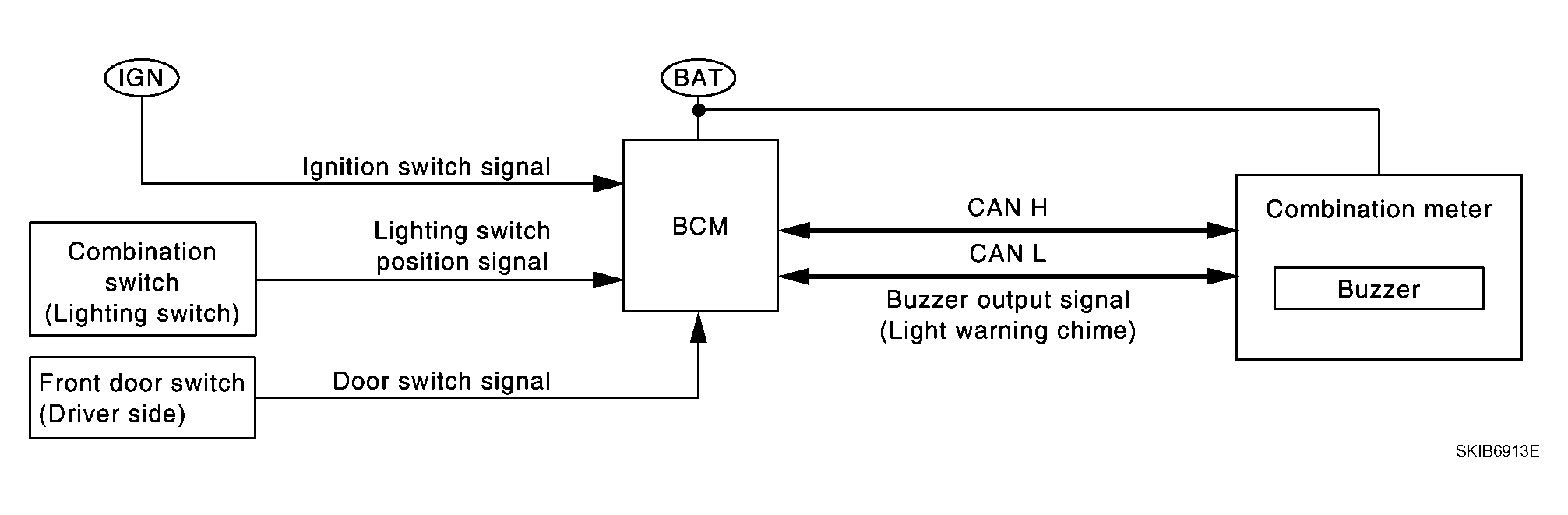

- BCM detects ignition switch in OFF or ACC position, front door switch (driver side) ON, and lighting switch in 1ST or 2ND position. And then, transmits buzzer output signal (light warning chime) to combinationmeter with CAN communication.
- When combination meter receives buzzer output signal (light warning chime), it sounds the buzzer.
