Operation Procedure

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

Fig 1: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

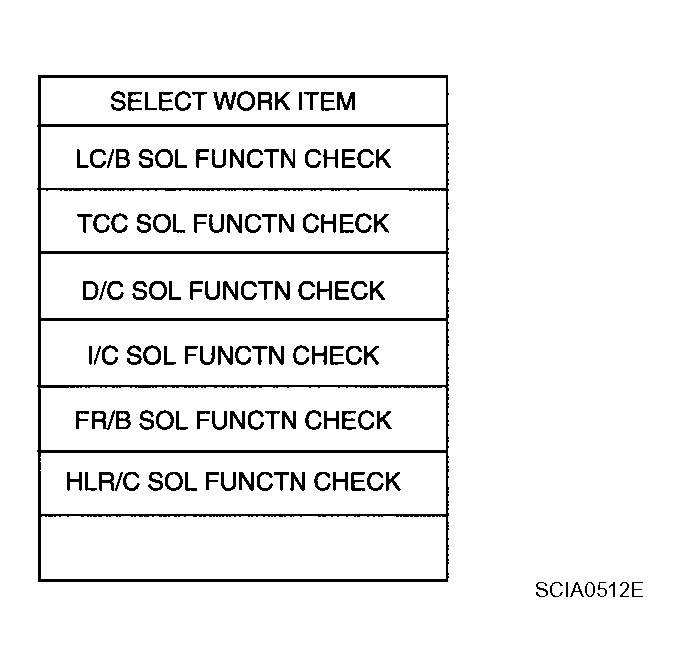

Fig 2: Identifying CONSULT-II Select Work Items Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

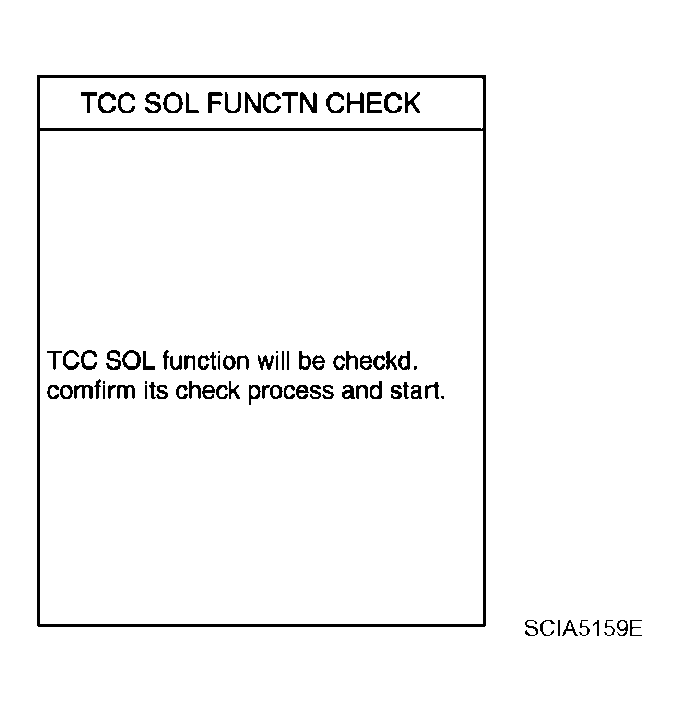

Fig 3: Identifying CONSULT-II TCC SOL Function Check Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC Confirmation Procedure" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 4: Identifying CONSULT-II TCC SOL Function Check Display
Courtesy of NISSAN MOTOR CO., U.S.A.

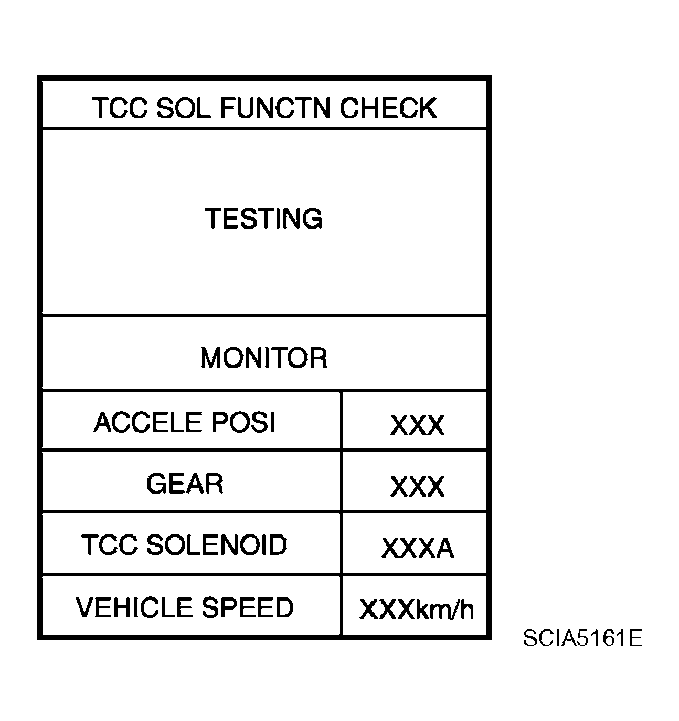

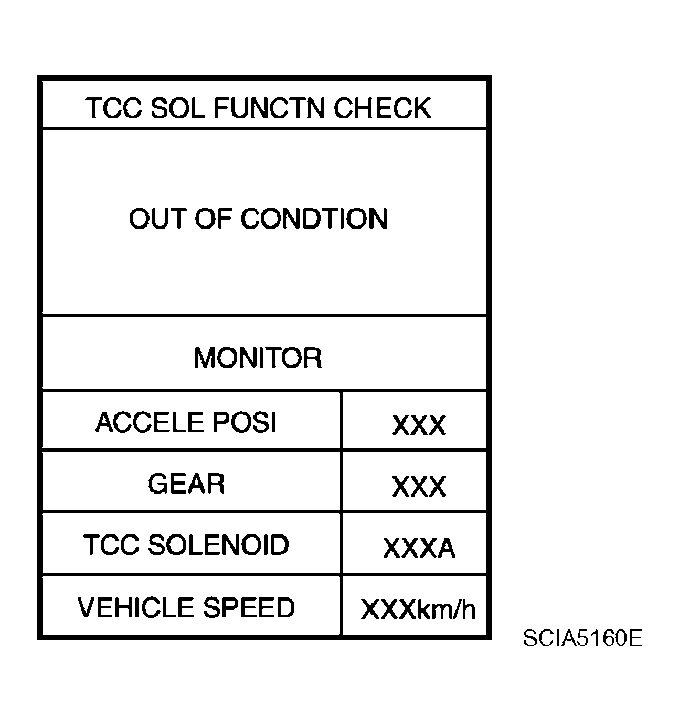

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

  Fig 5: Identifying CONSULT-II TCC SOL Function Check Display
  Courtesy of NISSAN MOTOR CO., U.S.A.

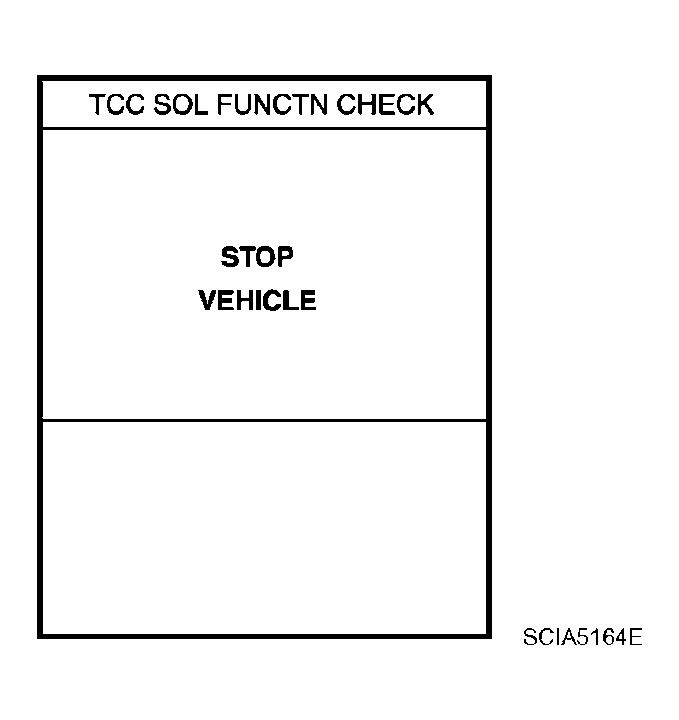

Stop vehicle.

Fig 6: Identifying CONSULT-II TCC SOL Function Check Display
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to " DIAGNOSTIC PROCEDURE " .

  Fig 7: Identifying CONSULT-II TCC SOL Function Check Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

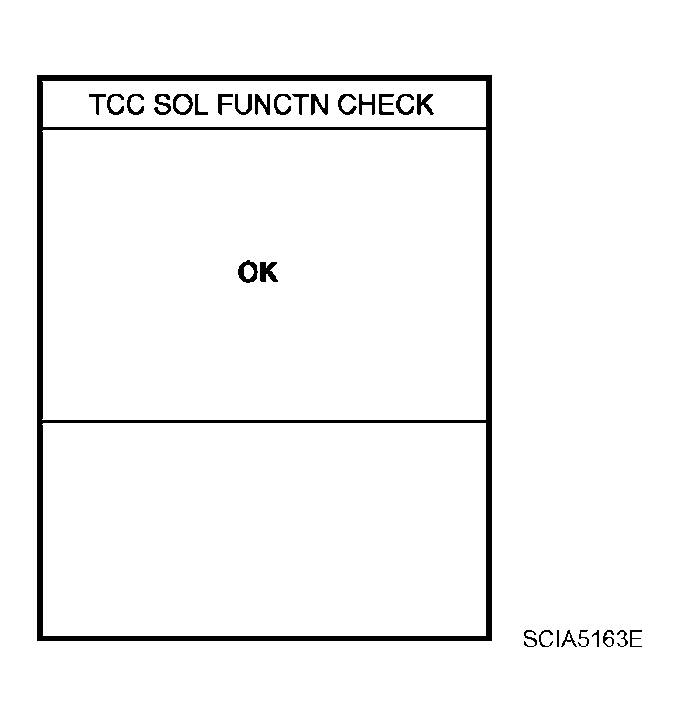

Fig 8: Identifying CONSULT-II TCC SOL Function Check Display
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to " DIAGNOSTIC PROCEDURE " .

Fig 9: Identifying CONSULT-II TCC SOL Function Check Display
Courtesy of NISSAN MOTOR CO., U.S.A.
