Control Device Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect lower lever of control device and control rod.
  2. Remove knob cover below selector lever downward.
  3. Pull lock pin out of selector lever knob.
  4. Remove selector lever knob.
  5. Remove console finisher. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove center console. Refer to "CENTER CONSOLE (A/T MODELS) ".
  7. Remove rear ventilator duct 2. Refer to "REMOVAL OF REAR VENTILATOR DUCTS ".
  8. Remove key interlock cable from control device. Refer to "REMOVAL AND INSTALLATION ".
  9. Disconnect A/T device harness connector.

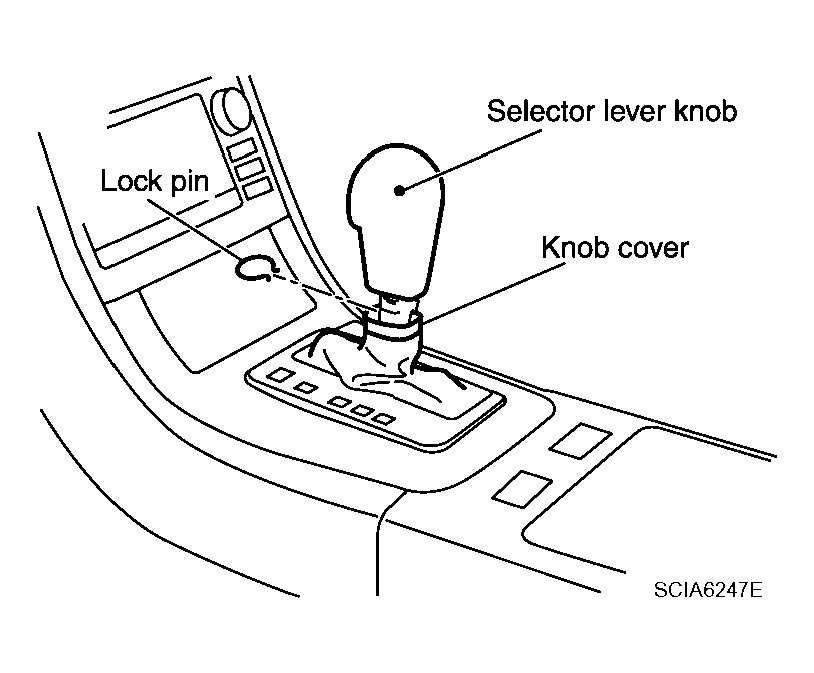

    Fig 1: Pulling Lock Pin
    G04120792Courtesy of NISSAN MOTOR CO., U.S.A.

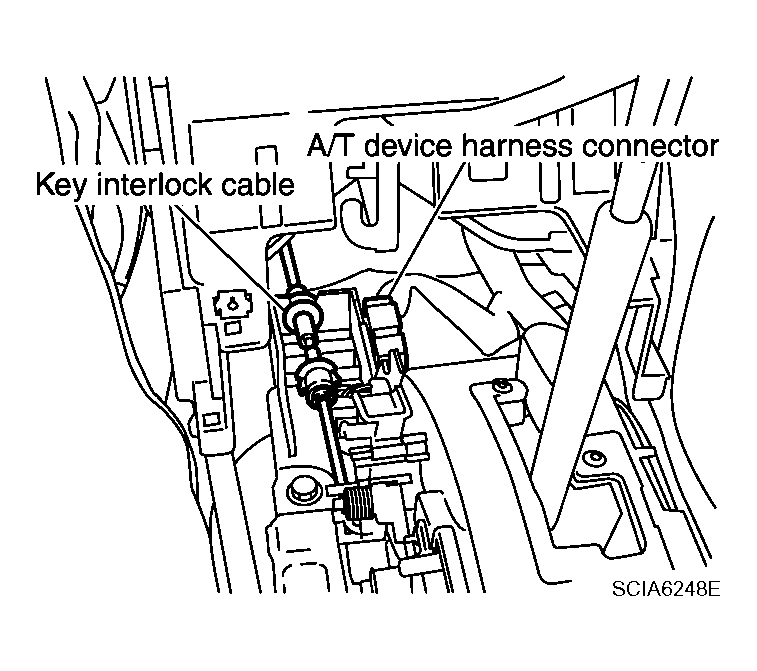

    Fig 2: Identifying A/T Device Harness Connector
    G04120793Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove control device assembly.

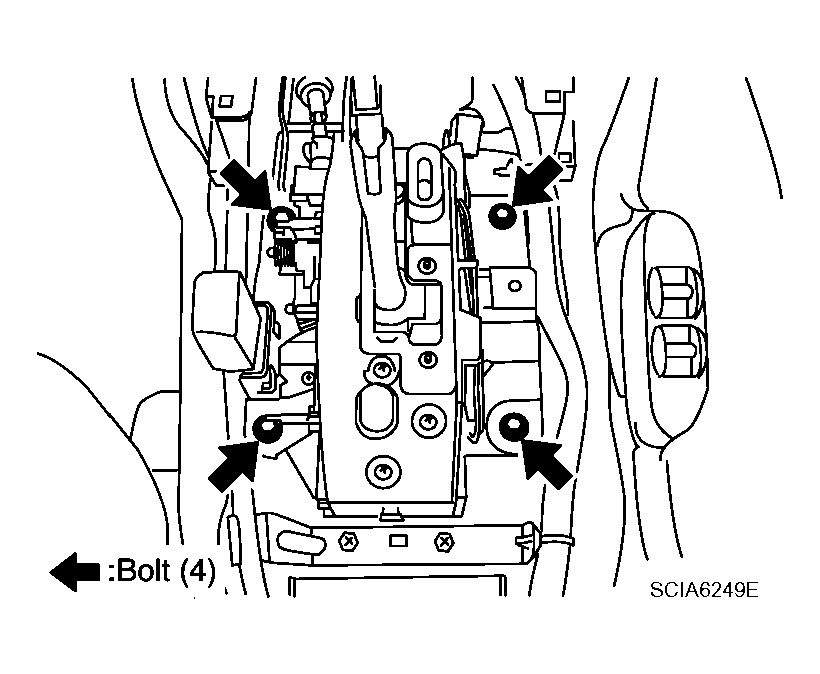

    Fig 3: Identifying Control Device Assembly
    G04120794Courtesy of NISSAN MOTOR CO., U.S.A.
