Special Service Tools

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS

Tool number (Kent-Moore No.) Tool name Description

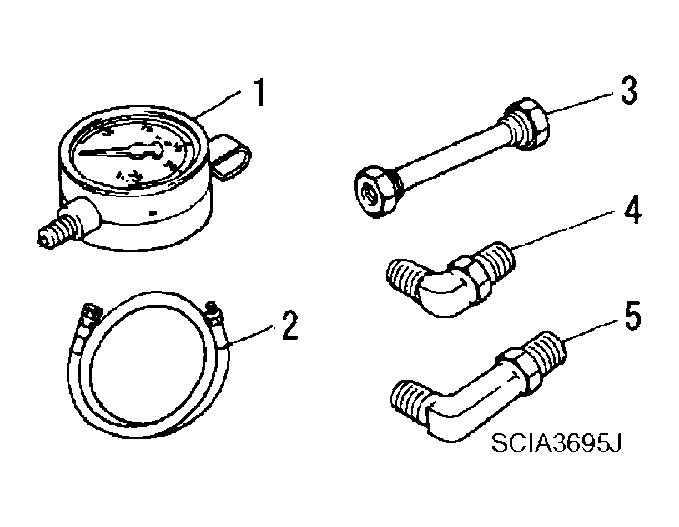

ST2505S001
(J-34301-C)
Oil pressure gauge set
  1. ST25051001

    ( - )

    Oil pressure gauge

  2. ST25052000

    ( - )

    Hose

  3. ST25053000

    ( - )

    Joint pipe

  4. ST25054000

    ( - )

    Adapter

  5. ST25055000

    ( - )

    Adapter
G04120603
 Measuring line pressure

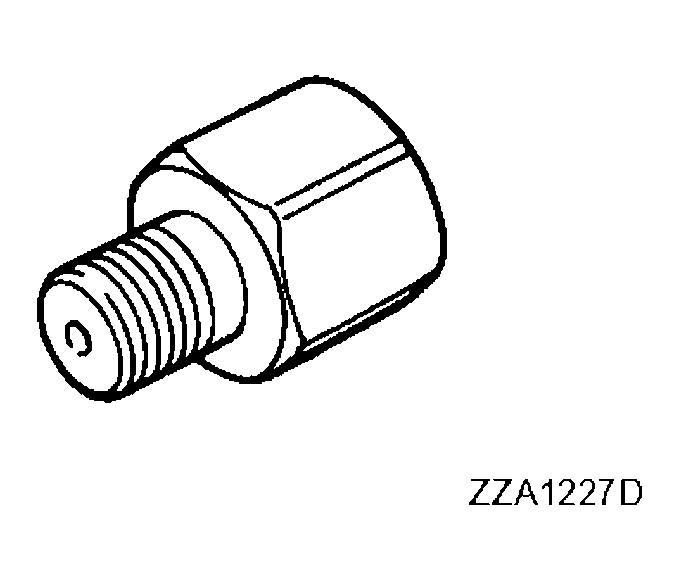

KV31103600
(J-45674)
Joint pipe adapter
(With ST25054000)
G04120604
 Measuring line pressure

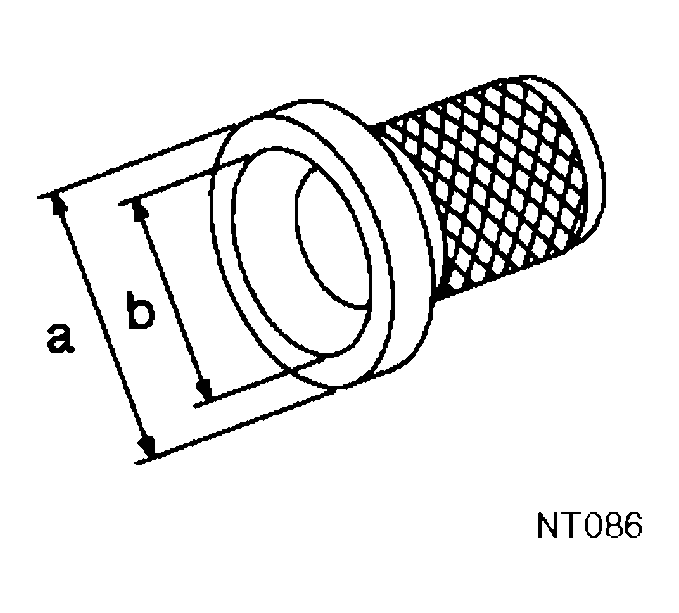

ST33400001
(J-26082)
Drift
  1. 60 mm (2.36 in) dia.
  2. 47 mm (1.85 in) dia.
G04120605
  • Installing rear oil seal (2WD models)
  • Installing oil pump housing oil seal

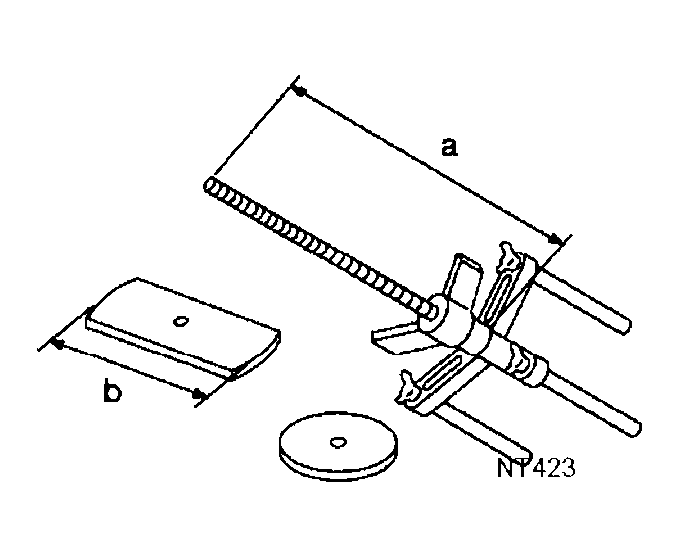

KV31102400
(J-34285 and J-34285-87)
Clutch spring compressor
  1. 320 mm (12.60 in)
  2. 174 mm (6.85 in)
G04120606
 Installing reverse brake return spring retainer

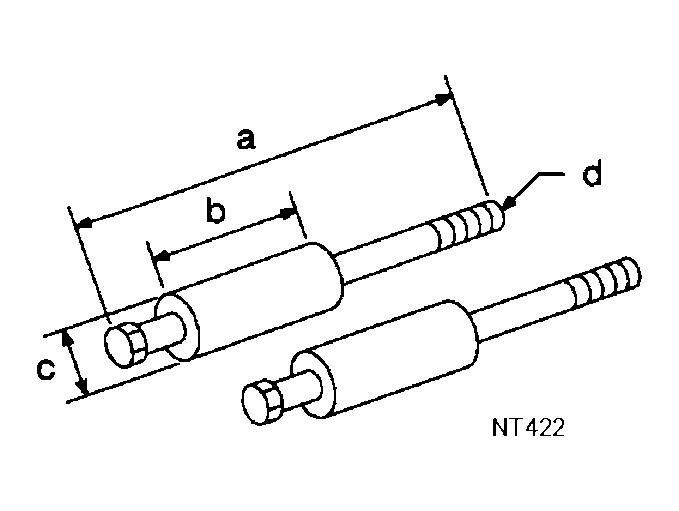

ST25850000
(J-25721-A)
Sliding hammer
  1. 179 mm (7.05 in)
  2. 70 mm (2.76 in)
  3. 40 mm (1.57 in)
  4. M12X1.75P
G04120607
 Remove oil pump assembly
