Revolution Sensor (2WD Models Only): Components: Notes

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

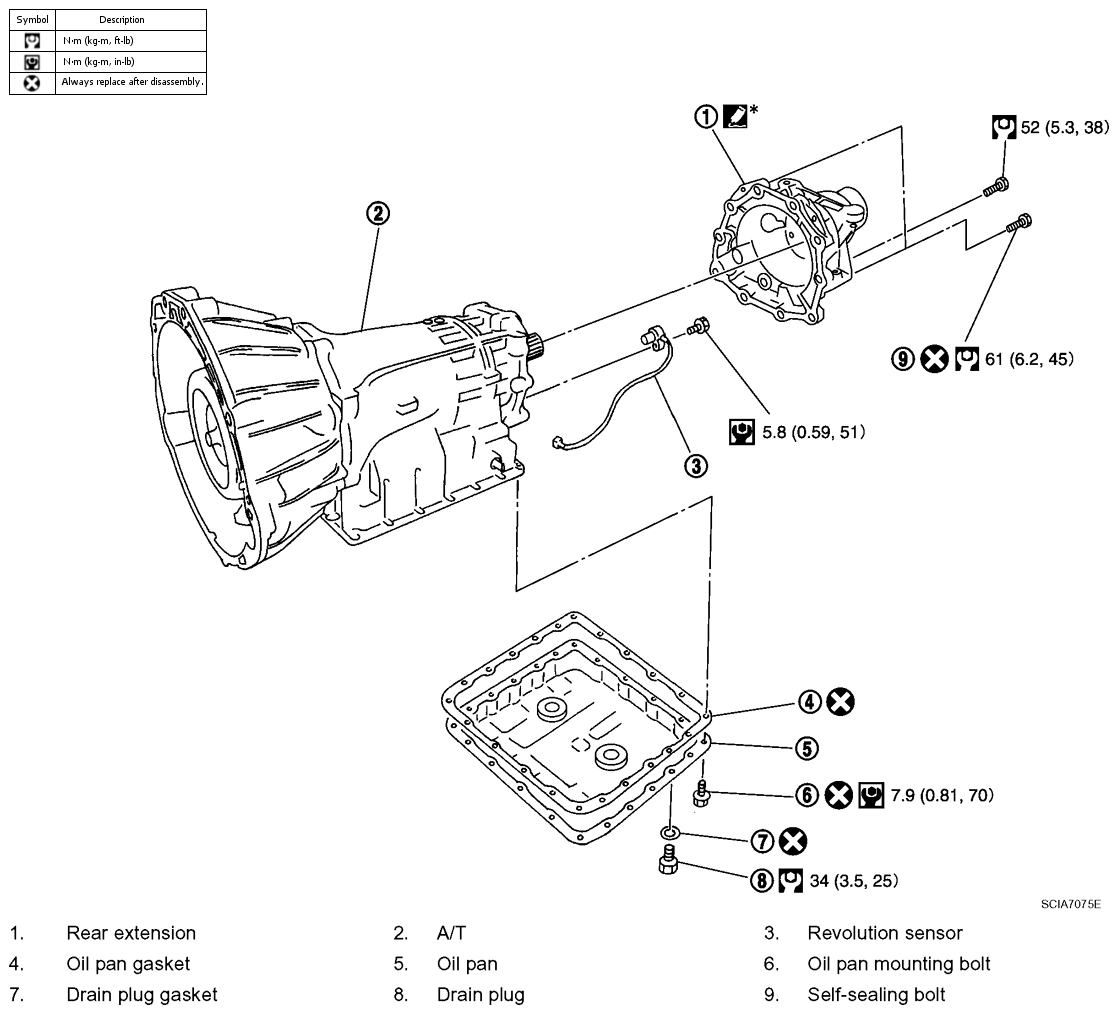

Fig 1: Revolution Sensor With Torque Specifications (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbols for others.

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
