Revolution Sensor (2WD Models Only): Components: Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T position, A/T fluid leakage and A/T fluid level. Refer to "CHECKING OF A/T POSITION ', "CHECKING A/T FLUID ".
  1. Install revolution sensor in transmission case, and then tighten revolution sensor mounting bolt to the specified torque. Refer to "COMPONENTS ".
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

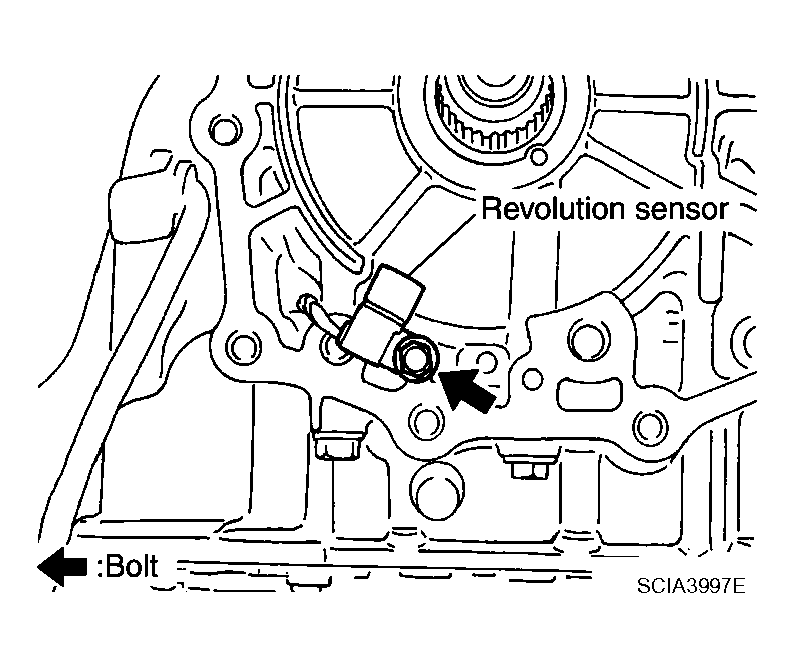

    Fig 1: Identifying Revolution Sensor
    G04120905Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect revolution sensor connector.

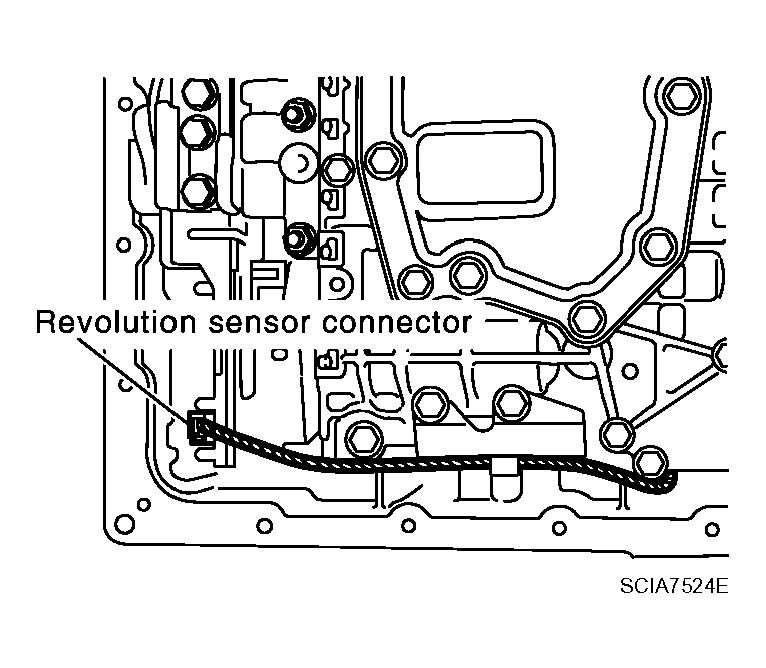

    Fig 2: Identifying Revolution Sensor Connector
    G04120906Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Securely fasten revolution sensor harness with terminal clip.

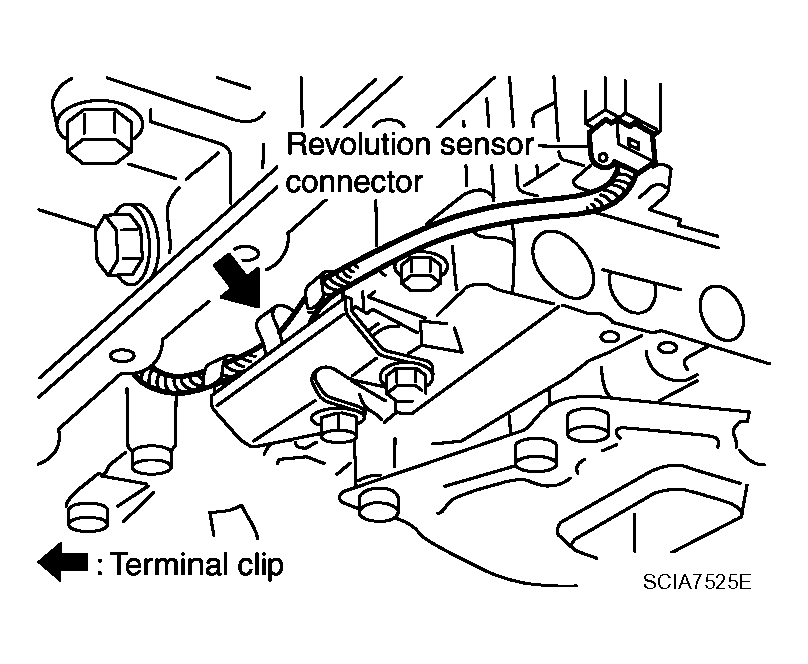

    Fig 3: Fastening Revolution Sensor Harness With Terminal Clip
    G04120907Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in figure.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

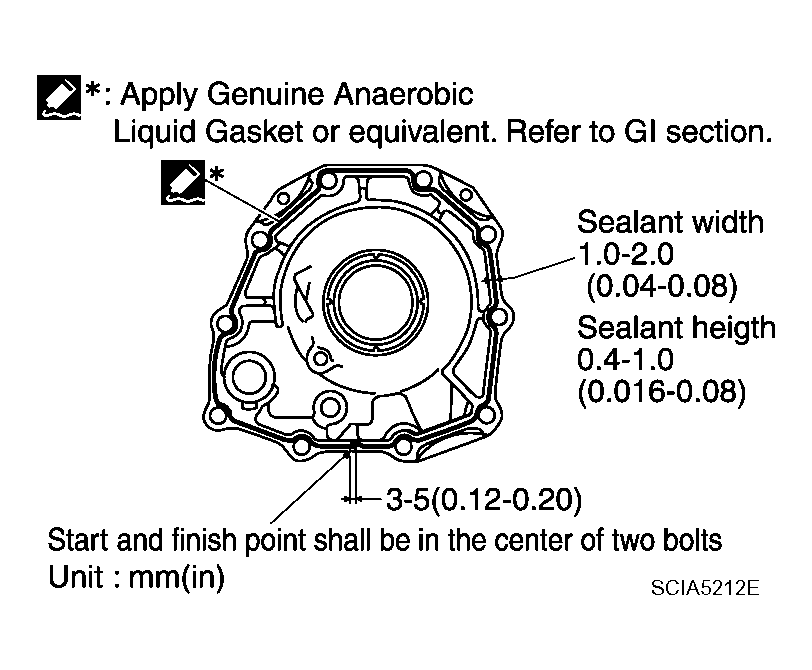

    Fig 4: Identifying Sealant On Rear Extension Assembly
    G04120908Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install rear extension assembly to transmission case. (With needle bearing.)
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

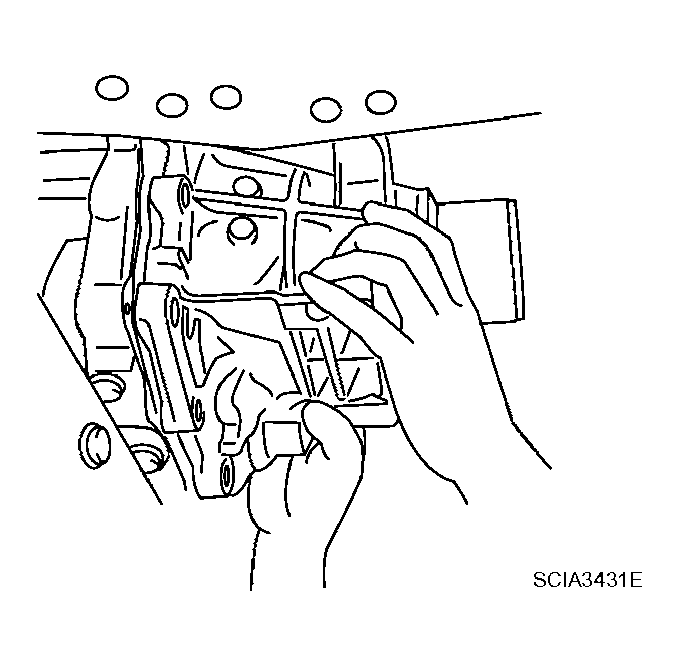

    Fig 5: Identifying Rear Extension Assembly To Transmission Case
    G04120909Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten rear extension assembly mounting bolts to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse self-sealing bolts.

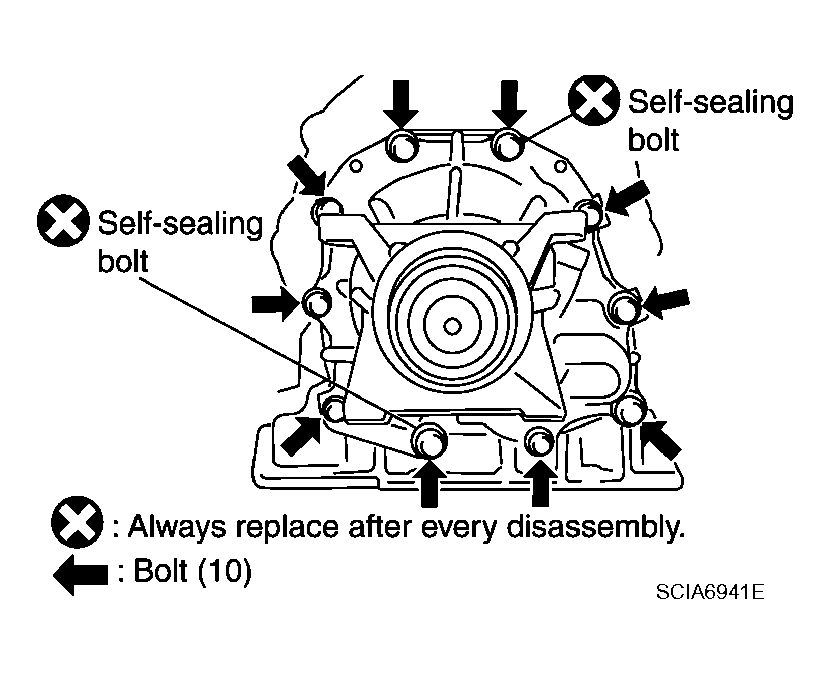

    Fig 6: Identifying Tightening Rear Extension Assembly Mounting Bolts
    G04120910Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear engine mounting member. Refer to "REMOVAL AND INSTALLATION ".
  8. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

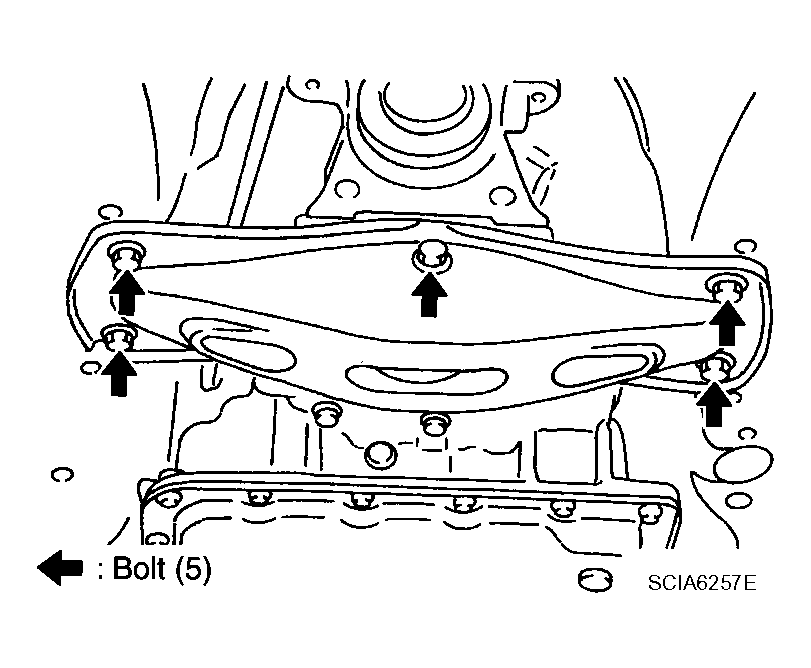

      Fig 7: Identifying Rear Engine Mounting Member
      G04120911Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install oil pan (with oil pan gasket) to transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
      Fig 8: Identifying Oil Pan Bolts
      G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".
    CAUTION: Do not reuse oil pan mounting bolts.
  9. Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.
  10. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".

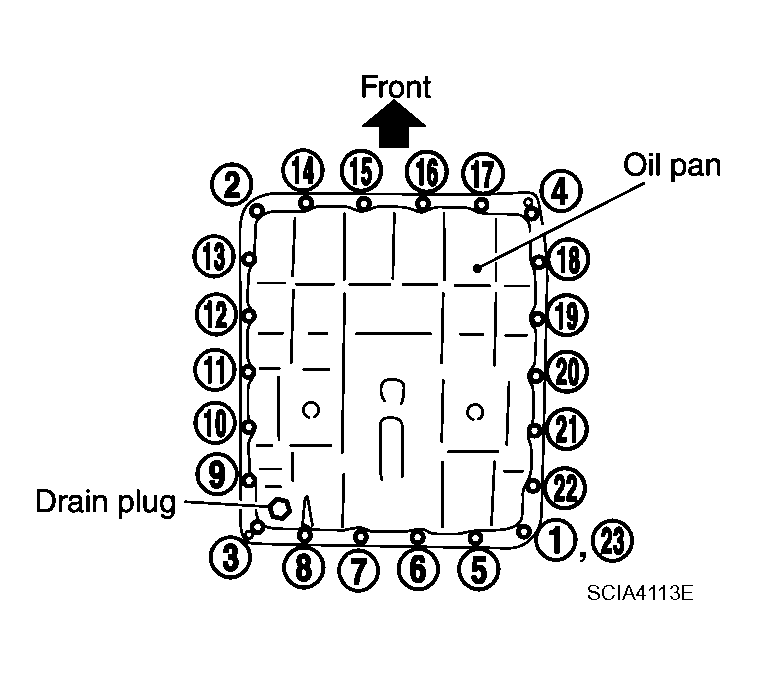

    Fig 9: Identifying Tightening Oil Pan Mounting Bolts In Sequence
    G04120913Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  12. Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  13. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
  14. Connect the battery cable to the negative terminal.
