Parking Components (2WD Models Only): Components: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Drain ATF through drain hole.
Remove exhaust front tube and center muffler with power tool. Refer to "REMOVAL AND INSTALLATION ".
Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
Support A/T assembly with a transmission jack.
CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
Remove rear engine mounting member with power tool. Refer to "REMOVAL AND INSTALLATION ".

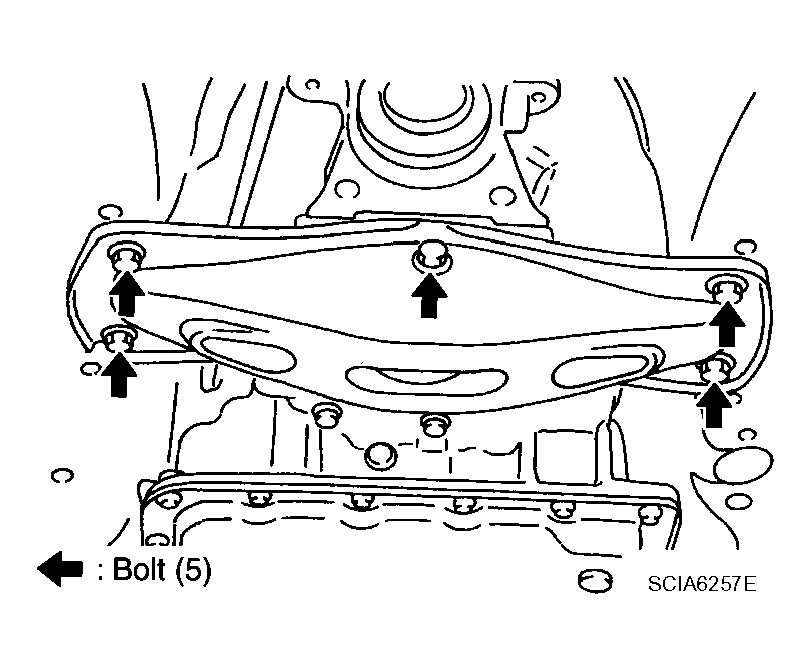

Fig 1: Identifying Rear Engine Mounting Member
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove engine mounting insulator (rear). Refer to "REMOVAL AND INSTALLATION ".

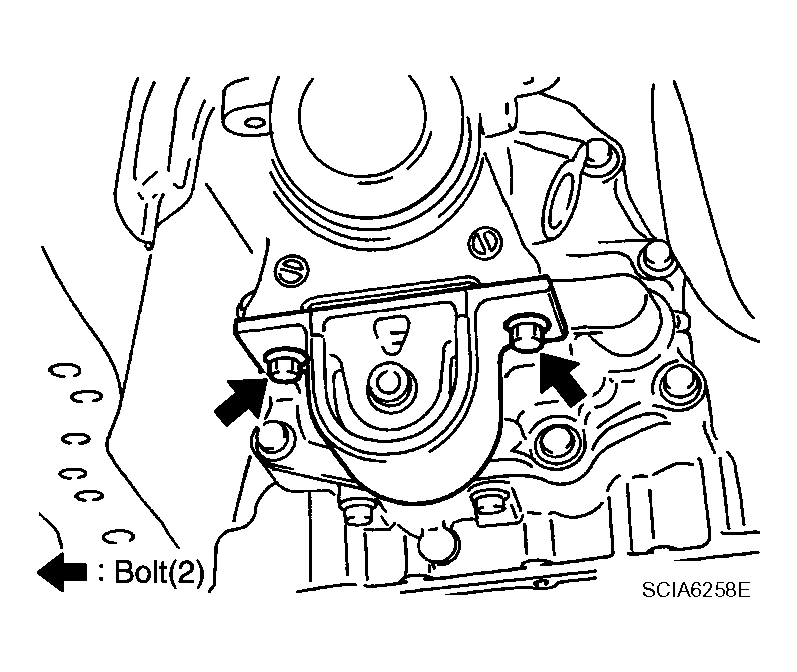

Fig 2: Identifying Engine Mounting Insulator
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove tightening bolts for rear extension assembly and transmission case.

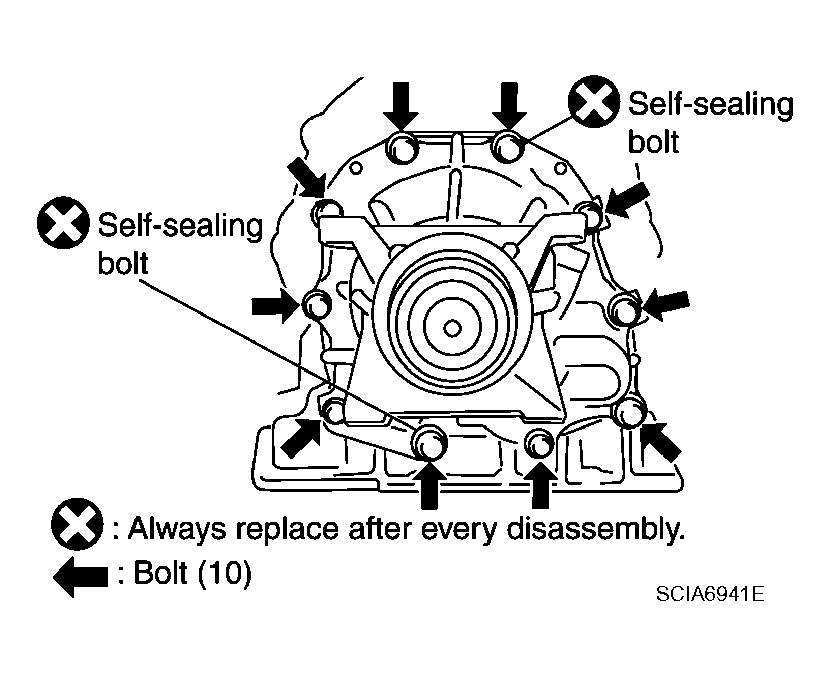

Fig 3: Identifying Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Tap rear extension assembly with a soft hammer.

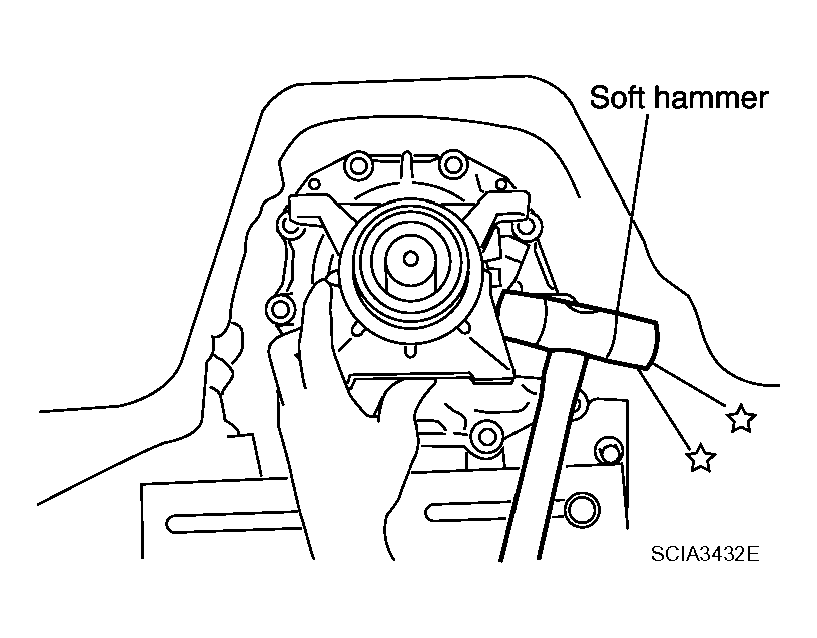

Fig 4: Tapping Rear Extension Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly from transmission case. (With needle bearing.)

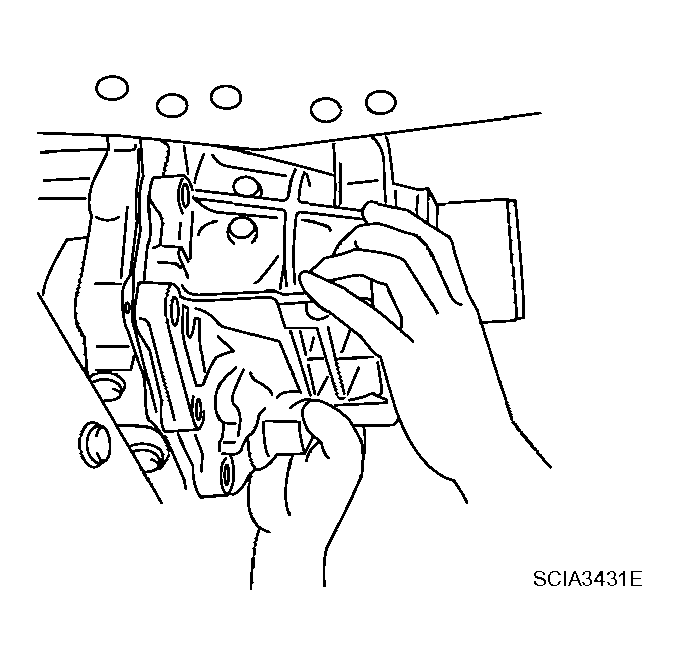

Fig 5: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing race from output shaft.

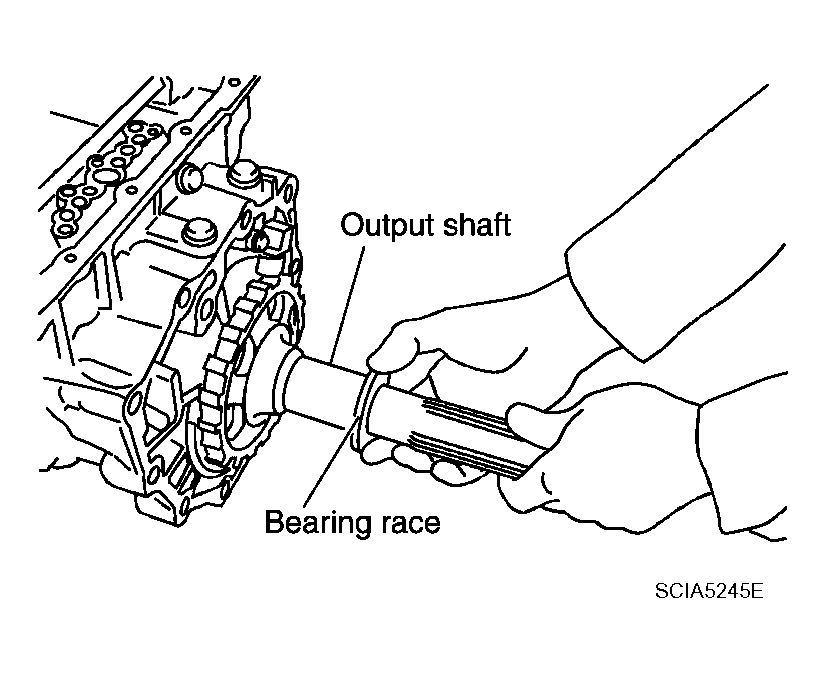

Fig 6: Removing Bearing Race From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove output shaft from transmission case by rotating left/right.

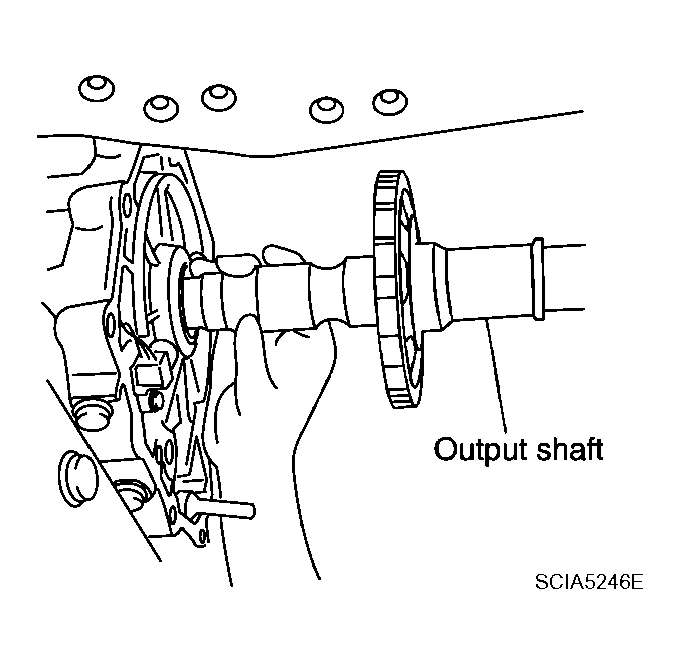

Fig 7: Removing Output Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear from output shaft.

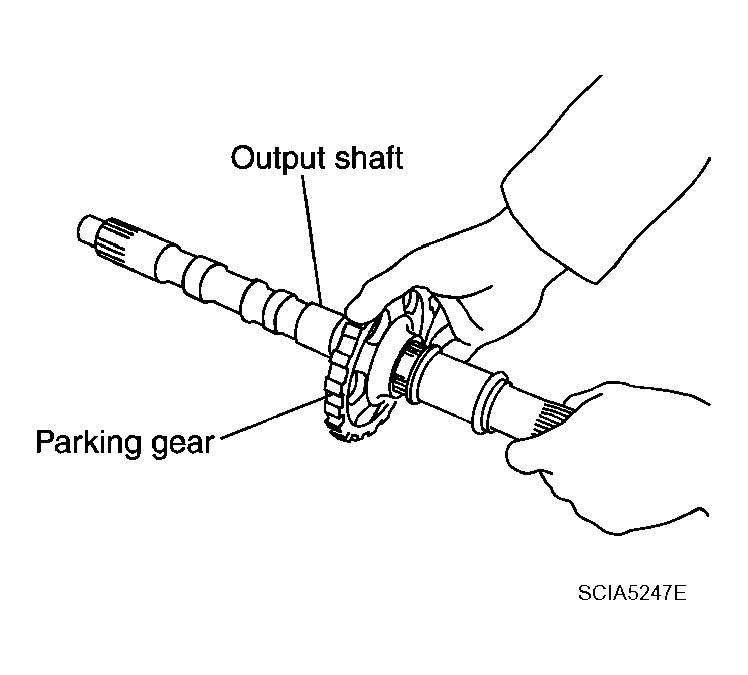

Fig 8: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from output shaft.

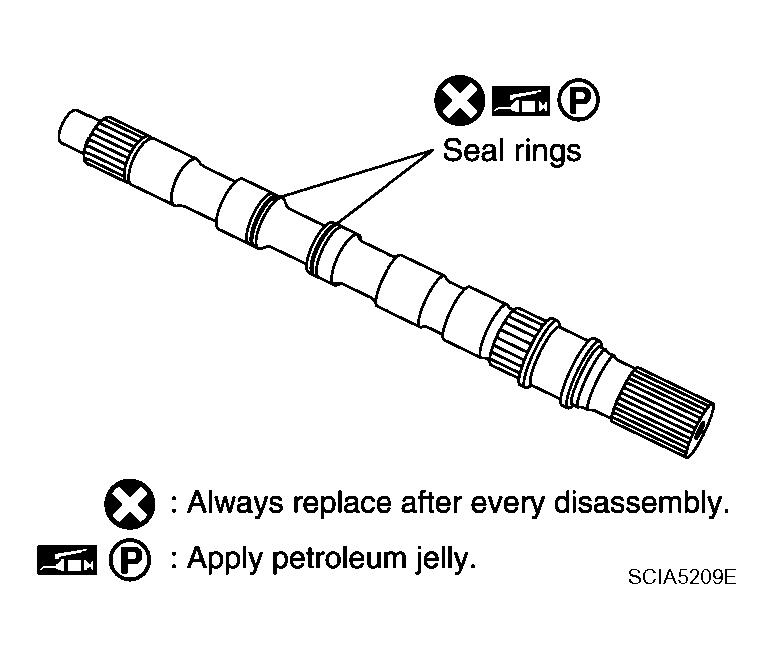

Fig 9: Identifying Seal Rings From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (1) from rear extension.

Fig 10: Removing Needle Bearing From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from rear extension.

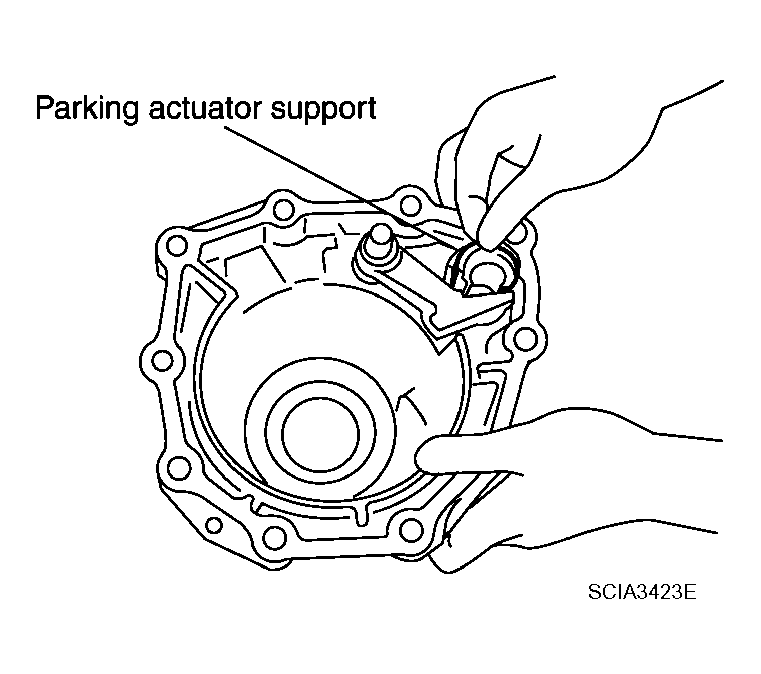

Fig 11: Identifying Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension.

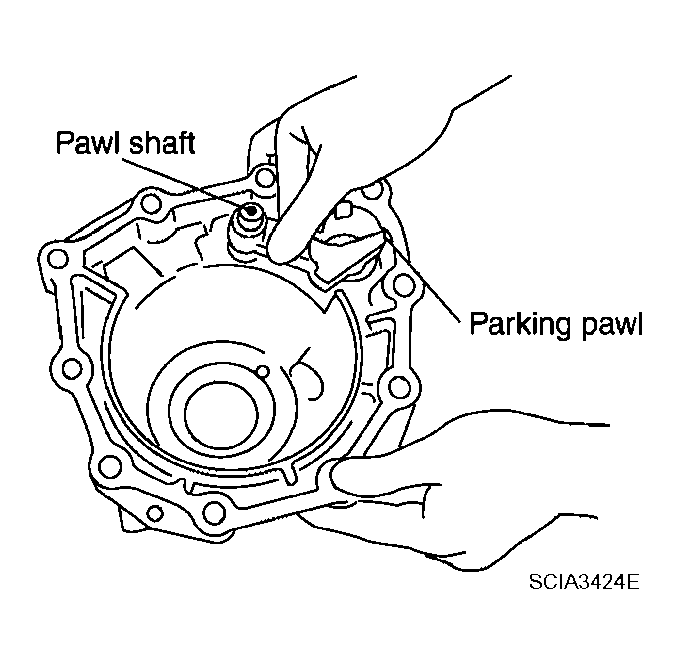

Fig 12: Removing Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring (1) from parking pawl (2).

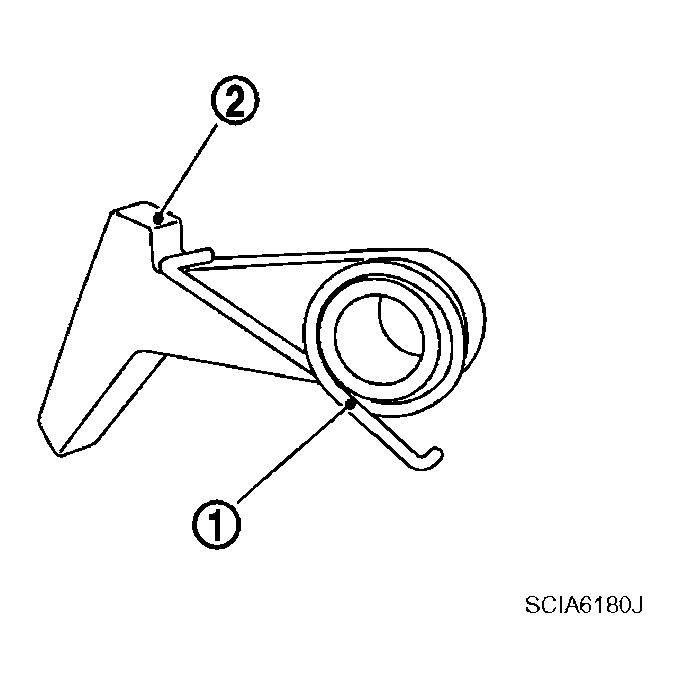

Fig 13: Identifying Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear oil seal from rear extension.
CAUTION: Be careful not to scratch rear extension.

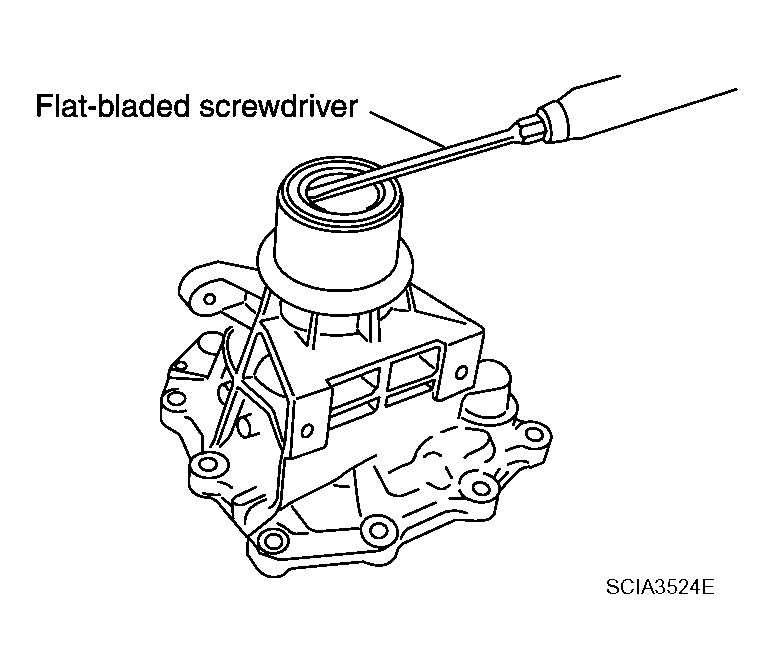

Fig 14: Identifying Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
