Parking Components (2WD Models Only): Components: Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After completing installation, check A/T position, A/T fluid leakage and A/T fluid level. Refer to "CHECKING OF A/T POSITION ", "CHECKING A/T FLUID ".

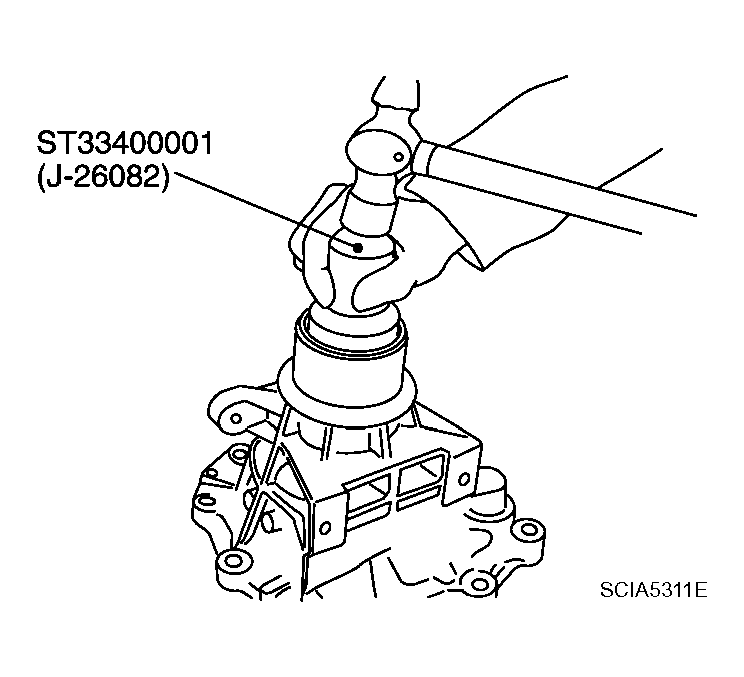

As shown in the figure, use a drift to drive rear oil seal into the rear extension until it is flush.
CAUTION:
- Do not reuse rear oil seal.
- Apply ATF to rear oil seal.
Fig 1: Installing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

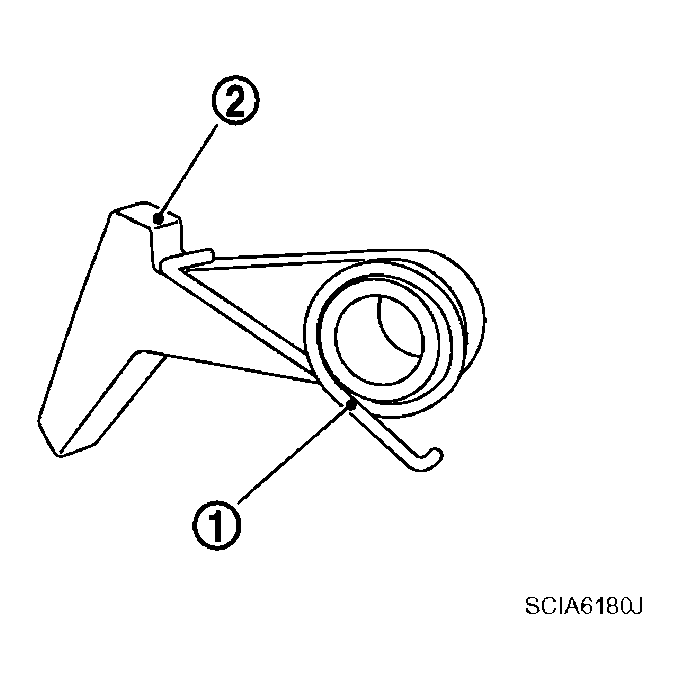

Install return spring (1) to parking pawl (2).

Fig 2: Identifying Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

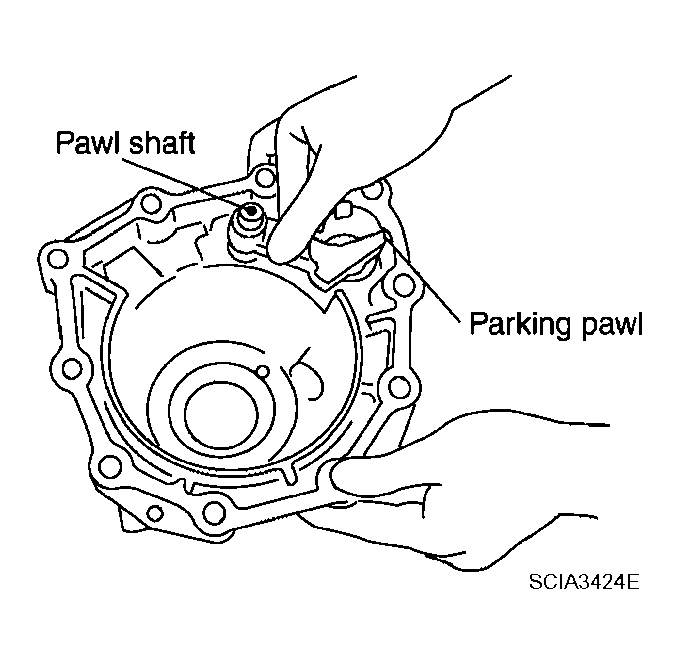

Install parking pawl (with return spring) and pawl shaft to rear extension.

Fig 3: Installing Parking Pawl And Pawl Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

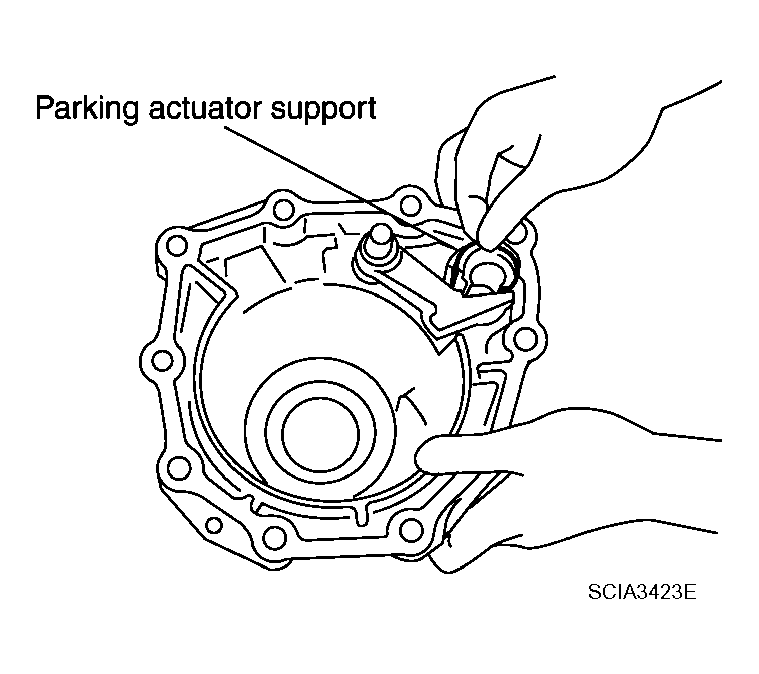

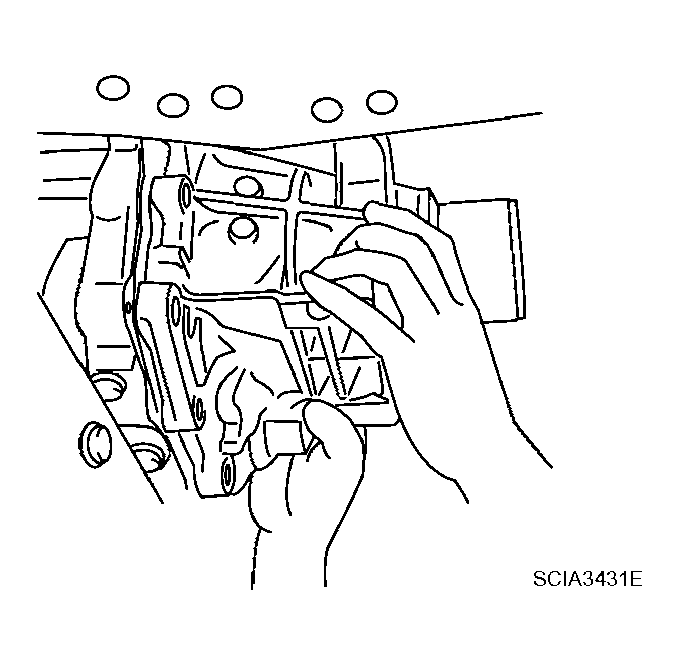

Install parking actuator support to rear extension.

Fig 4: Installing Parking Actuator Support To Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.

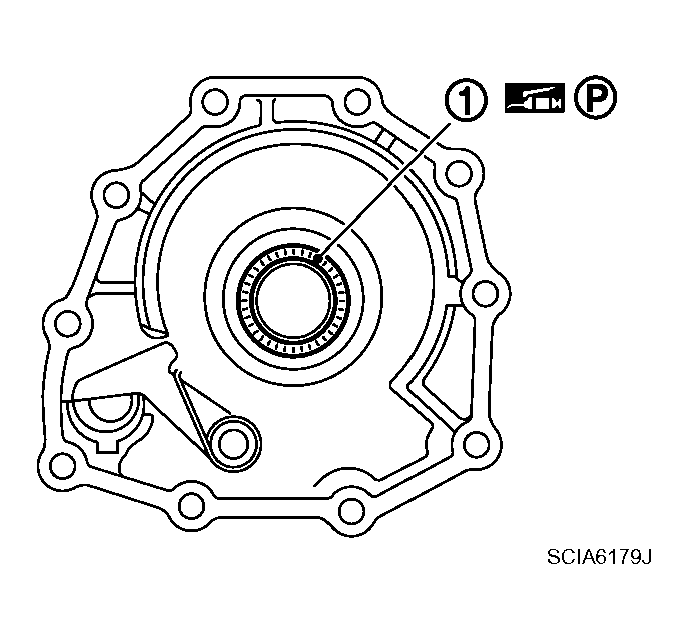

Install needle bearing (1) to rear extension.
CAUTION: Apply petroleum jelly to needle bearing (1).

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

Fig 5: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

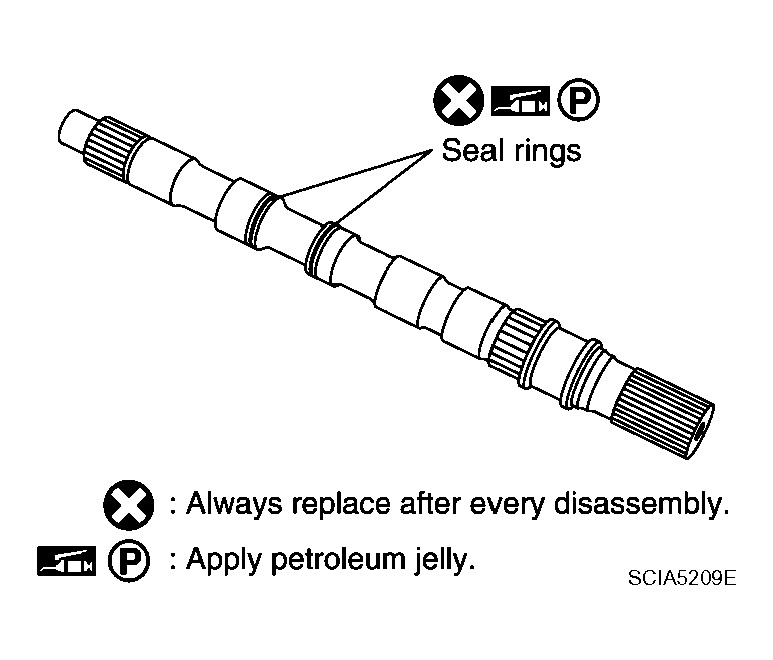

Install seal rings to output shaft.
CAUTION:
- Do not reuse seal rings.
- Apply petroleum jelly to seal rings.
Fig 6: Identifying Seal Rings To Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

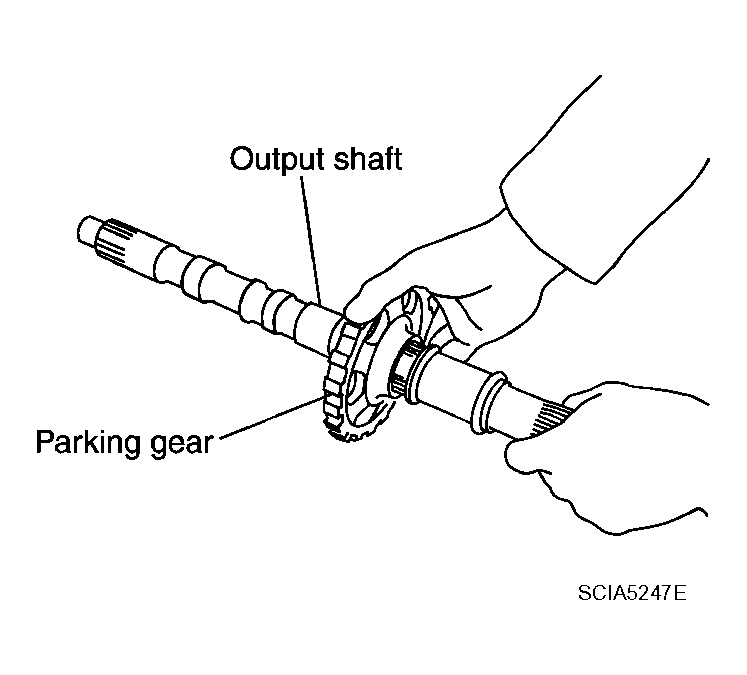

Install parking gear to output shaft.

Fig 7: Installing Parking Gear To Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

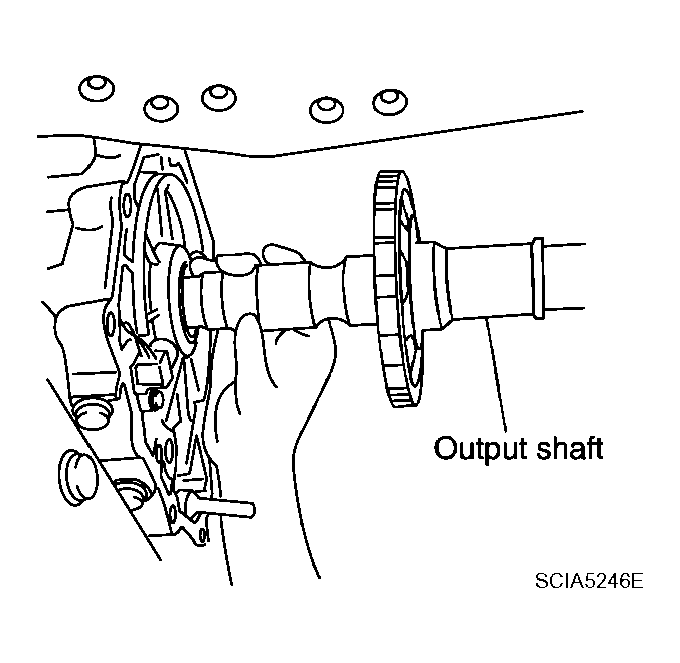

Install output shaft in transmission case.

Fig 8: Installing Output Shaft In Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

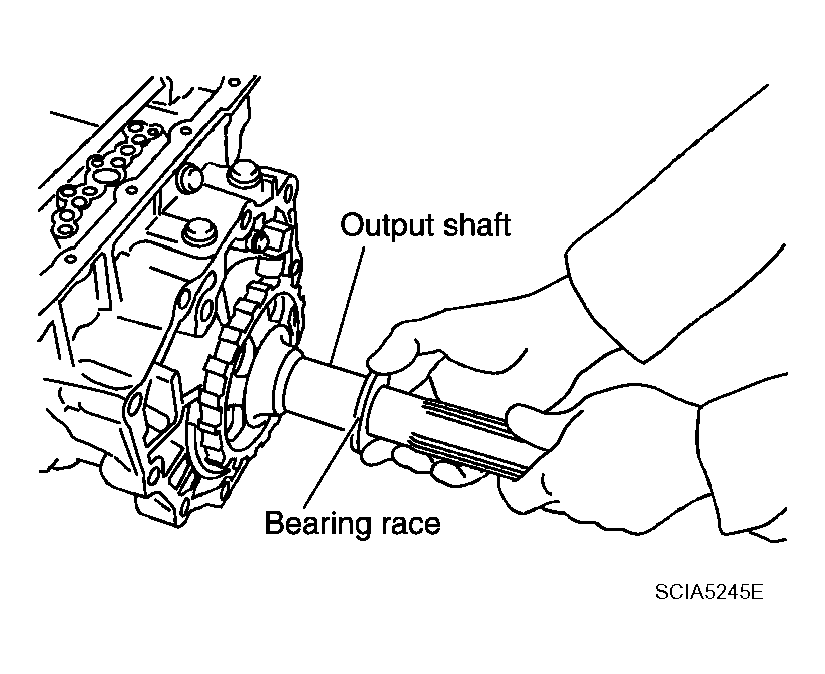

Install bearing race to output shaft.

Fig 9: Installing Bearing Race To Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

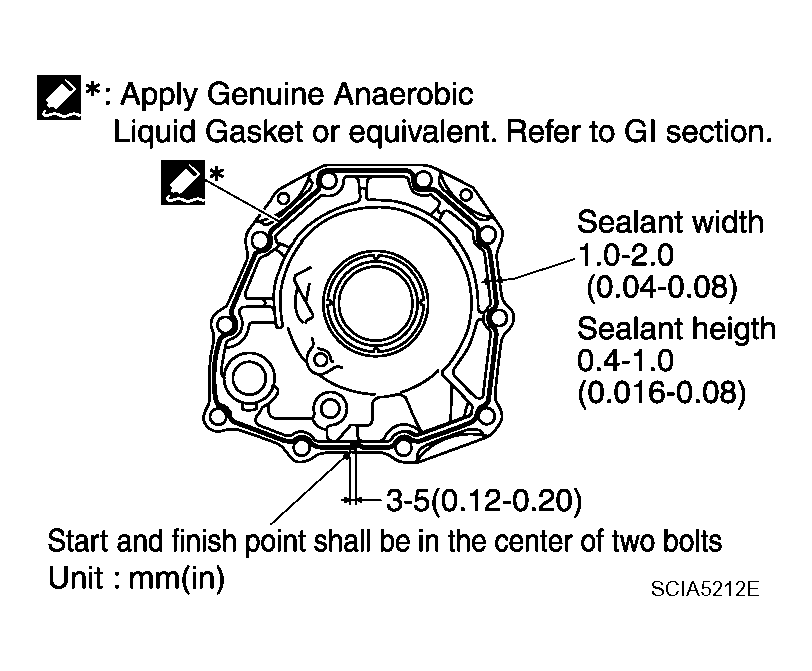

Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

For GI, go to GENERAL INFORMATION -- SEDAN .

Fig 10: Identifying Sealant On Rear Extension Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear extension assembly to transmission case. (With needle bearing.)
CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

Fig 11: Installing Rear Extension Assembly To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

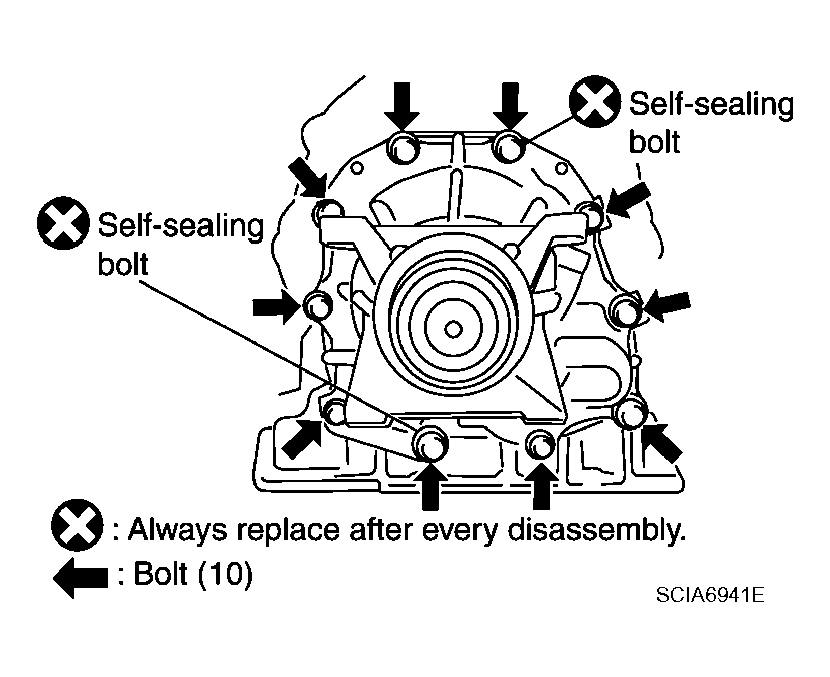

Tighten rear extension assembly mounting bolts to the specified torque. Refer to "COMPONENTS ".
CAUTION: Do not reuse self-sealing bolts.

Fig 12: Identifying Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

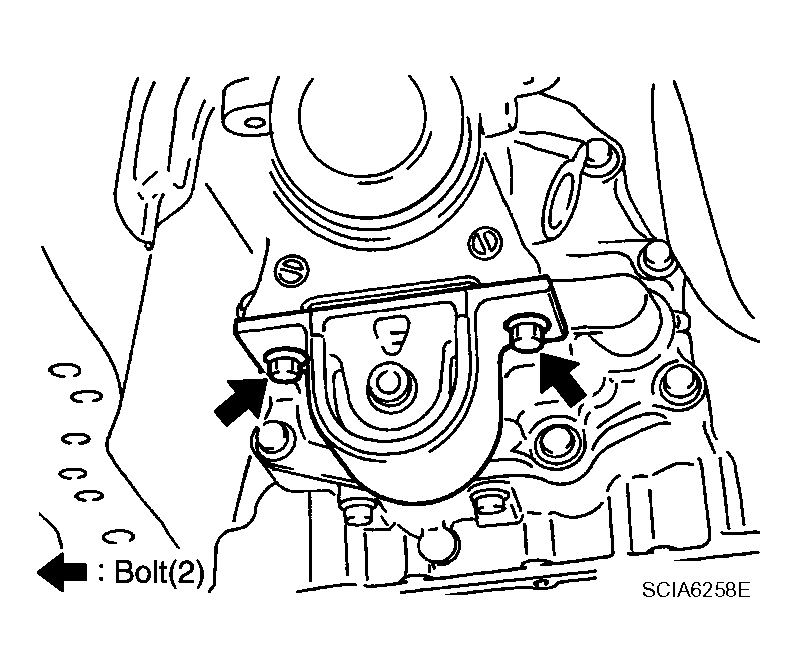

Install engine mounting insulator (rear). Refer to "REMOVAL AND INSTALLATION ".

Fig 13: Identifying Engine Mounting Insulator
Courtesy of NISSAN MOTOR CO., U.S.A.

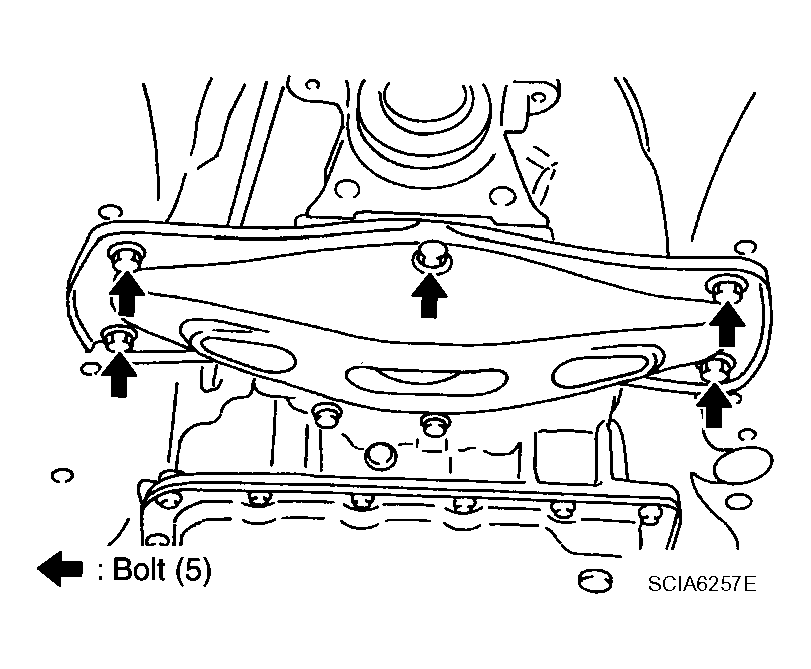

Install rear engine mounting member. Refer to "REMOVAL AND INSTALLATION ".
Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to "COMPONENTS ".
CAUTION: Do not reuse drain plug gasket.
Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".

Fig 14: Identifying Rear Engine Mounting Member
Courtesy of NISSAN MOTOR CO., U.S.A.
