Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from interlock cable.

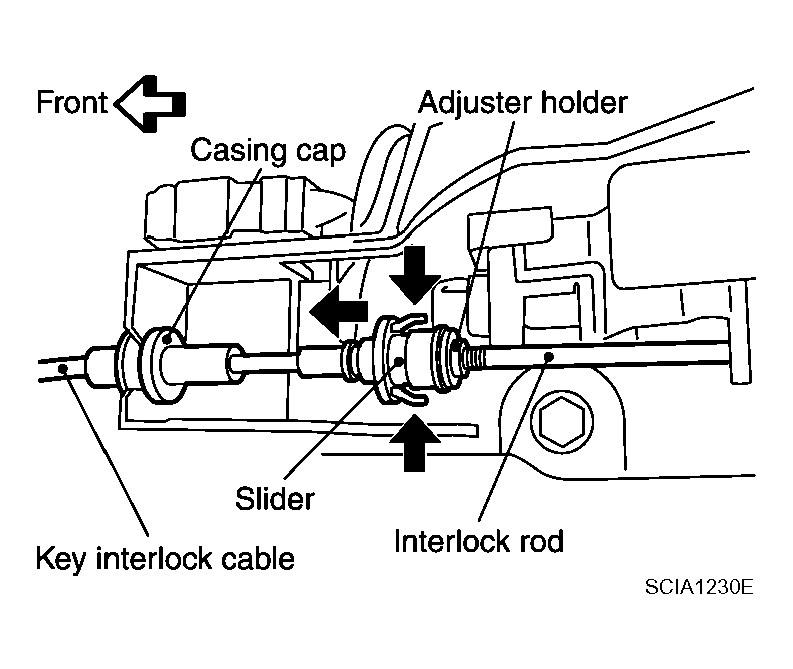

    Fig 1: Unlocking Slider
    G04120809Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

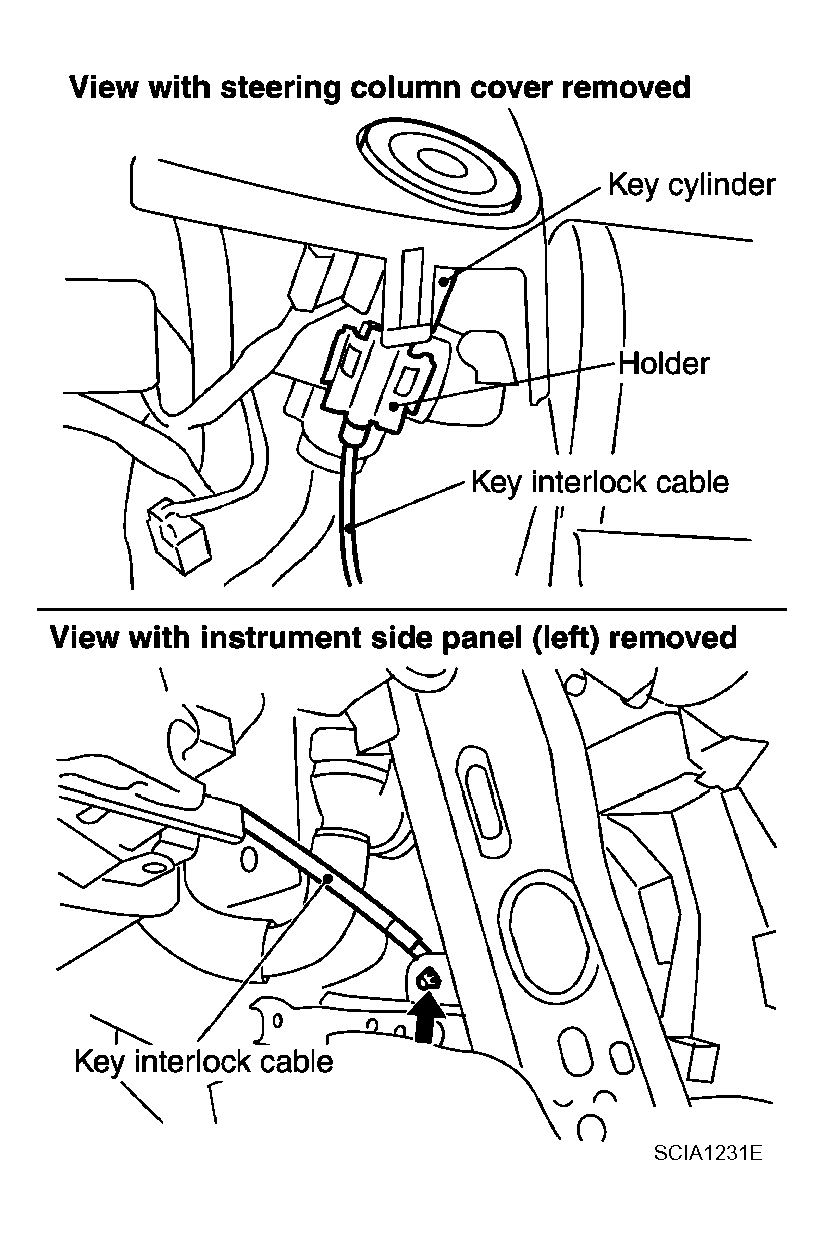

    Fig 2: Identifying Holder From Key Cylinder
    G04120810Courtesy of NISSAN MOTOR CO., U.S.A.
