Removal and Installation: Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

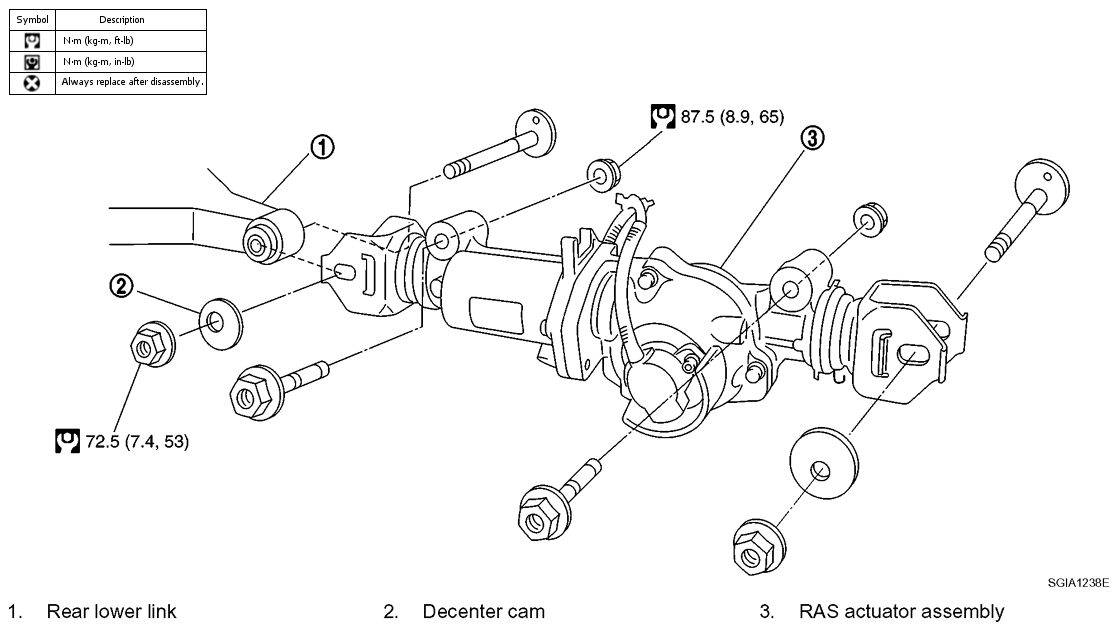

Fig 1: Rear Active Steer Replacement Components With Torque Specifications
G04181653Courtesy of NISSAN MOTOR CO., U.S.A.
