Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument side panel (RH). Refer to "(U) Instrument Side Panel (RH/LH) ".
  2. Remove instrument lower cover. Refer to "(S) Instrument Lower Cover ".
  3. Remove VDC/TCS/ABS control unit.

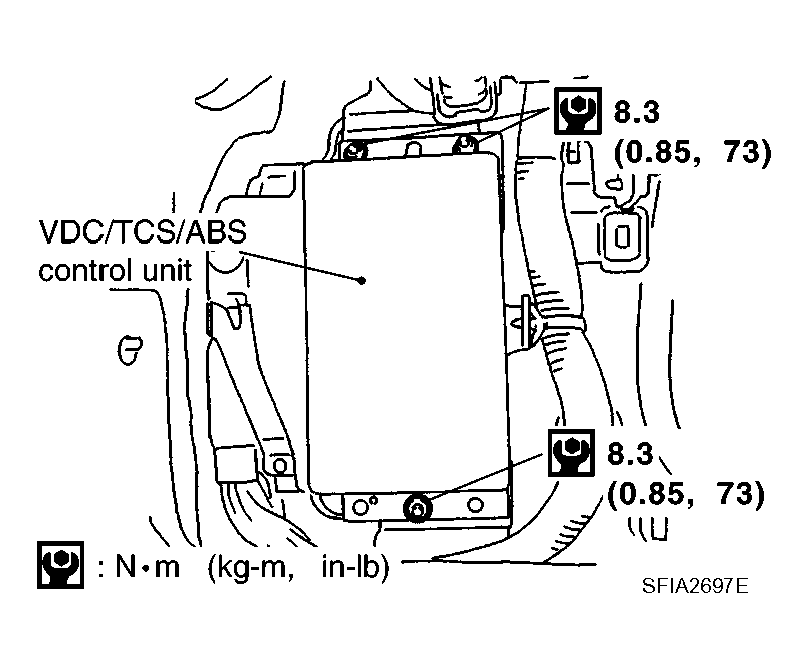

    Fig 1: VDC/TCS/ABS Control Unit With Torque Specifications
    G04181558Courtesy of NISSAN MOTOR CO., U.S.A.
