Preliminary Check (Unified Control Meter)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For meter/gauge operation and odo/trip meter segment check, see SEGMENT CHECK (UNIFIED CONTROL METER) , for power supply and ground circuit check, see POWER SUPPLY & GROUND CIRCUIT CHECK (UNIFIED CONTROL METER) and for symptom chart (unified control meter), see SYMPTOM CHART (UNIFIED CONTROL METER) .

For preliminary check, see Fig 1.

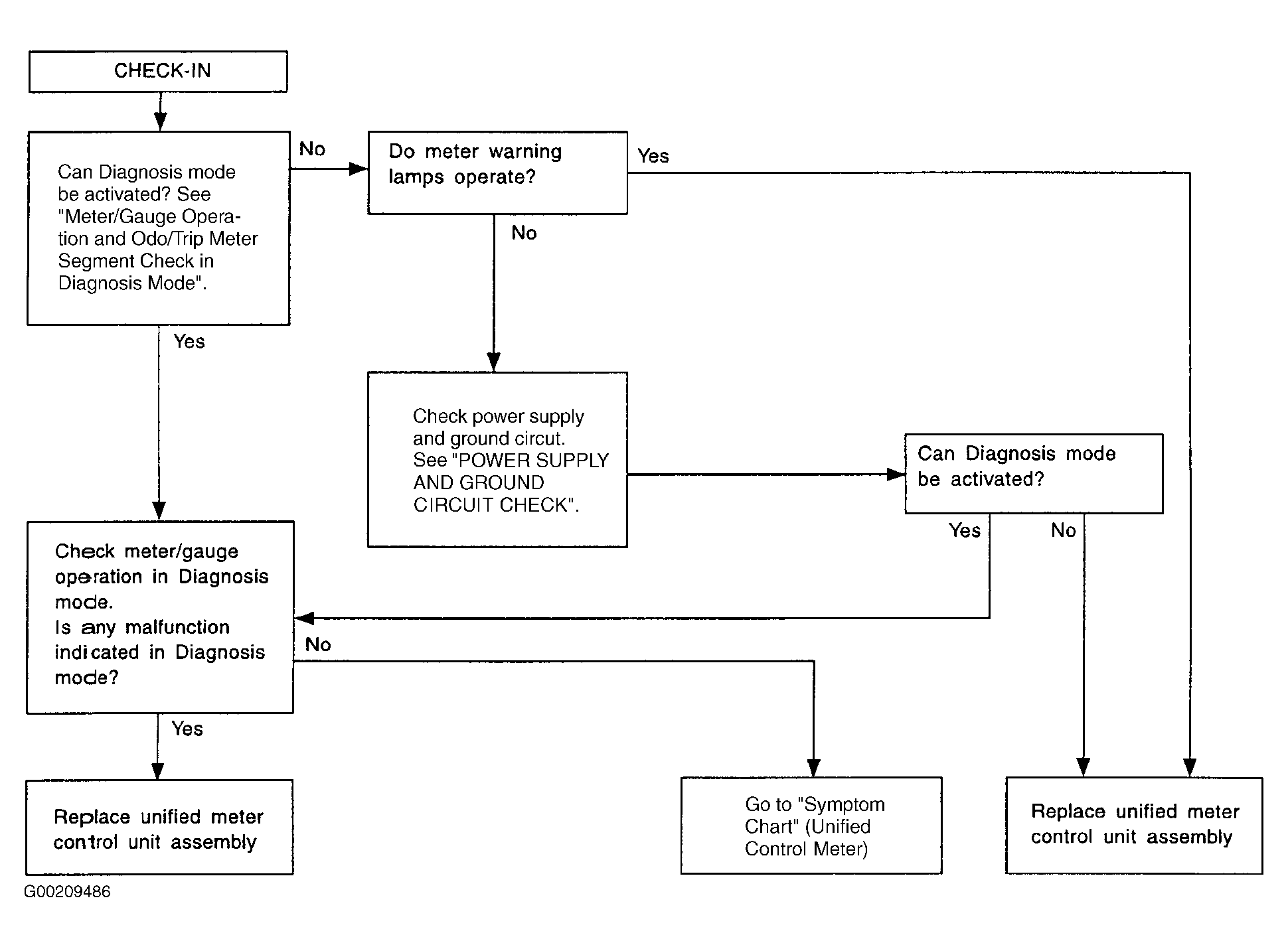

Fig 1: Identifying Preliminary Check (Unified Control Meter)

Courtesy of NISSAN MOTOR CO., U.S.A.
