Diagnostic Procedure 2 (Key Switch Insert Signal Tests)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure 2 (key switch insert signal tests), see Fig 1 and Fig 2 .

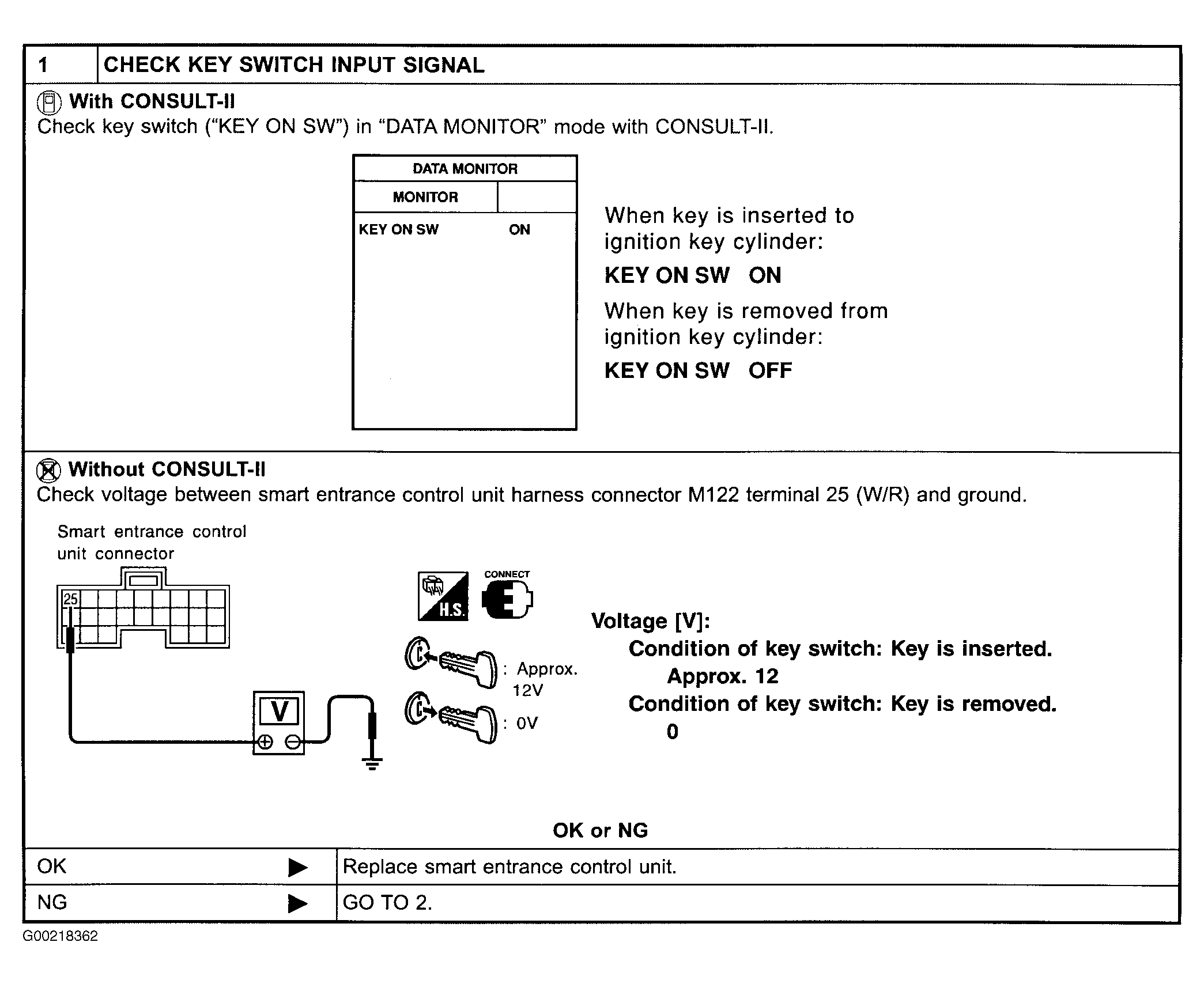

Fig 1: Identifying Diagnostic Procedure 2 (Key Switch Insert Signal Tests), Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

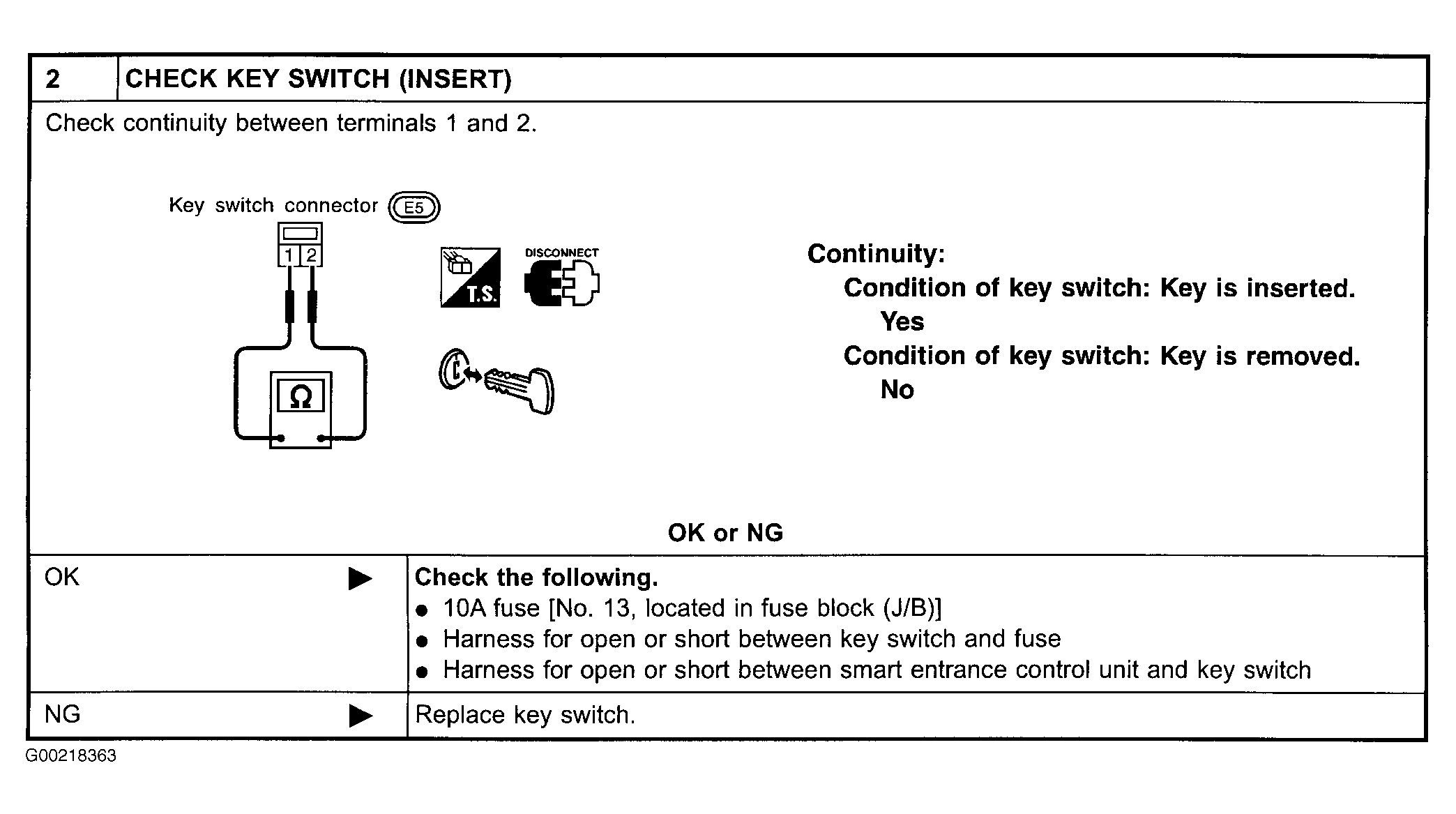

Fig 2: Identifying Diagnostic Procedure 2 (Key Switch Insert Signal Tests), Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
