Seatback Assembly: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
  1. Remove the front seat assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the seatback board from the back of the seatback.

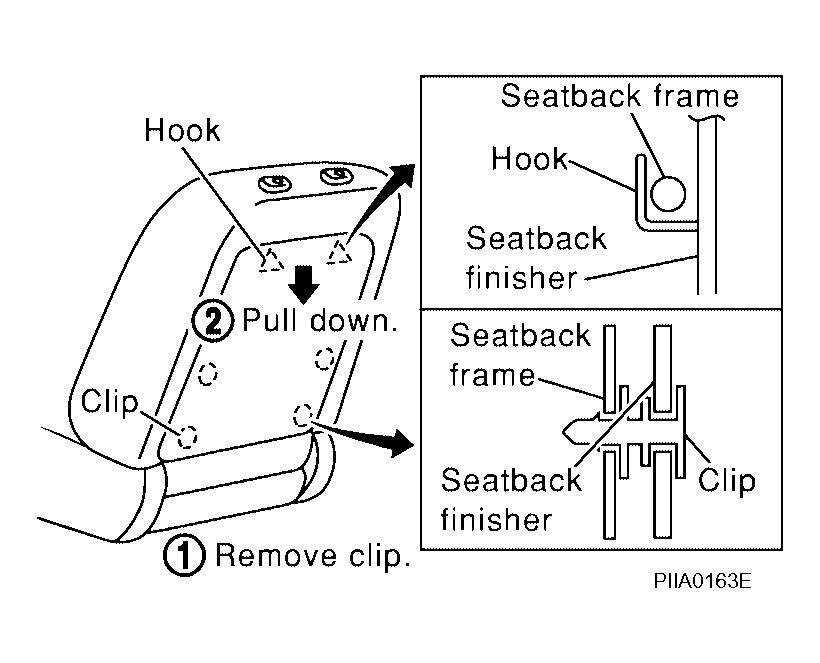

    Fig 1: Removing Seatback Board From Back Of Seatback
    G04176354Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the retainer.

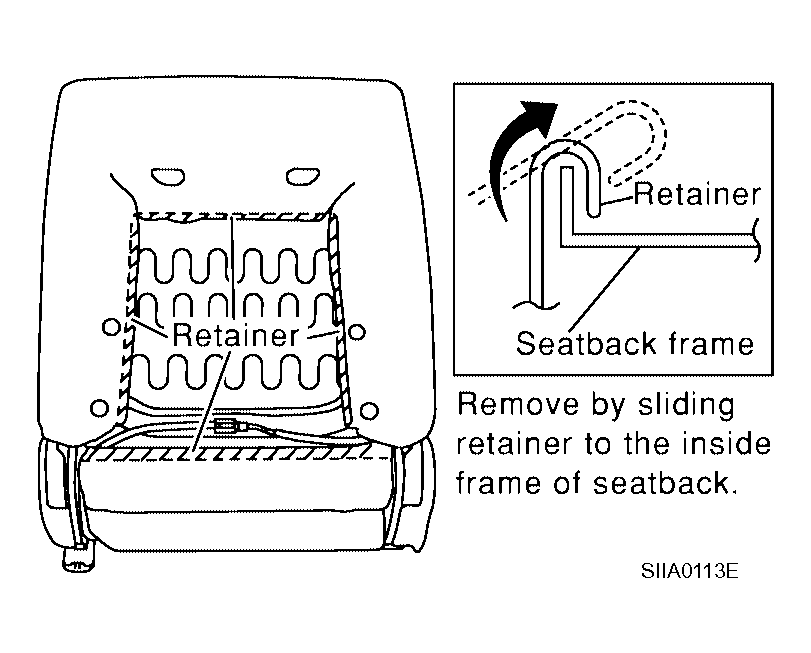

    Fig 2: Identifying Retainer
    G04176355Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect the seatback heater harness.
  5. Remove the seatback bolts (2 for each side) and seatback assembly.
