Entry Operation

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

When the seat is in the exiting positions, the following operation moves the seat to the previous position before the exiting operation.

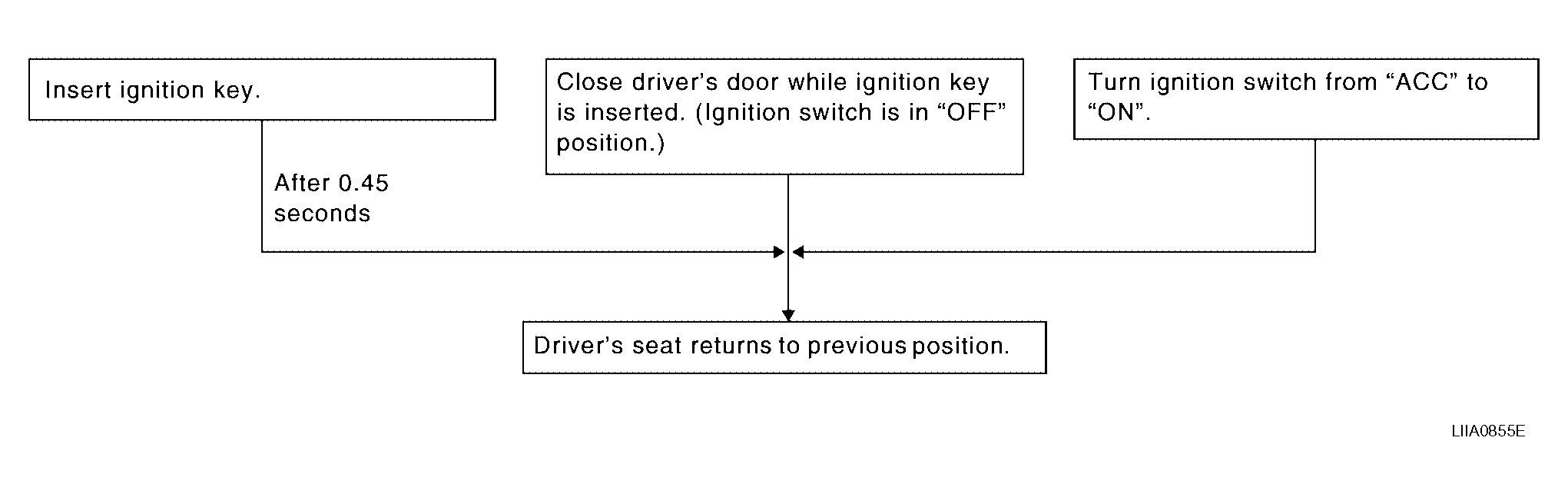

Fig 1: Entry Operation Flow Chart
G04176210Courtesy of NISSAN MOTOR CO., U.S.A.
