Mirror Motor RH Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR RH MECHANISM

    Check the following items.

    Operation malfunction caused by a foreign object caught in door mirror face edge.

    OK or NG

    OK : GO TO 2.

    NG : Repair or replace the malfunctioning parts, and check the symptom again.

  2. CHECK FUNCTION

    With CONSULT-II

    Check the operation with "MIRROR MOTOR RH" in the ACTIVE TEST.

    TEST ITEM DESCRIPTION

    Test item Description
    MIRROR MOTOR RH The mirror motor RH moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    OK : Mirror motor RH circuit is OK.

    NG : GO TO 3.

    Fig 1: CONSULT-II Screen Display - Active Test
    G04176258Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror RH connector.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and door mirror RH connector D107 terminals 2, 3, 8.

      14 - 3 : Continuity should exist.

      15 - 2 : Continuity should exist.

      30 - 8 : Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and ground.

      14 - Ground : Continuity should not exist.

      15 - Ground : Continuity should not exist.

      30 - Ground : Continuity should not exist.

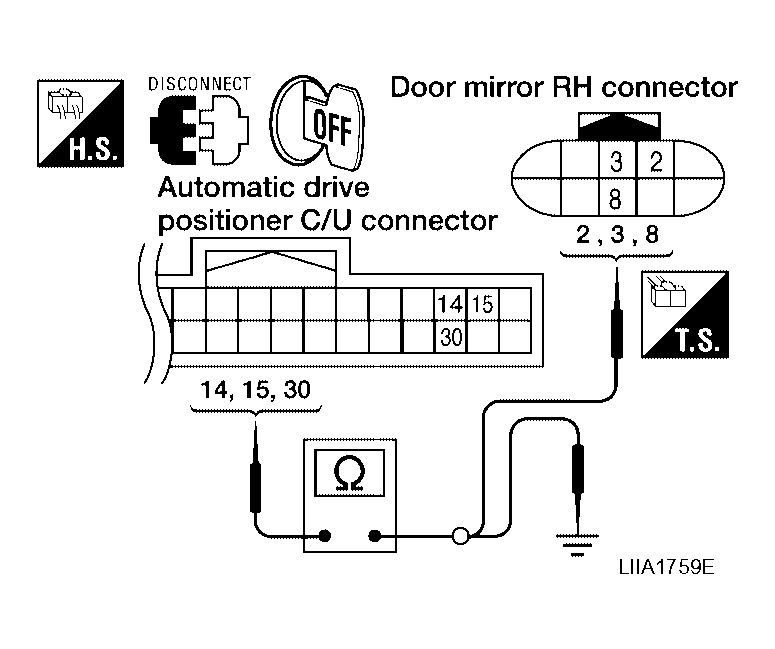

    Fig 2: Checking Door Mirror RH Circuit Harness Continuity
    G04176259Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO 4.

    NG : Repair or replace harness.

  4. CHECK MIRROR MOTOR SIGNAL
    1. Connect automatic drive positioner control unit.
    2. Turn ignition switch to ACC.
    3. Check voltage between door mirror RH connector and ground.
    MIRROR MOTOR SIGNAL

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    D107 3 Ground Mirror motor is operated UP 1.5 -> Battery voltage
    Other than above 0
    2 Mirror motor is operated LEFT 1.5 -> Battery voltage
    Other than above 0
    8 Mirror motor is operated DOWN or RIGHT 1.5 -> Battery voltage
    Other than above 0

    OK or NG

    OK : Replace door mirror motor RH. Refer to "DOOR MIRROR ".

    NG : Replace automatic drive positioner control unit.

    Fig 3: Checking Voltage Between Door Mirror RH Connector And Ground
    G04176260Courtesy of NISSAN MOTOR CO., U.S.A.
