Door Mirror Remote Control Switch (Mirror Switch) Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL

    With CONSULT-II

    Check the operation on "MIR CON SW-UP/DN" and "MIR CON SW-RH/LH" in the DATA MONITOR.

    MONITOR ITEM CONTENTS

    Monitor item [OPERATION or UNIT] Contents
    MIR CON SW-UP "ON/OFF" ON/OFF status judged from the mirror switch (UP) signal is displayed.
    MIR CON SW-DN "ON/OFF" ON/OFF status judged from the mirror switch (DOWN) signal is displayed.
    MIR CON SW-RH "ON/OFF" ON/OFF status judged from the mirror switch (RIGHT) signal is displayed.
    MIR CON SW-LH "ON/OFF" ON/OFF status judged from the mirror switch (LEFT) signal is displayed.
    Fig 1: CONSULT-II Screen Display - Data Monitor
    G04176314Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch to ACC.
    2. Check voltage between automatic drive positioner control unit connector and ground.
    AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    M33 3 Ground Mirror switch UP operation 0
    Other than above 5
    4 Mirror switch LEFT operation 0
    Other than above 5
    19 Mirror switch DOWN operation 0
    Other than above 5
    20 Mirror switch RIGHT operation 0
    Other than above 5

    OK or NG

    OK : Door mirror remote control switch (mirror switch) circuit is OK.

    NG : GO TO 2.

    Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
    G04176315Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and door mirror remote control switch connector M159 terminals 4, 5, 6, 14.

      3 - 6 : Continuity should exist.

      4 - 5 : Continuity should exist.

      19 - 14 : Continuity should exist.

      20 - 4 : Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and ground.

      3 - Ground : Continuity should not exist.

      4 - Ground : Continuity should not exist.

      19 - Ground : Continuity should not exist.

      20 - Ground : Continuity should not exist.

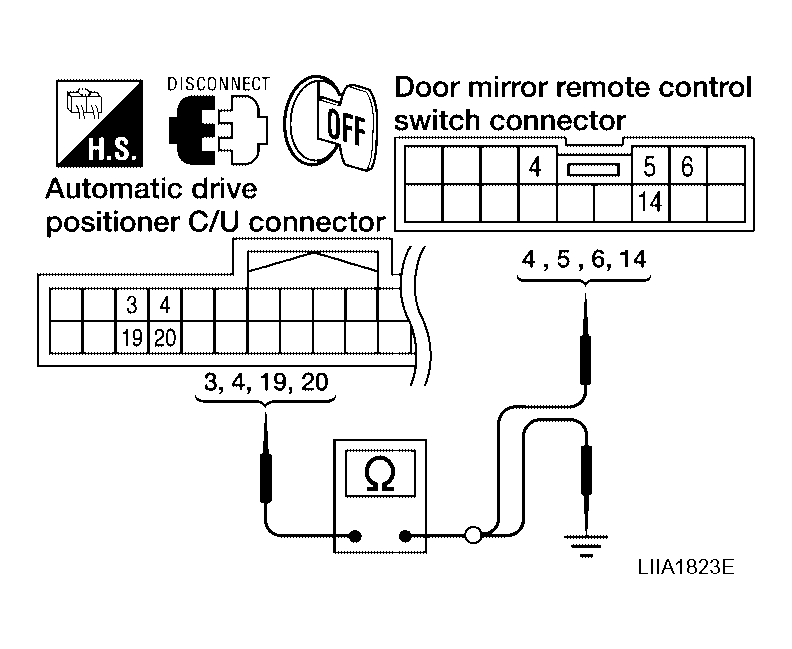

    Fig 3: Checking Harness Continuity
    G04176316Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO 3.

    NG : Repair or replace harness.

  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)

    Check continuity between door mirror remote control switch as follows.

    TERMINAL CONTINUITY

    Terminals Switch condition Continuity
    4 13 Mirror switch RIGHT operation Yes
    Other than above No
    5 Mirror switch LEFT operation Yes
    Other than above No
    6 Mirror switch UP operation Yes
    Other than above No
    14 Mirror switch DOWN operation Yes
    Other than above No
    Fig 4: Checking Continuity Between Door Mirror Remote Control Switch Terminals
    G04176317Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Replace automatic drive positioner control unit.

    NG : Replace door mirror remote control switch.
