Door Mirror Remote Control Switch (Changeover Switch) Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the DATA MONITOR.

    MONITOR ITEM CONTENTS

    Monitor item [OPERATION or UNIT] Contents
    MIR CHNG SW-R "ON/OFF" ON/OFF status judged from the changeover switch (switching to RIGHT) signal is displayed.
    MIR CHNG SW-L "ON/OFF" ON/OFF status judged from the changeover switch (switching to LEFT) signal is displayed.
    Fig 1: CONSULT-II Screen Display - Data Monitor
    G04176310Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch to ACC.
    2. Check voltage between automatic drive positioner control unit connector and ground.
    AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    M33 2 Ground Changeover switch RIGHT position 0
    Other than above 5
    18 Changeover switch LEFT position 0
    Other than above 5
    Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
    G04176311Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Door mirror remote control switch (changeover switch) is OK.

    NG : GO TO 2.

  2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and door mirror remote control switch connector M159 terminals 2, 3.

      2 - 3 : Continuity should exist.

      18 - 2 : Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and ground.

      2 - Ground : Continuity should not exist.

      18 - Ground : Continuity should not exist.

    OK or NG

    OK : GO TO 3.

    NG : Repair or replace harness.

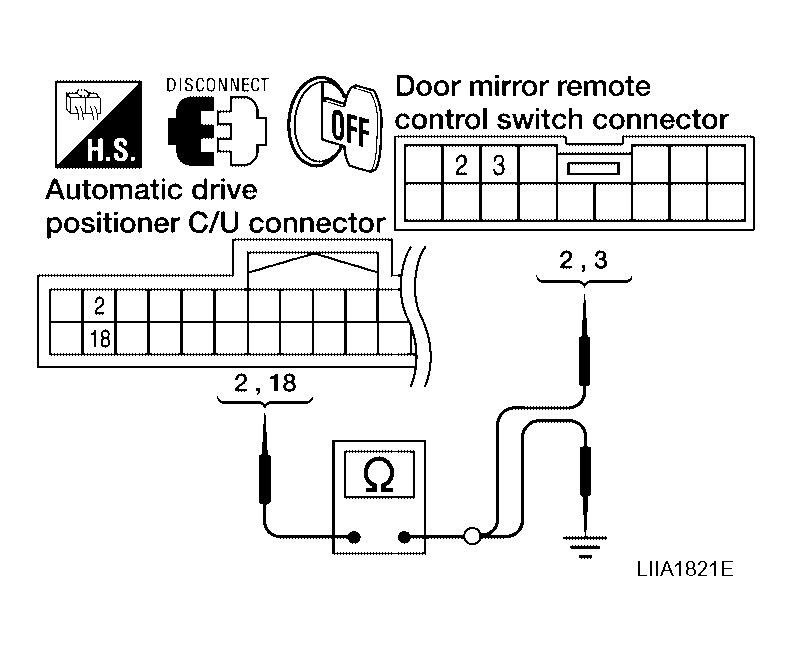

    Fig 3: Checking Door Mirror Remote Control Switch Circuit Harness Continuity
    G04176312Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

    Check continuity between door mirror remote control switch as follows.

    DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

    Terminals Condition Continuity
    3 13 Changeover switch RIGHT position Yes
    Other than above No
    2 Changeover switch LEFT position Yes
    Other than above No
    Fig 4: Checking Continuity Between Door Mirror Remote Control Switch
    G04176313Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Replace automatic drive positioner control unit.

    NG : Replace door mirror remote control switch.
