Transfer Fluid: Replacement: Filling

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filler plug and gasket.
  2. Fill the transfer with new fluid until the fluid level reaches the specified limit near the filler plug hole.

    Fluid grade:

    Refer to "FLUIDS AND LUBRICANTS ".

    Fluid capacity:

    Refer to "FLUIDS AND LUBRICANTS ".

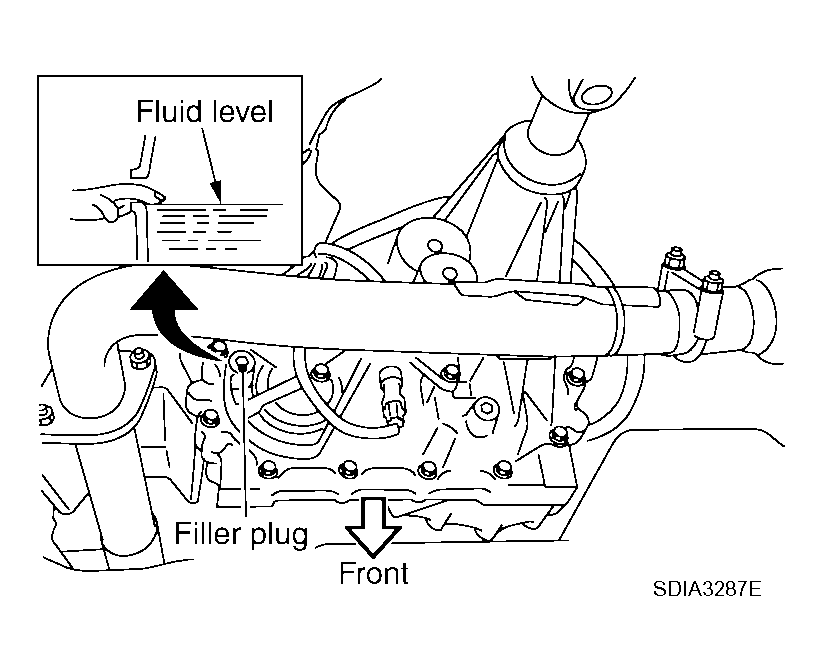

    Fig 1: Identifying Fluid Level And Filler Plug
    G04174785Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Carefully fill fluid. (Fill up for approx. 3 minutes.)
  3. Leave the vehicle for 3 minutes, and check fluid level again.
  4. Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to , "COMPONENTS ".
    CAUTION: Do not reuse gasket.
