Rear Case

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear case bolts.

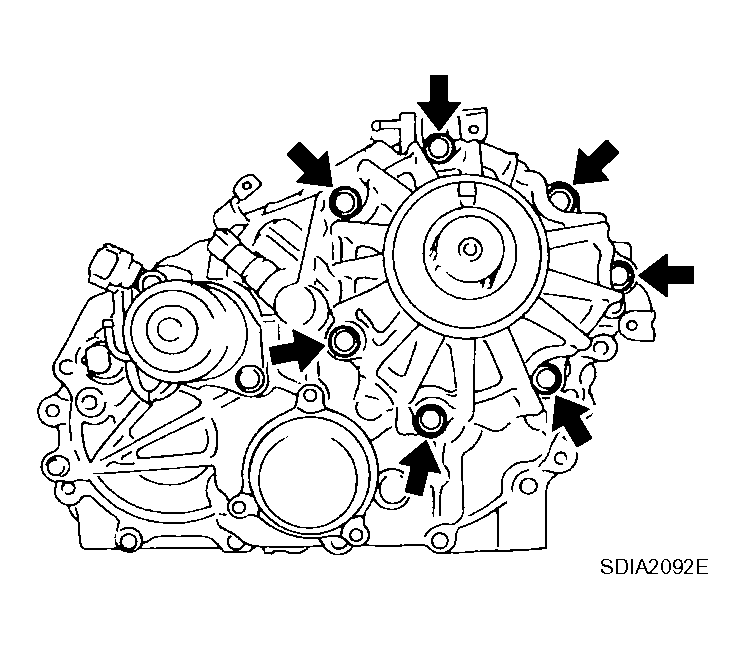

    Fig 1: Identifying Rear Case Bolts
    G04174602Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the rear case from the center case.
    Fig 2: Removing Rear Case From Center Case
    G04174603Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dust cover using suitable tool.
    Fig 3: Removing Dust Cover Using Suitable Tool
    G04174604Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the rear oil seal using suitable tool.
    CAUTION: Do not damage rear case.
    Fig 4: Removing Rear Oil Seal Using Suitable Tool
    G04174605Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the breather tube.
