Removal and Installation

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

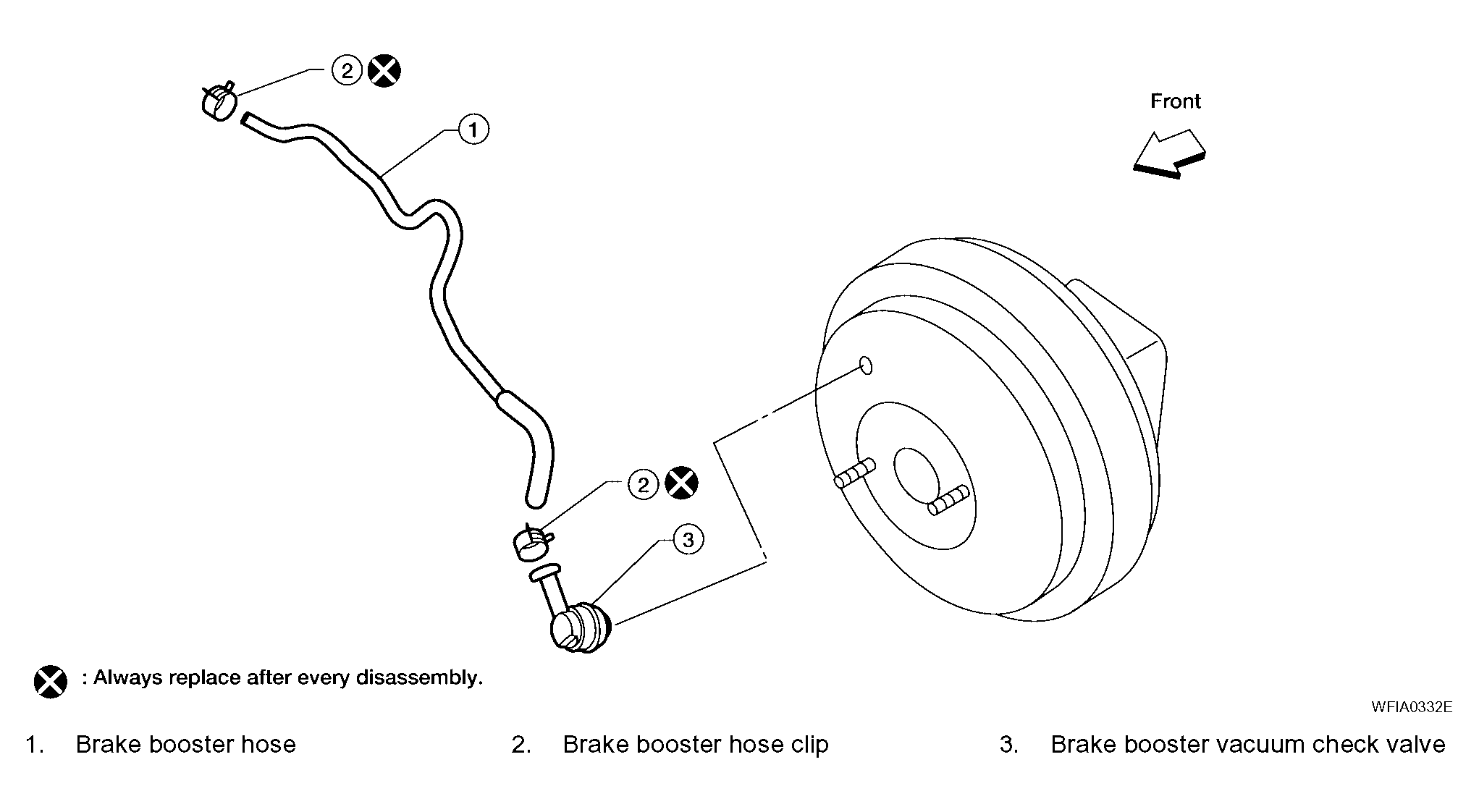

Fig 1: Identifying Components Of Brake Booster Vacuum Hose

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect brake booster hose from hose clip mounted on bracket.
Release clips and disconnect brake booster hose.
Remove check valve from brake booster.
Installation is in the reverse order of removal.

CAUTION:

Insert vacuum hose for at least 24 mm (0.94 in).
Do not use lubricating oil during assembly.

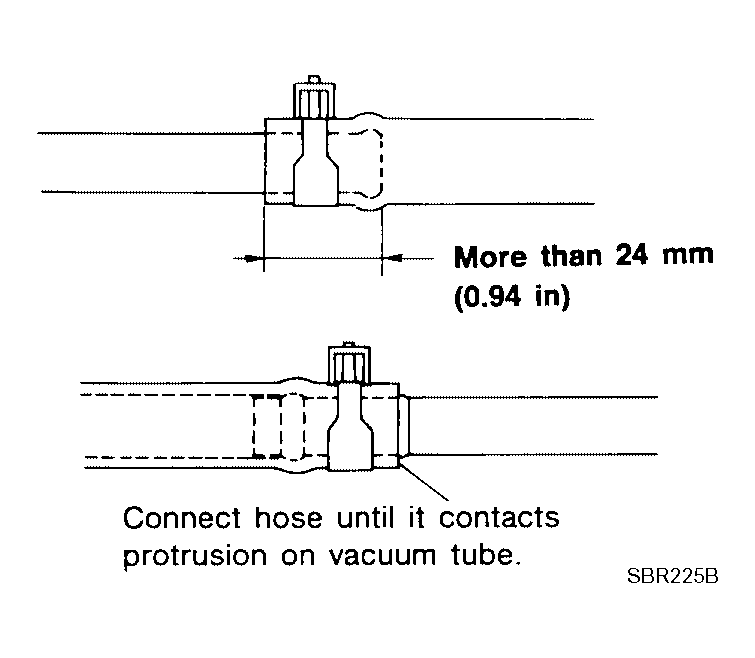

Fig 2: Disconnecting Brake Booster Hose From Hose

Courtesy of NISSAN MOTOR CO., U.S.A.
