Disassembly and Assembly of Brake Caliper: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pads from cylinder body.
  2. Remove sliding sleeve and boot from cylinder body.
  3. Place a wooden block as shown, and blow air from union bolt mounting hole to remove piston and piston boot.
    CAUTION: Do not get your fingers caught in piston.

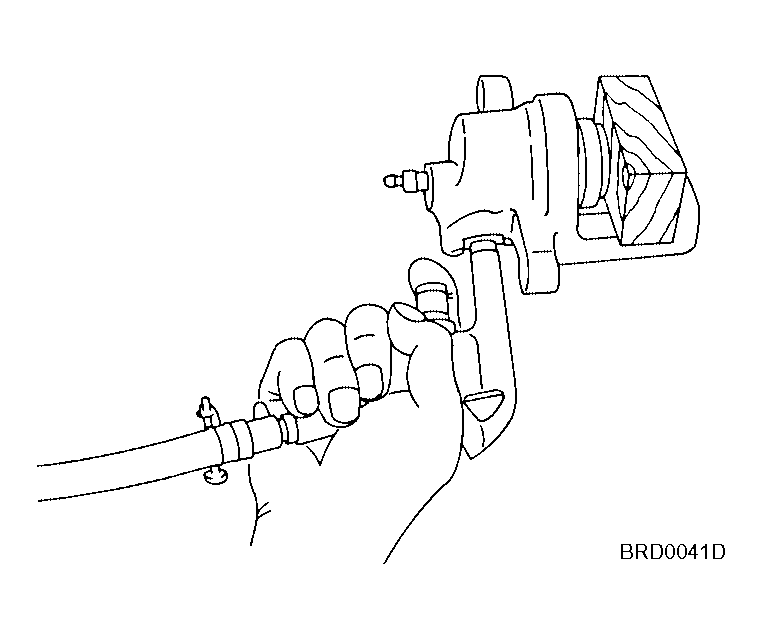

    Fig 1: Blowing Air From Union Bolt
    G04175468Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a suitable tool, remove piston seal from cylinder body.
CAUTION: Be careful not to damage cylinder inner wall.

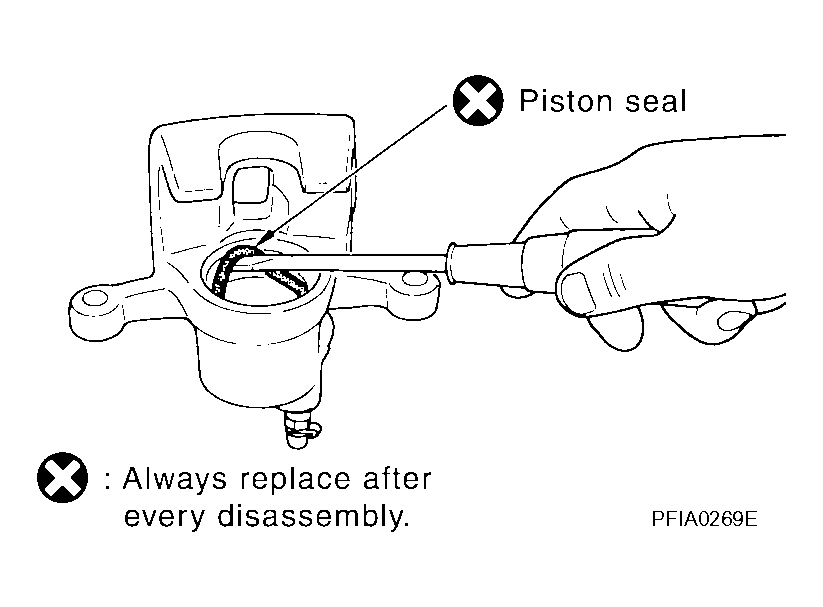

Fig 2: Removing Piston Seal From Cylinder Body
G04175469Courtesy of NISSAN MOTOR CO., U.S.A.
