Refrigerant Lines: Components

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

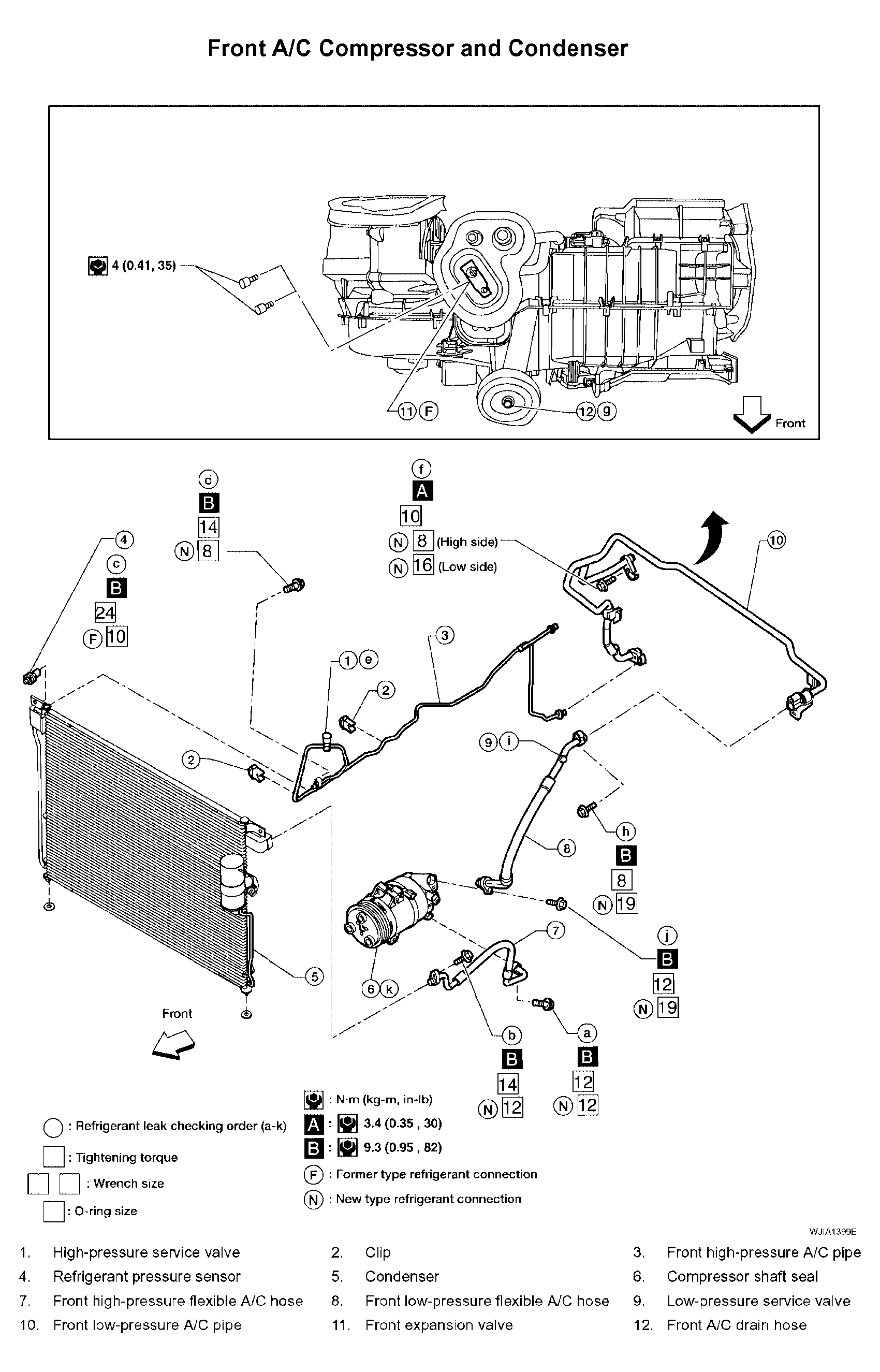

Fig 1: Identifying Front A/C Compressor And Condenser

Courtesy of NISSAN MOTOR CO., U.S.A.

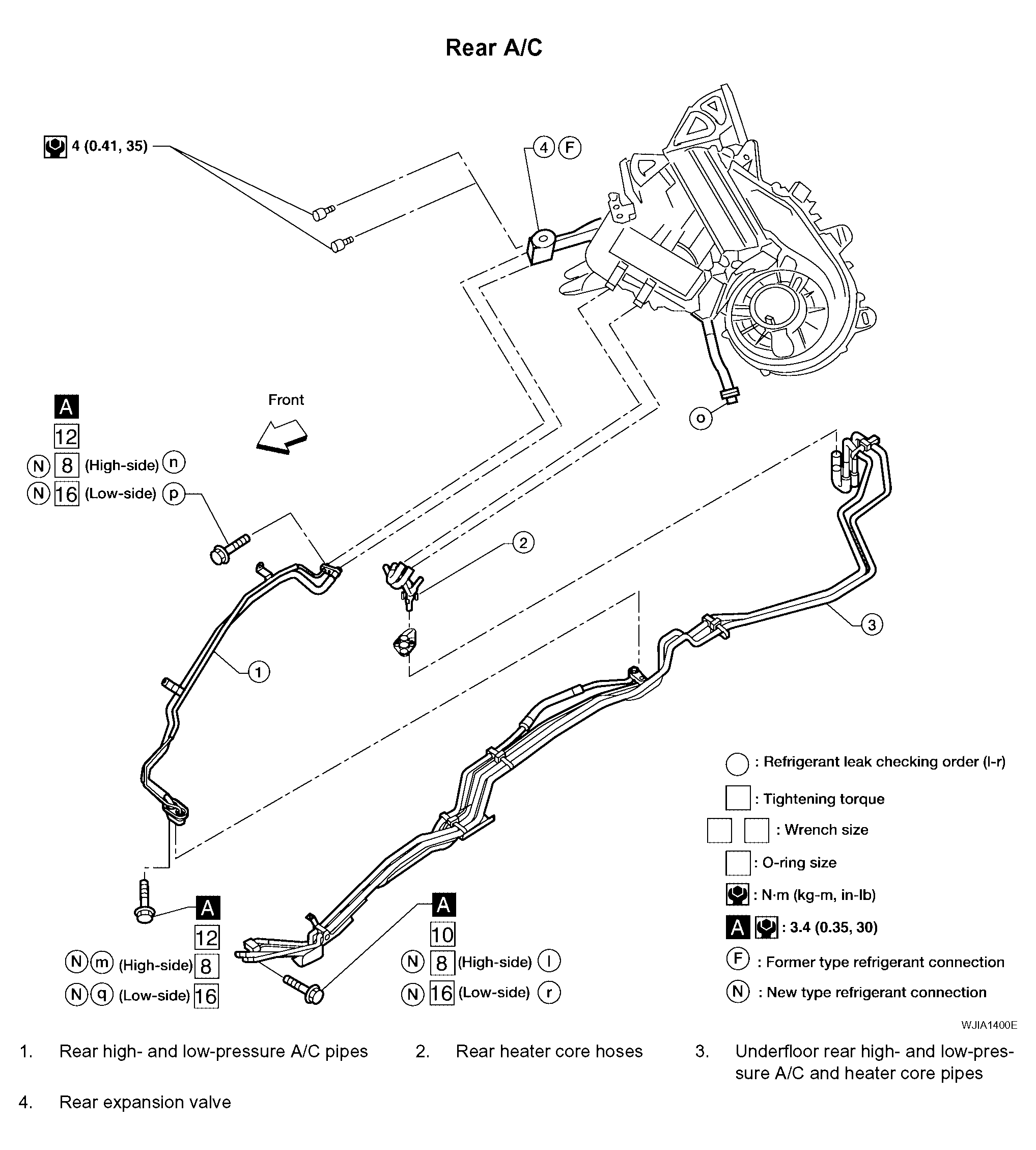

Fig 2: Evacuating System And Charging Refrigerant Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".
