Removal Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

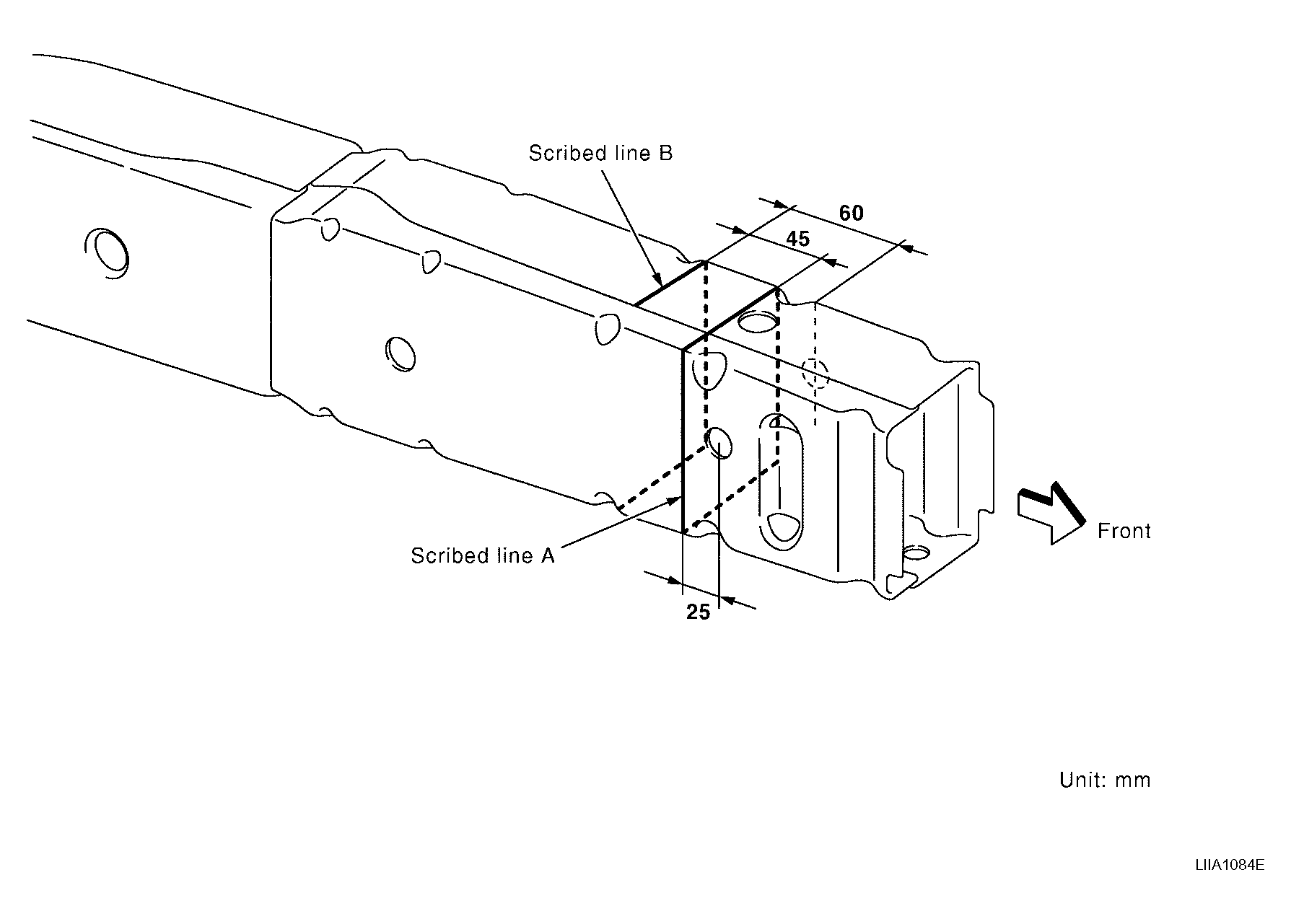

Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center as shown in the figure.

Fig 1: Scribing Straight Line On Outer Side Rail Crush Horn & Inner Side Rail Crush Horn
Courtesy of NISSAN MOTOR CO., U.S.A.

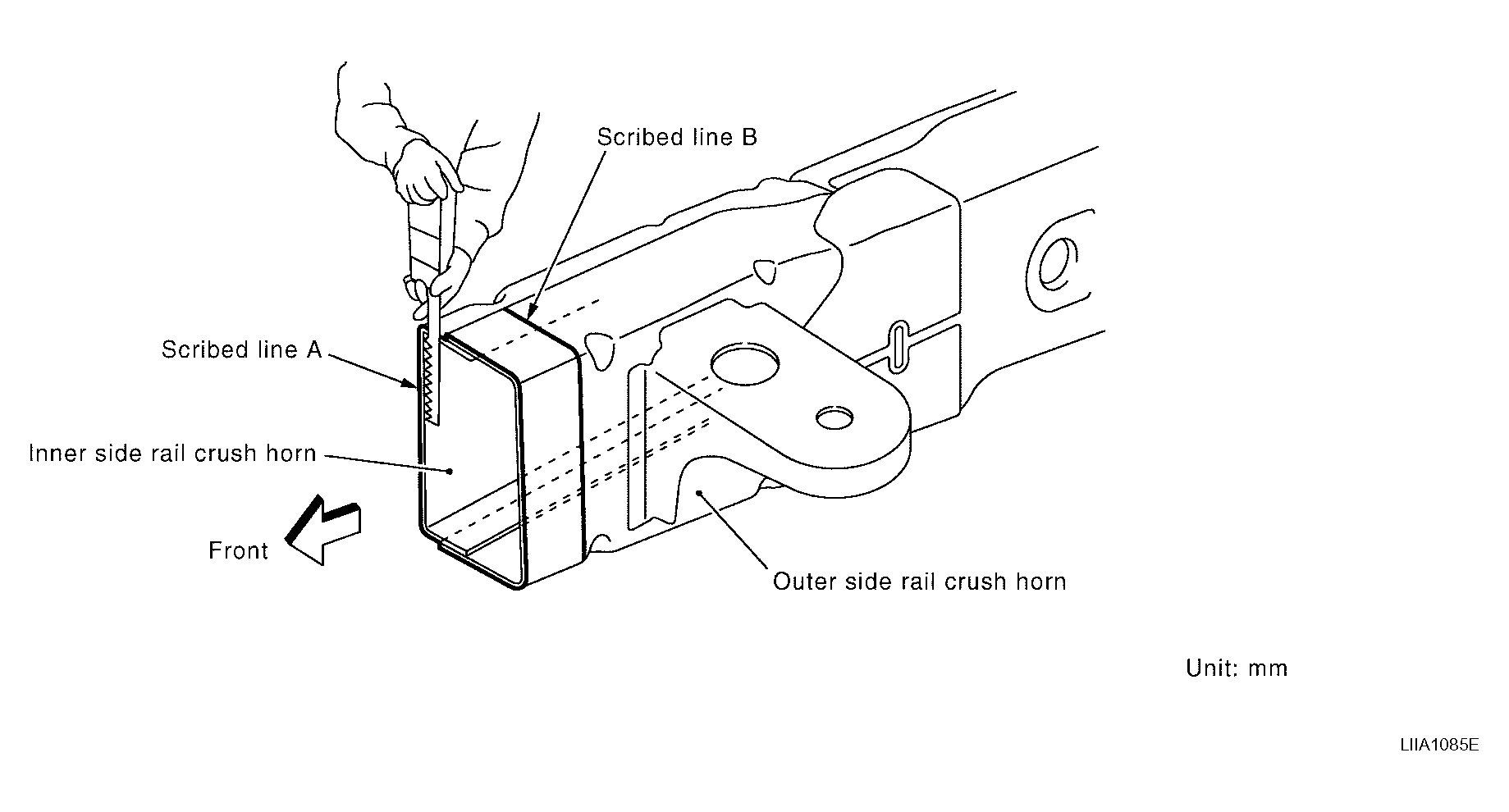

Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.

Fig 2: Cutting Off Outer Side Rail Crush Horn & Inner Side Rail Crush Horn
Courtesy of NISSAN MOTOR CO., U.S.A.

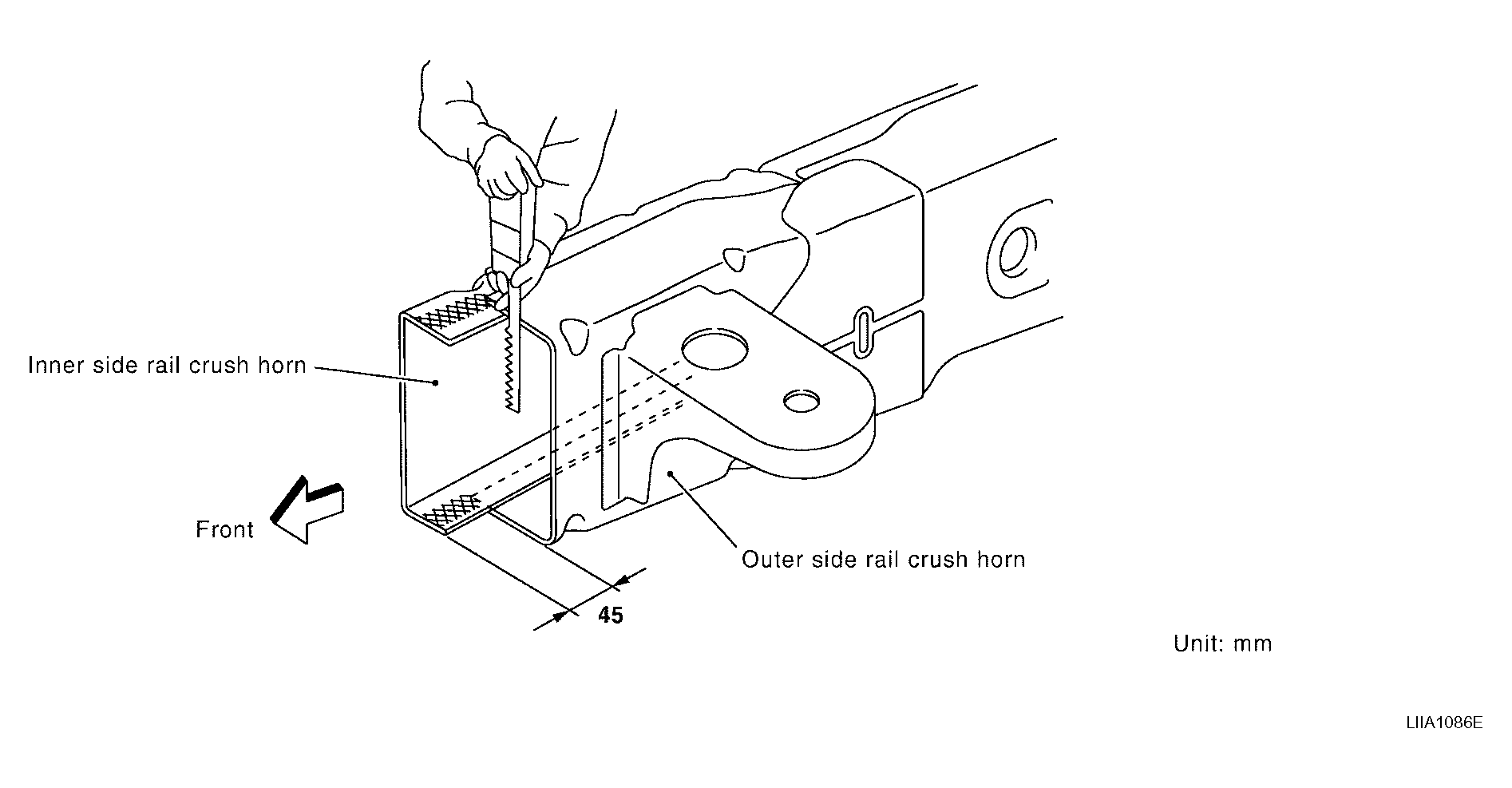

Cut inner side rail crush horn at 45 mm backward cut position of cut line A. (along line B)

Fig 3: Cutting Inner Side Rail Crush Horn
Courtesy of NISSAN MOTOR CO., U.S.A.
After removing outer panel, dress area on the inner panel surface with a sander or equivalent.
