Oil Pump: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil pump housing from oil pump cover.

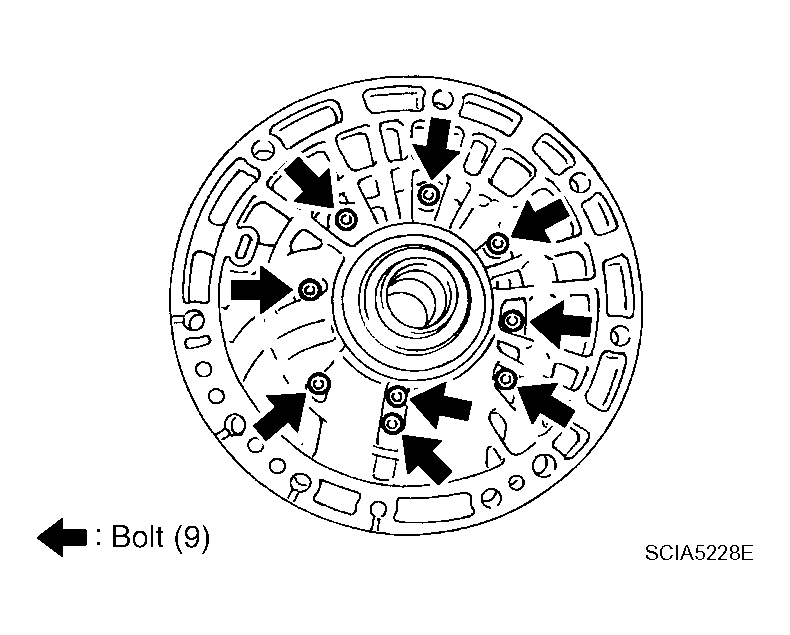

    Fig 1: Identifying Oil Pump Housing Bolts
    G04186140Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil pump housing oil seal using suitable tool.
    CAUTION: Be careful not to scratch oil pump housing.
    Fig 2: Removing Oil Pump Housing Oil Seal Using Suitable Tool
    G04186141Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove O-ring from oil pump housing.
    Fig 3: Identifying O-Ring For Oil Pump Housing
    G04186142Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump cover.

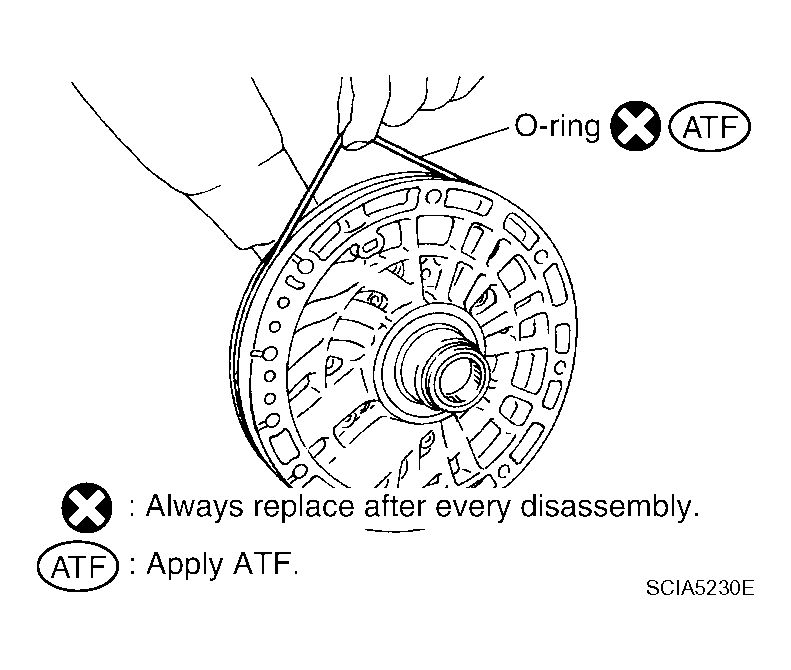

    Fig 4: Identifying O-Ring For Oil Pump Cover
    G04186143Courtesy of NISSAN MOTOR CO., U.S.A.
