Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal paying attention to the following.

For a location with a positioning pin, insert it securely into hole of mating part.
For a part with a specified installation orientation, refer to component figure in "REMOVAL AND INSTALLATION ".

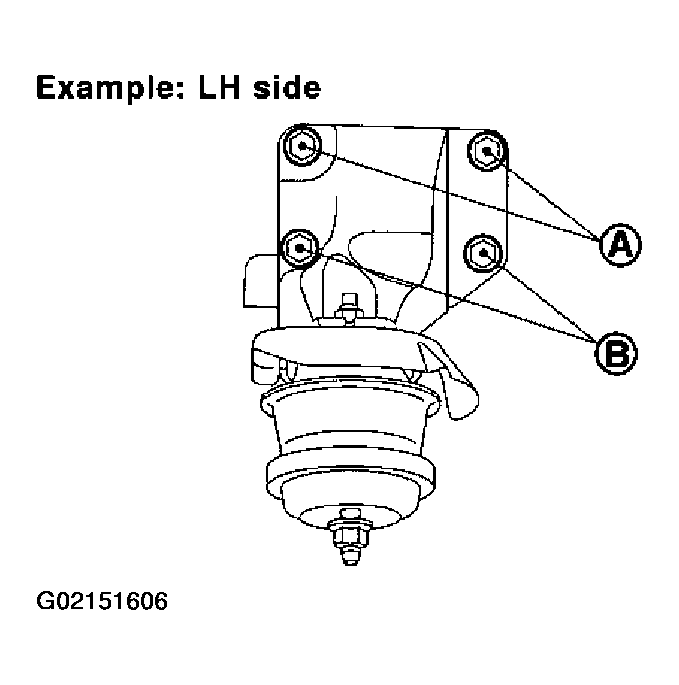

When installing front engine mounting bracket on cylinder block, tighten two upper bolts (shown as A in figure) first. Then tighten 2 lower bolts (shown as B in figure). (Left and right sides)

Fig 1: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten rear engine mounting member bolts in numerical order shown in figure.

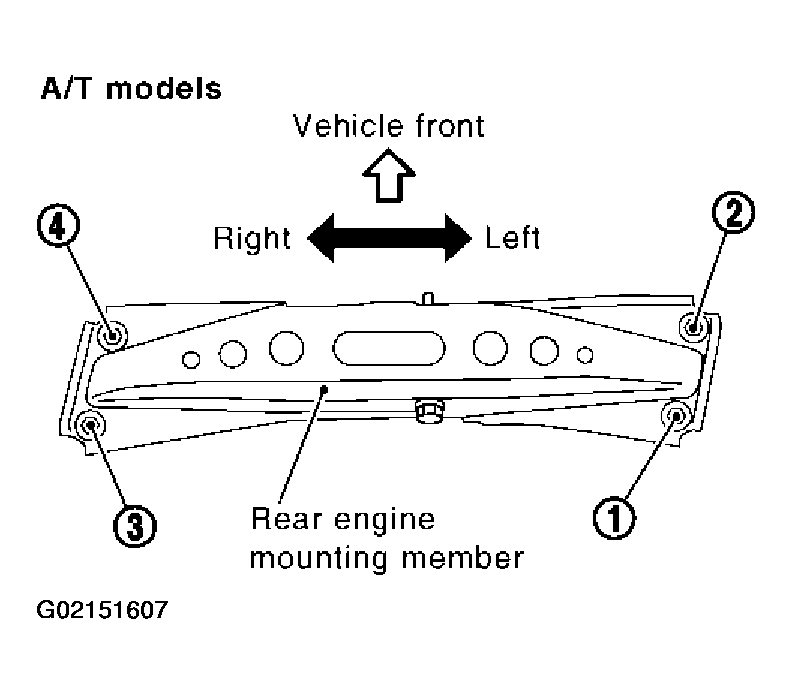

Fig 2: Tightening Bolts In Numerical Order - A/T Models
Courtesy of NISSAN MOTOR CO., U.S.A.

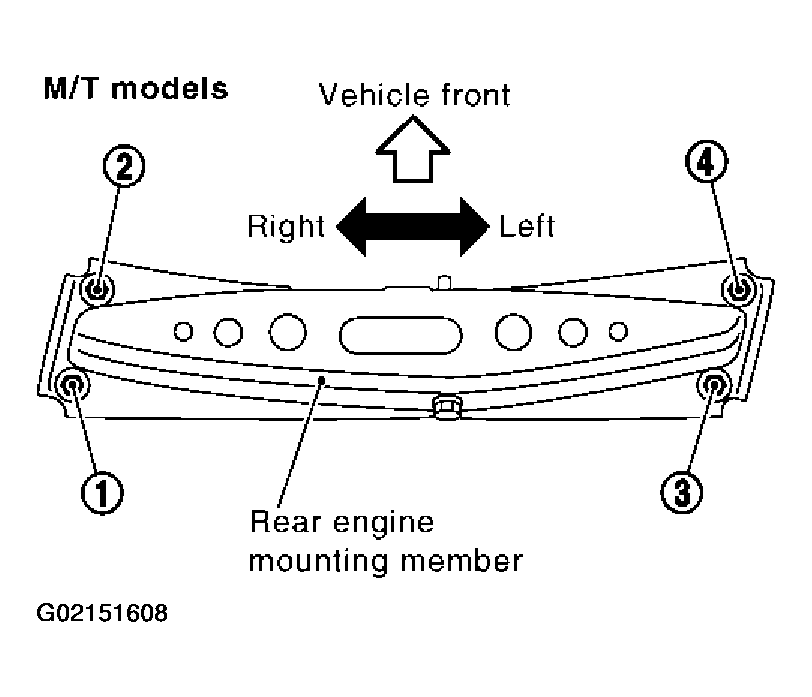

Fig 3: Tightening Bolts In Numerical Order - M/T Models
Courtesy of NISSAN MOTOR CO., U.S.A.
