Inspection After Disassembly: Sleeve

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check the items below. If necessary, replace them with new ones.

Damage and excessive wear of the contact surfaces of the sprocket, mainshaft and sleeve.
Sleeve must move smoothly.

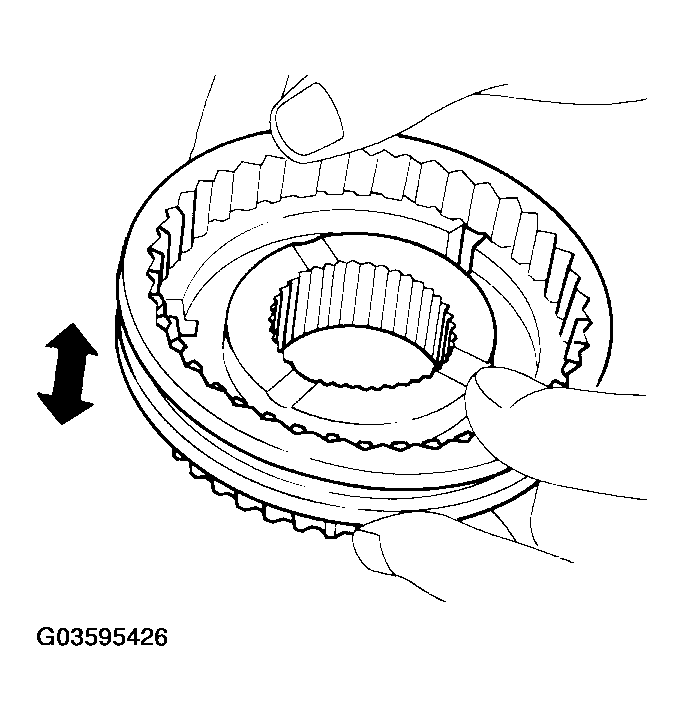

Fig 1: Checking Damage And Excessive Wear Of The Contact Surfaces Of The Sprocket, Mainshaft And Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
