Lower Instrument Panel LH: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower dash side finisher. Refer to "REMOVAL ".
  2. Remove front pillar finisher. Refer to "REMOVAL ".
  3. Remove screws using power tool, and remove lower instrument panel LH.
  4. Pull rearward to release clips, disconnect connectors, and remove lower instrument panel LH.

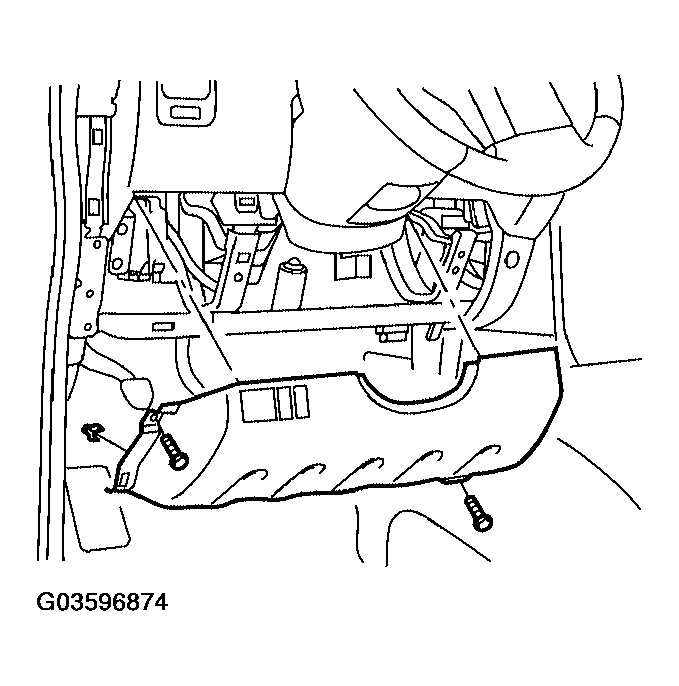

    Fig 1: Removing Lower Instrument Panel LH
    G03596874Courtesy of NISSAN MOTOR CO., U.S.A.
