Instrument Panel: Notes

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removal and installation of instrument panel, refer to exploded view illustration. See Fig 1 .

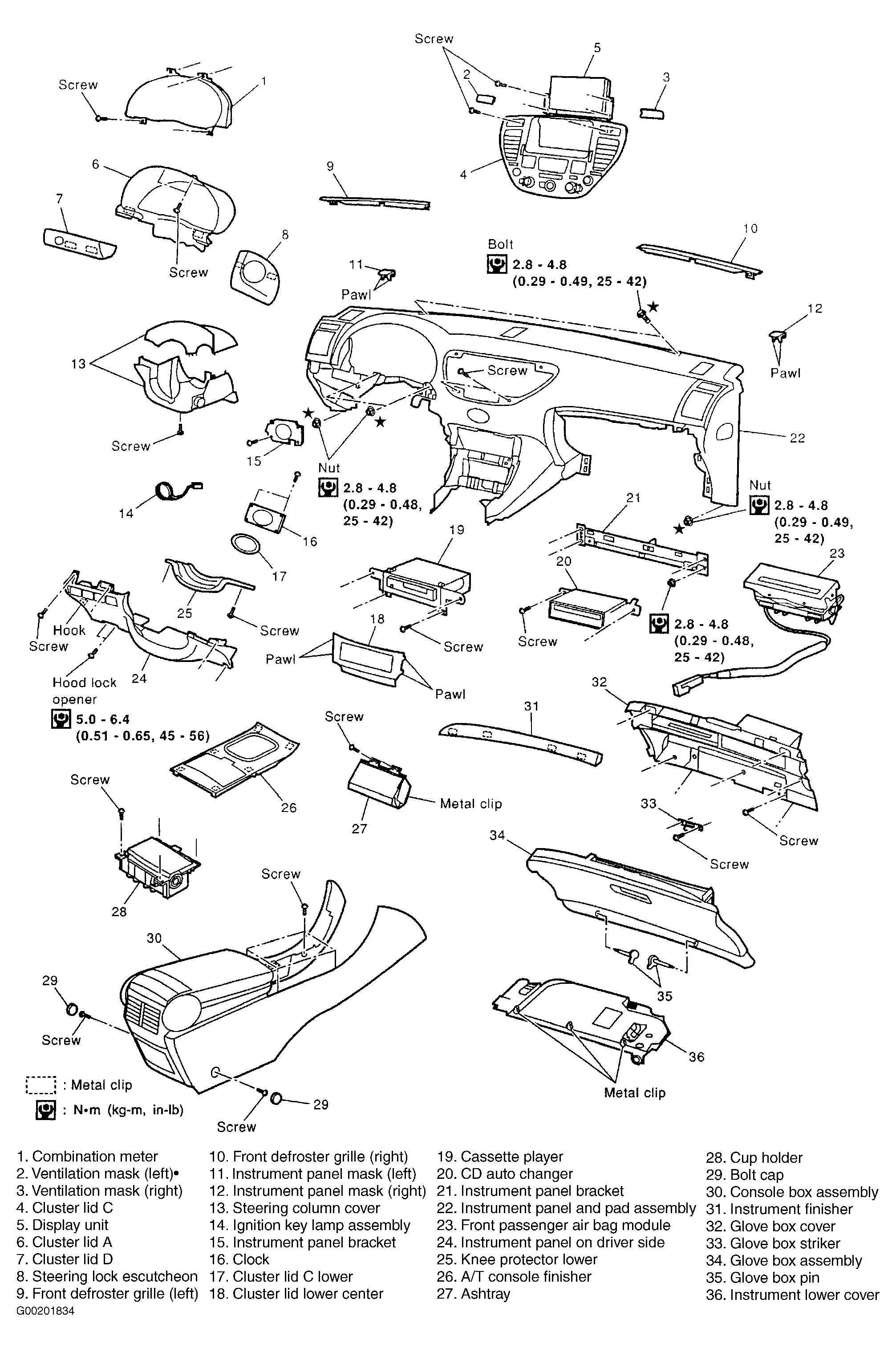

Fig 1: Exploded View Of Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.
