Console Box Assembly

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Remove screws with power tool.
Pull center console rearward of vehicle, remove from instrument panel and rear cooler duct. See Fig 1 .
Disconnect connectors and remove.

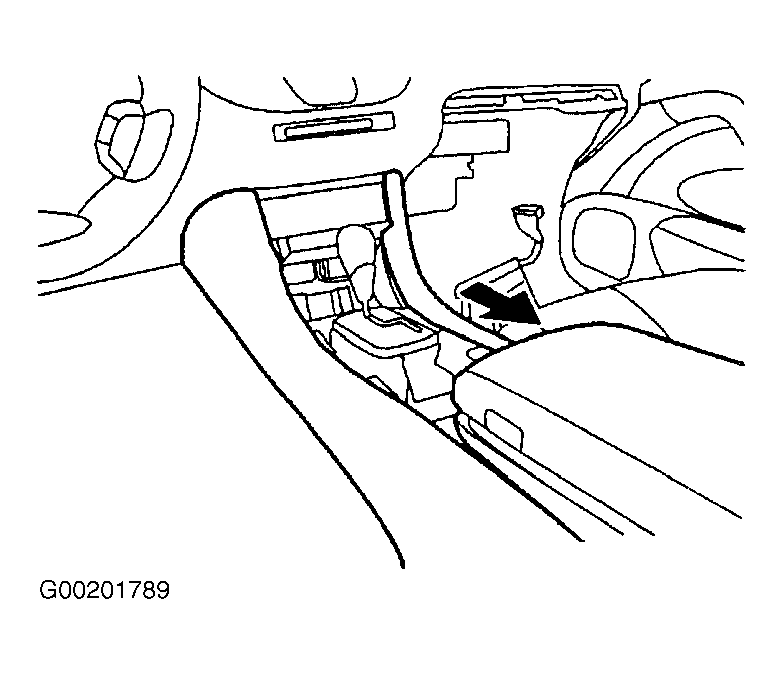

Fig 1: Removing Console Box Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For easier installation, remove console finisher, console rear cover, center ventilator grille and console box finisher first.
