Door Switch Check (Crew Cab)

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR SWITCHES INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

    • When any doors are open:

      DOOR SW-DR: ON

      DOOR SW-AS: ON

      DOOR SW-RL: ON

      DOOR SW-RR: ON

    • When any doors are closed:

      DOOR SW-DR: OFF

      DOOR SW-AS: OFF

      DOOR SW-RL: OFF

      DOOR SW-RR: OFF

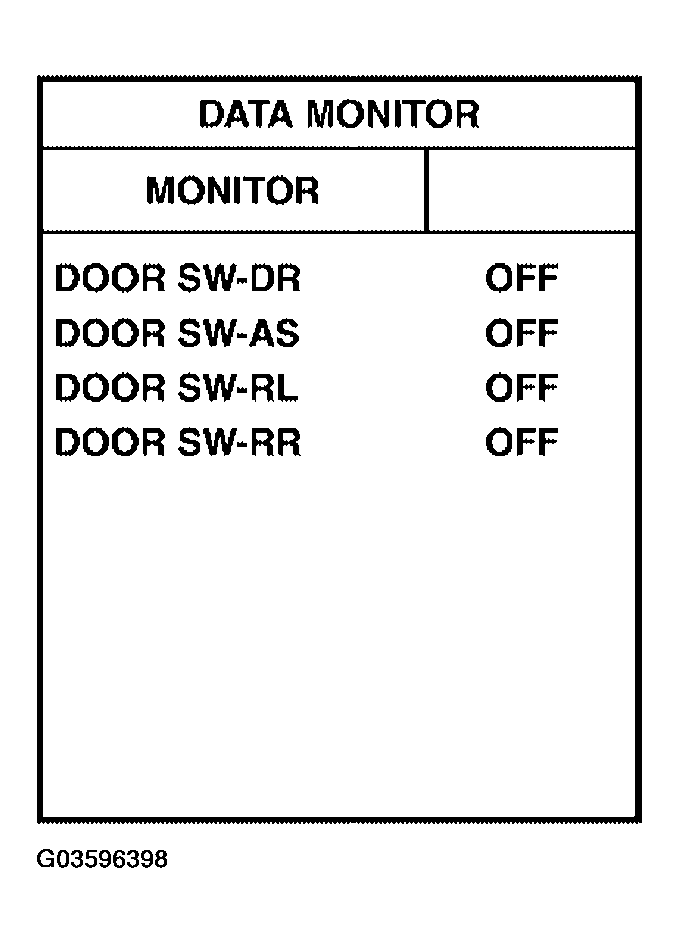

      Fig 1: CONSULT-II Function Display
      G03596398Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector M18 or M19 terminals 12, 13, 47, 48 and ground.

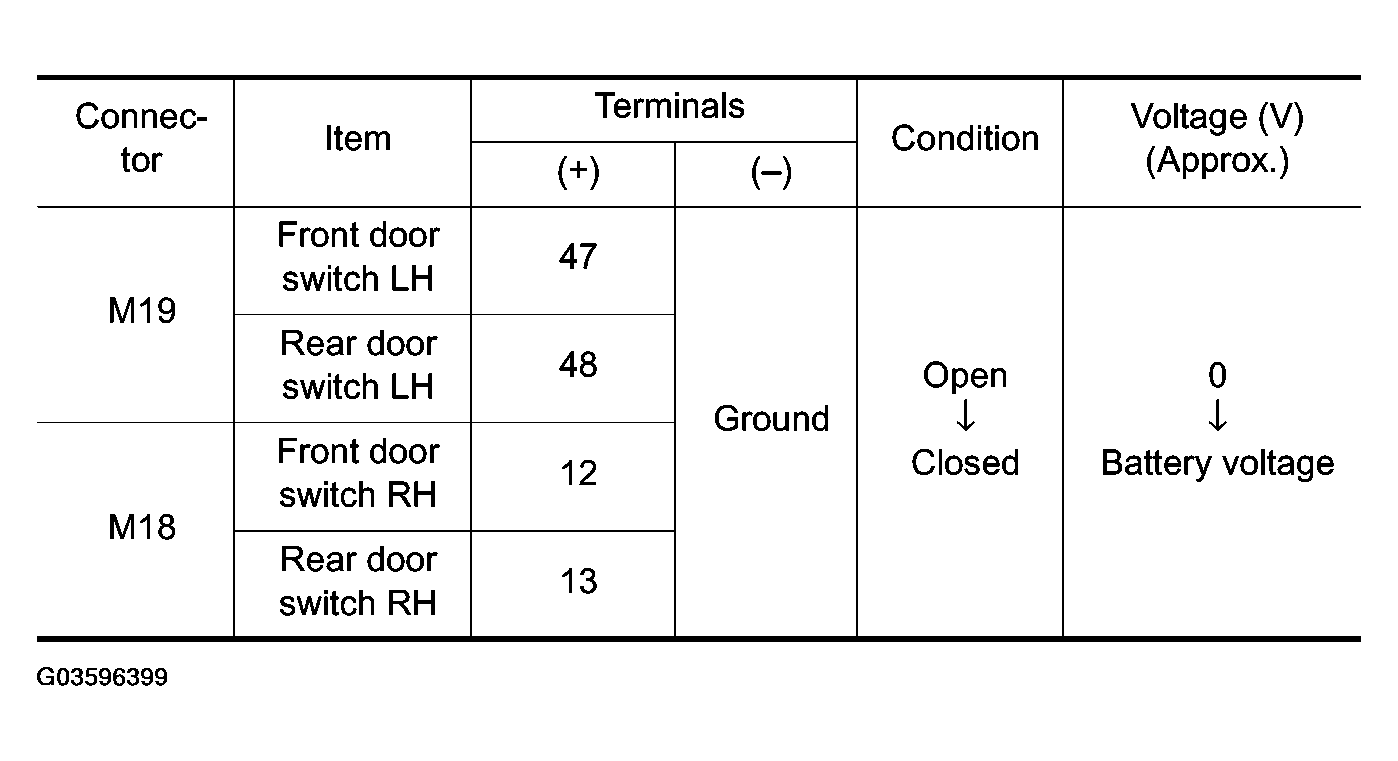

    Fig 2: Voltage Specifications
    G03596399Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Door switch circuit is OK.
    • NG: GO TO 2.

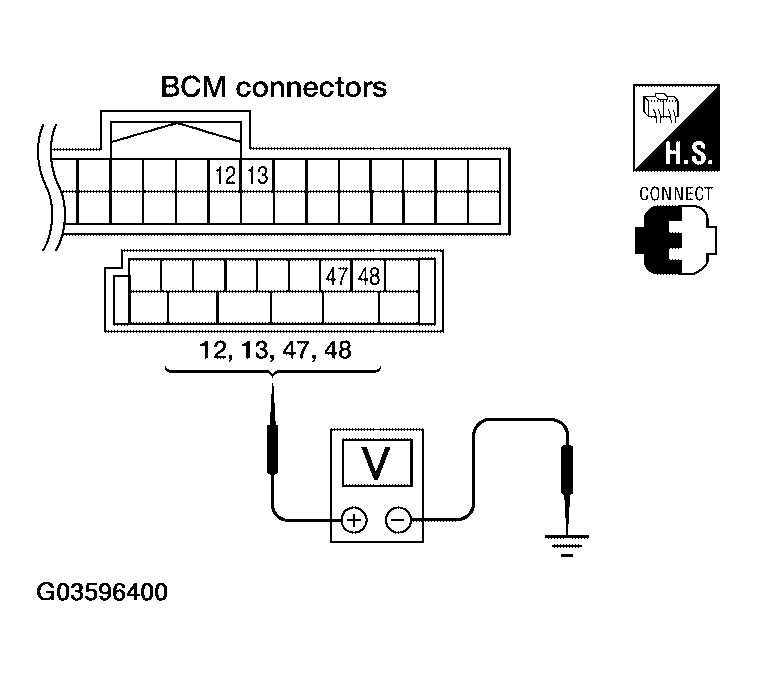

      Fig 3: Checking Voltage Between BCM Connector M18 Or M19 Terminals 12, 13, 47, 48 And Ground
      G03596400Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK BCM OUTPUT VOLTAGE
    1. Turn ignition switch OFF.
    2. Disconnect door switches.
    3. Check voltage between BCM connector M18, M19 terminals 12, 13, 47, 48 and ground.

      12 - Ground: Battery voltage

      13 - Ground: Battery voltage

      47 - Ground: Battery voltage

      48 - Ground: Battery voltage

    OK or NG

    • OK: GO TO 3.
    • NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
      Fig 4: Checking Voltage Between BCM Connector M18, M19 Terminals 12, 13, 47, 48 And Ground
      G03596401Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK DOOR SWITCH CIRCUIT
    1. Disconnect door switch and BCM.
    2. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B116 (Rear RH) terminal 2 and BCM connector M18, M19 terminals 12, 13, 47 and 48.

      2 - 47: Continuity should exist.

      2 - 12: Continuity should exist.

      2 - 48: Continuity should exist.

      2 - 13: Continuity should exist.

    3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B116 (Rear RH) terminal 2 and ground.

      2 - Ground: Continuity should not exist.

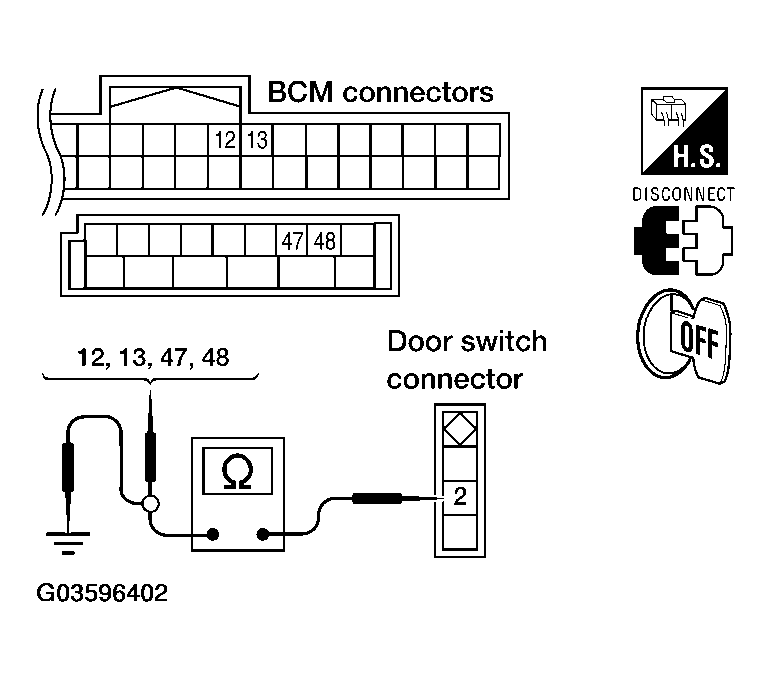

      Fig 5: Checking Continuity Between Door Switch Connector B8, B108, B18, B116 Terminal 2 And Ground
      G03596402Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.
  4. CHECK DOOR SWITCHES
    1. Disconnect door switch.
    2. Check continuity between door switch terminals.
      CONTINUITY SPECIFICATIONS

      br Terminal Condition Continuity
      Door switch (front and rear) 2 - Ground Open Yes
      Closed No

    OK or NG

    • OK: Check switch case ground condition (front and rear door).
    • NG: Replace door switch.

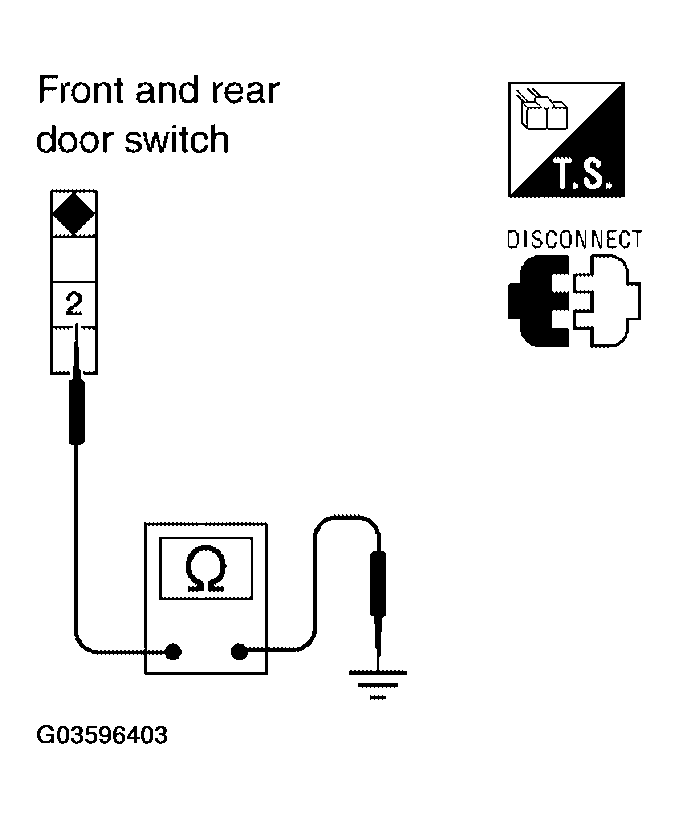

      Fig 6: Checking Continuity Between Door Switch Terminals
      G03596403Courtesy of NISSAN MOTOR CO., U.S.A.
