Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to GI section, refer to GENERAL INFORMATION .

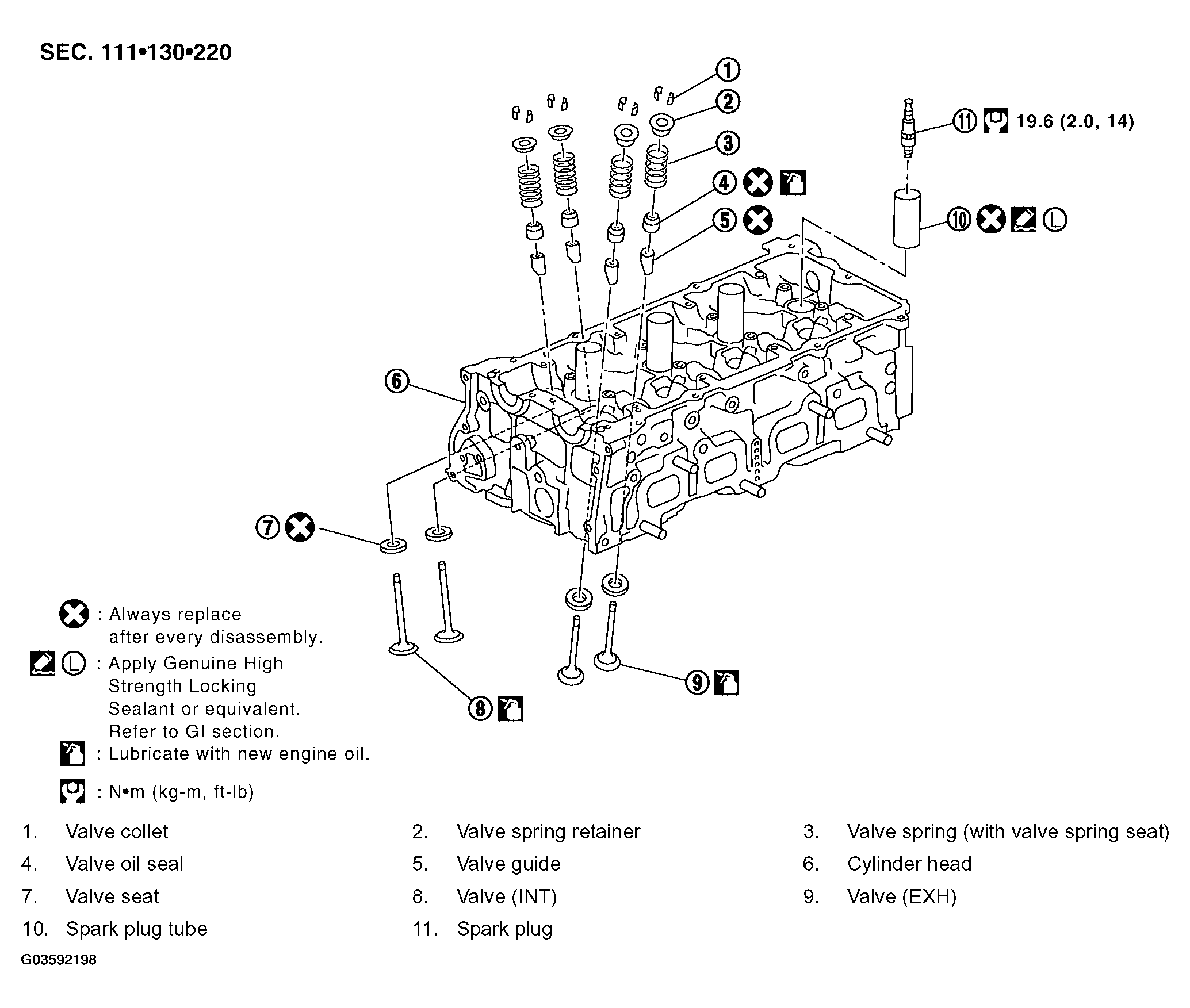

Fig 1: Exploded View Of Valve Spring And Oil Seal Component With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
