How To Read Harness Layout: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

Main Harness
Engine Room Harness RH View (Engine Compartment)
Engine Room Harness (Passenger Compartment)
Engine Room Harness LH View (Engine Compartment)
Engine Control Harness (QR25DE Models)
Engine Control Harness (VQ40DE Models)
Chassis Harness
Body Harness (King Cab Models)
Body Harness (Crew Cab Models)
Body No. 2 Harness (King Cab Models)
Body No. 2 Harness (Crew Cab Models)
Room Lamp Harness

Fig 1: Identifying Harness Layouts Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

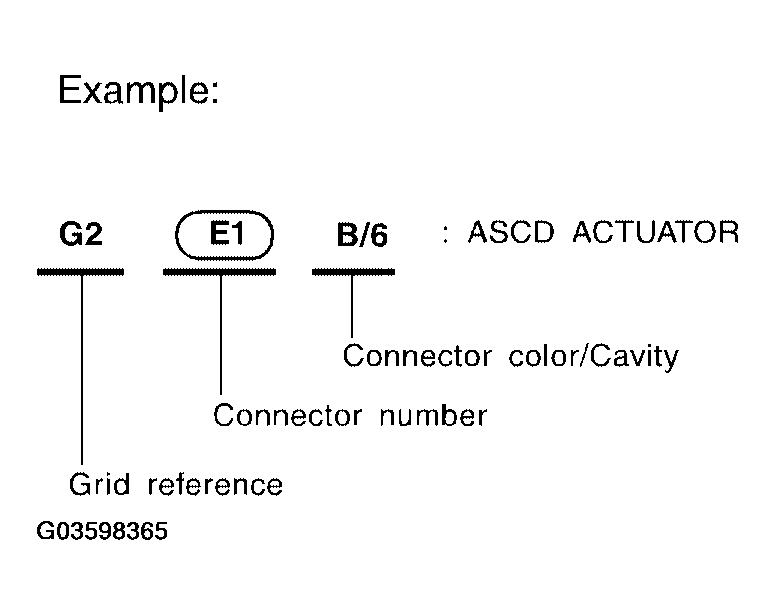

To use the grid reference

Find the desired connector number on the connector list.
Find the grid reference.
On the drawing, find the crossing of the grid reference letter column and number row.
Find the connector number in the crossing zone.
Follow the line to the connector.
