Disassembly and Assembly of Brake Caliper Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pads from cylinder body.
  2. Remove sliding sleeve and boot from cylinder body.
  3. Place a wooden block as shown in the figure, and blow air from union bolt mounting hole to remove piston and piston boot.
    CAUTION: Do not get your fingers caught in piston.

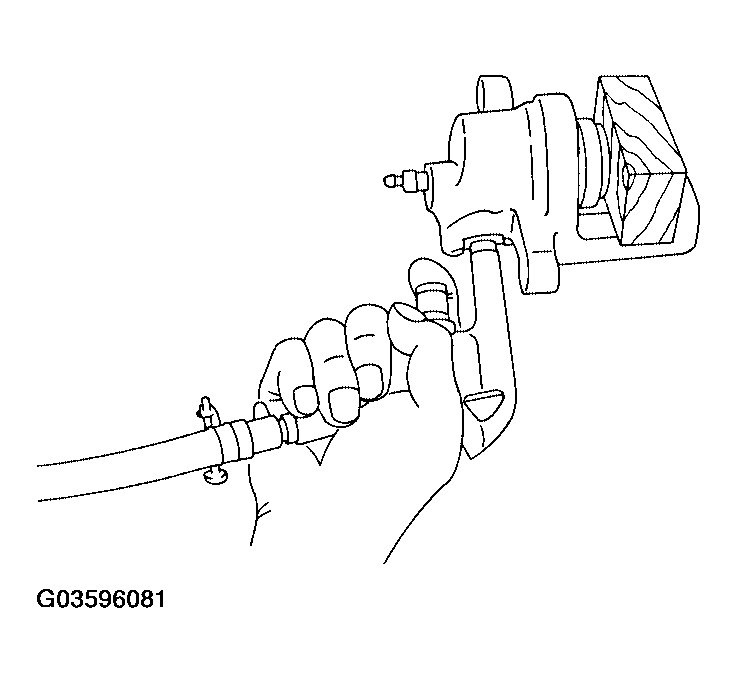

    Fig 1: Blowing Air From Union Bolt Mounting Hole To Remove Piston And Piston Boot
    G03596081Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a flat-bladed screwdriver, remove piston seal from cylinder body.
    CAUTION: Be careful not to damage cylinder inner wall.

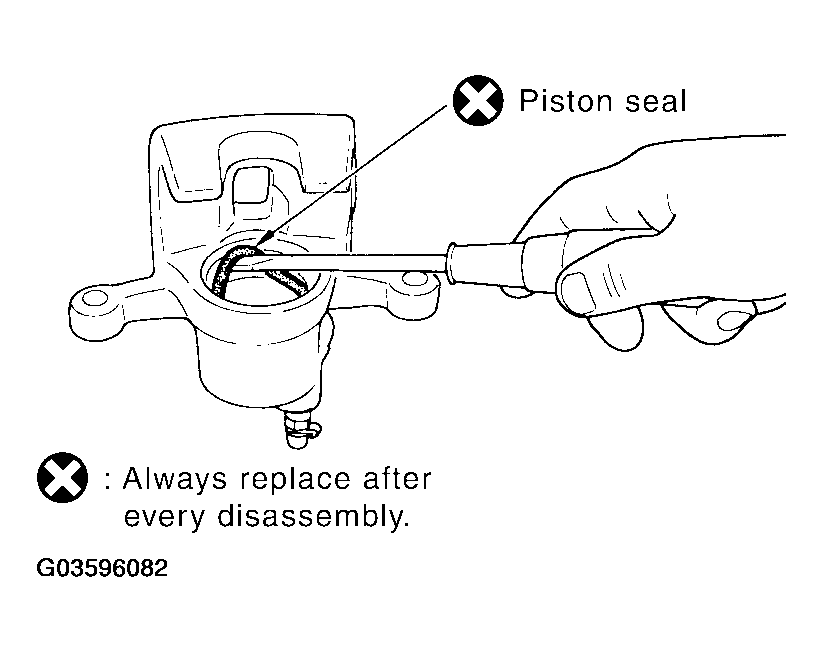

    Fig 2: Removing Piston Seal From Cylinder Body
    G03596082Courtesy of NISSAN MOTOR CO., U.S.A.
