Wind Deflector: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunroof.
  2. Remove screws from the left, center, and right side wind deflector holders.
  3. Remove the wind deflector from the sunroof frame assembly.

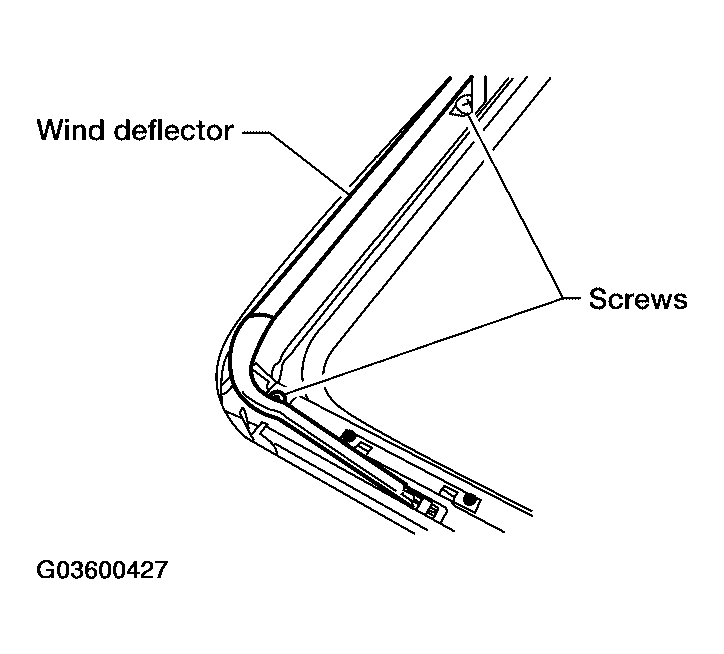

    Fig 1: Removing Wind Deflector From Sunroof Frame Assembly
    G03600427Courtesy of NISSAN MOTOR CO., U.S.A.
