Inspection and Adjustment: Inspection: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the brake pedal free height "H" from the lower dash.
Adjust the height referring to the following specifications.
CAUTION: When equipped with adjustable pedal, the pedal must be in the forwardmost (closest to the floor) position for pedal height measurement.

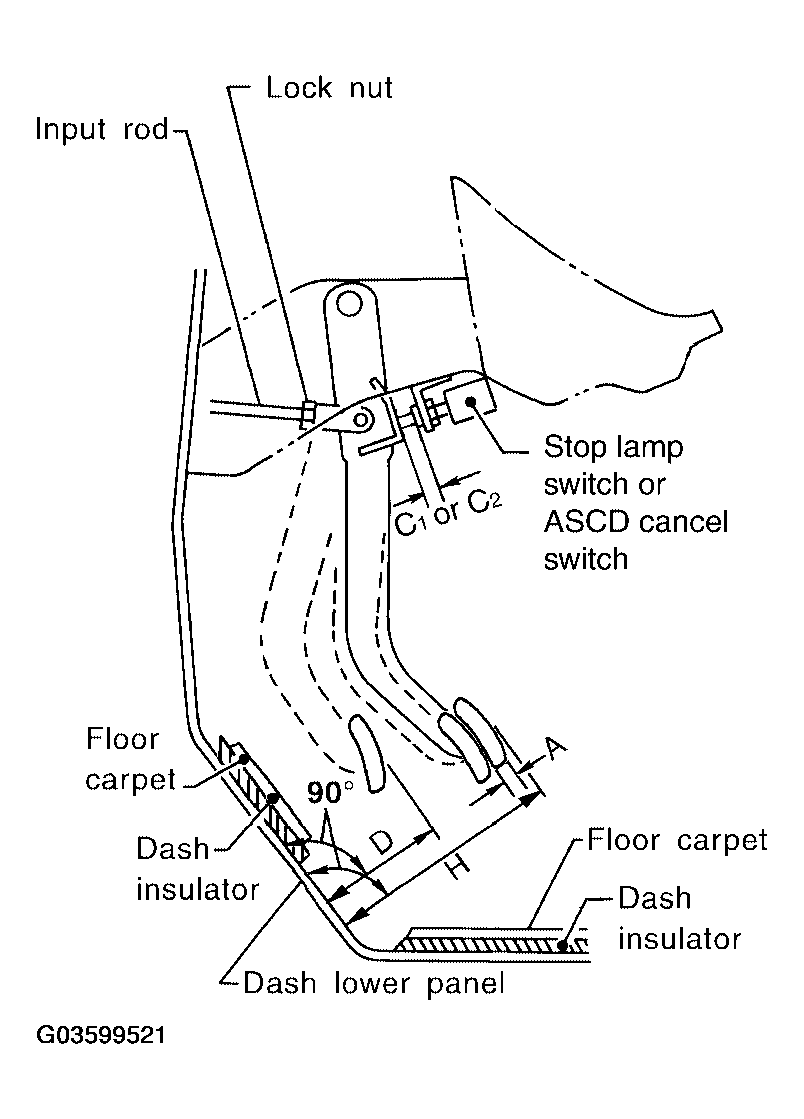

Fig 1: Inspecting Brake Pedal Free Height From Lower Dash
Courtesy of NISSAN MOTOR CO., U.S.A.
