Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

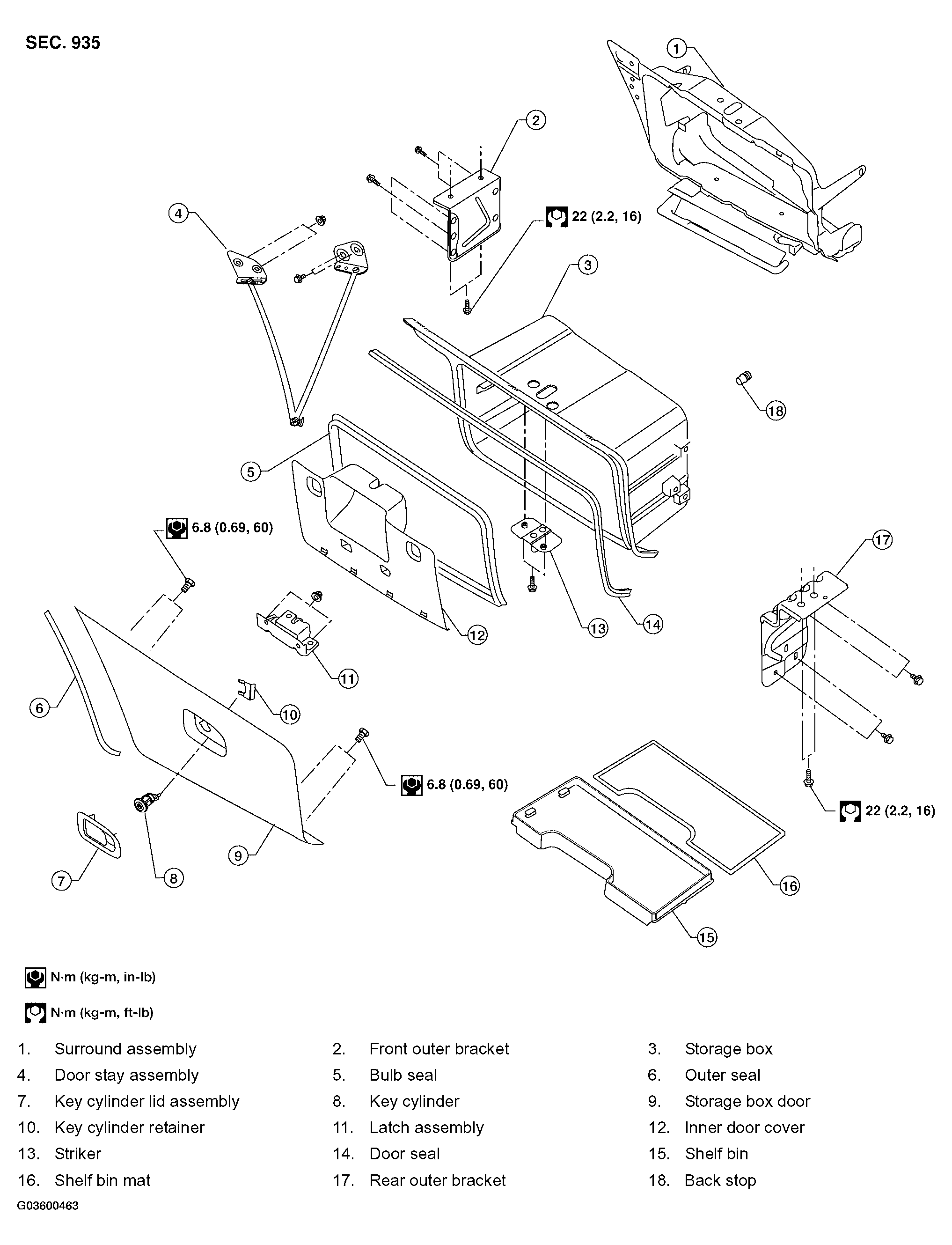

Fig 1: Removing & Installing Storage Box With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear mudguard (if equipped). Refer to "MUDGUARD ".
Remove bolts, release clips and remove storage box assembly.
Remove shelf bin and mat from storage box.
Remove storage box door from hinge.
- Remove door stay assembly.
Remove inner door cover.
Remove nuts and remove latch assembly from door.
- Remove key cylinder.
Remove outer seal and key cylinder lid assembly from door.
Remove bulb seal and door seal from storage box.
Remove storage box from surround assembly.

Installation is in the reverse order of removal.
