Component Locations

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1.

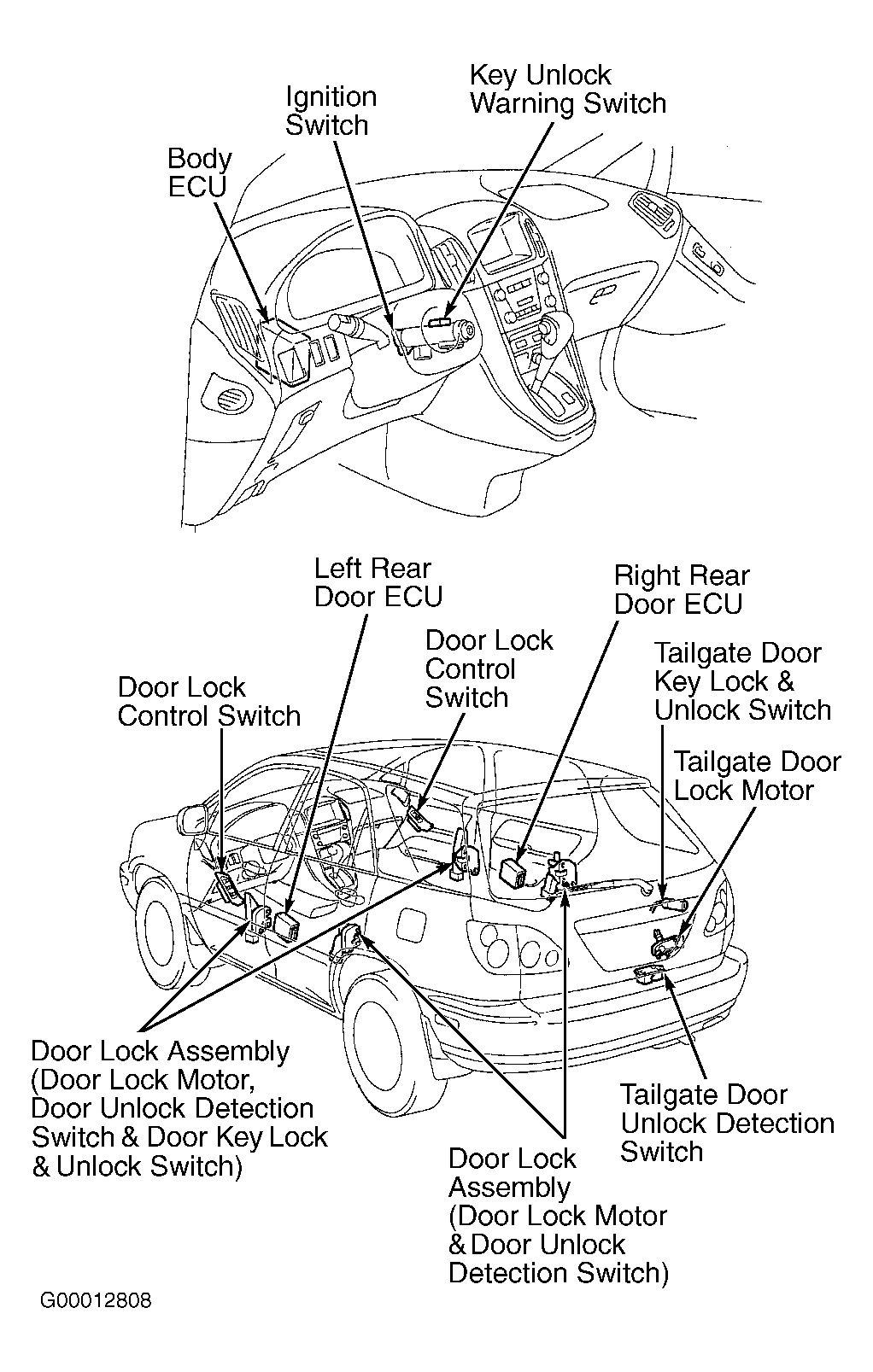

Fig 1: Identifying Power Door Locks & Tailgate Component Locations
