Oil Pump: Assembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

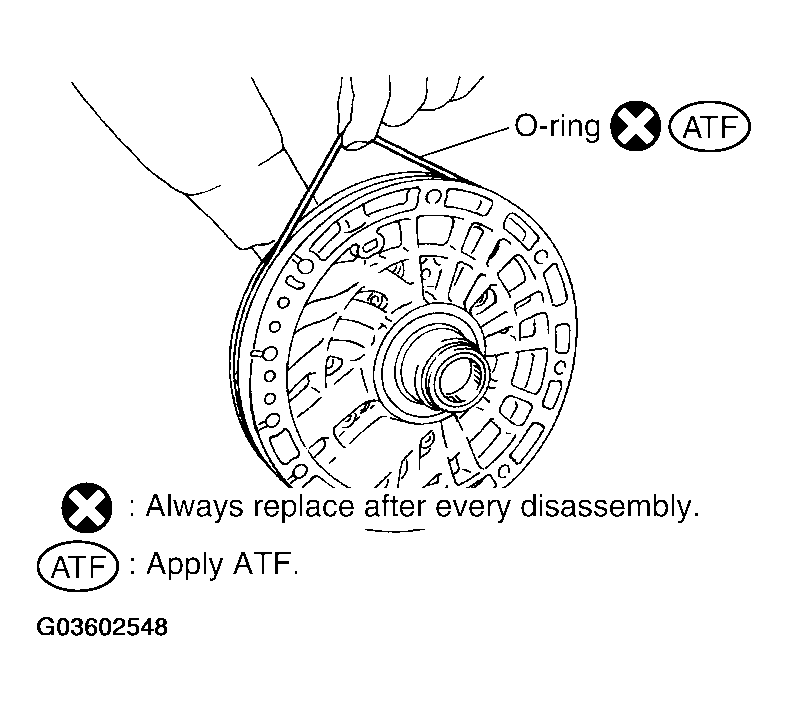

  Fig 1: Installing O-Ring To Oil Pump Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 2: Installing O-Ring To Oil Pump Housing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing oil seal to the oil pump housing until it is flush.
Tool number: ST33400001 (J-26082)

Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Install oil pump housing in oil pump cover. Tighten oil pump housing fitting bolt to the specified torque. Refer to "COMPONENTS ".

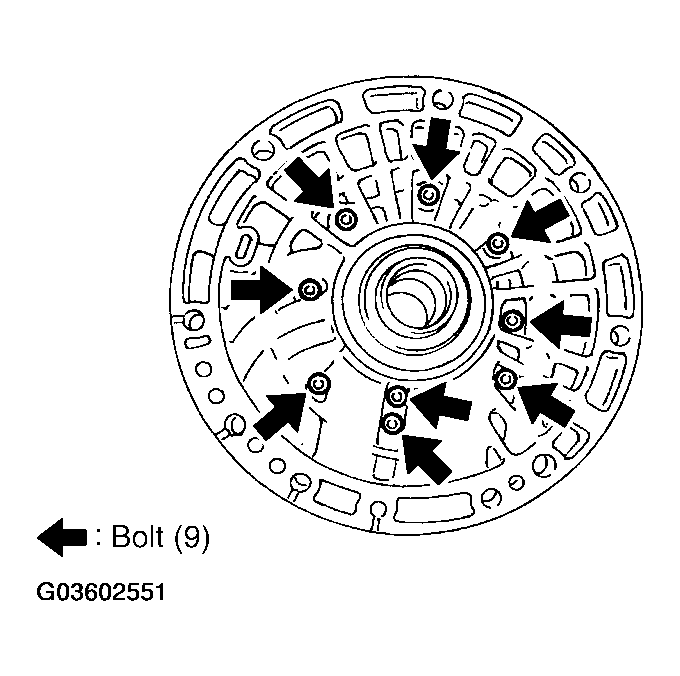

Fig 4: Installing Oil Pump Housing In Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
