Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove spiral cable from steering column assembly with combination switches attached. Refer to "REMOVAL AND INSTALLATION ".
Remove tilt lever knob from tilt lever by inserting a suitable tool into slot of tilt lever knob, then depress tab and withdraw tilt lever knob.

Fig 1: Removing Tilt Lever Knob
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove lower driver instrument panel. Refer to "LOWER INSTRUMENT PANEL LH ".
Remove steering column cover and ignition key finisher. Refer to "REMOVAL AND INSTALLATION ".
Remove mounting screws of knee protector, then remove knee protector from vehicle.

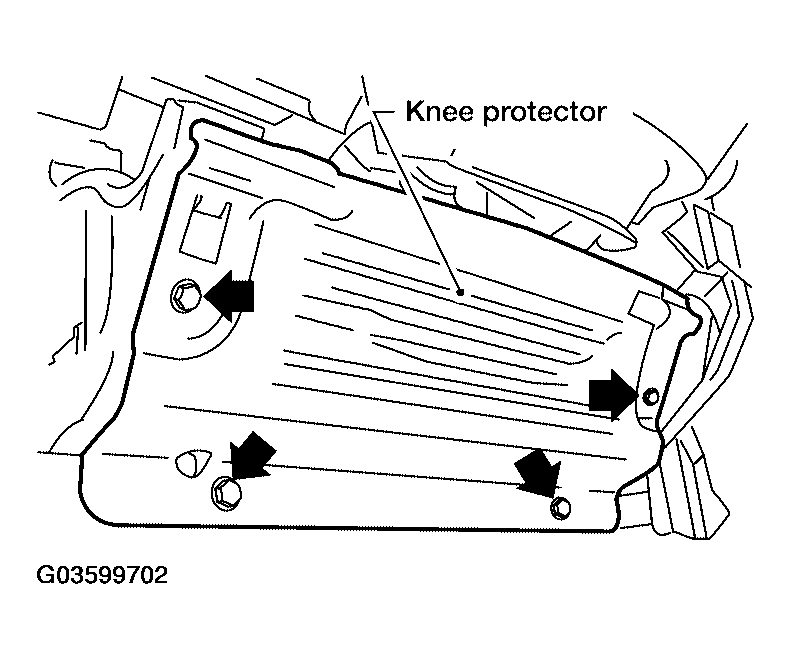

Fig 2: Removing Knee Protector & Mounting Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
On models equipped with column shift, disconnect shift cable from steering column. Refer to "CONTROL DEVICE REMOVAL AND INSTALLATION ".
Remove lock nut and bolt, then separate lower joint from upper joint.

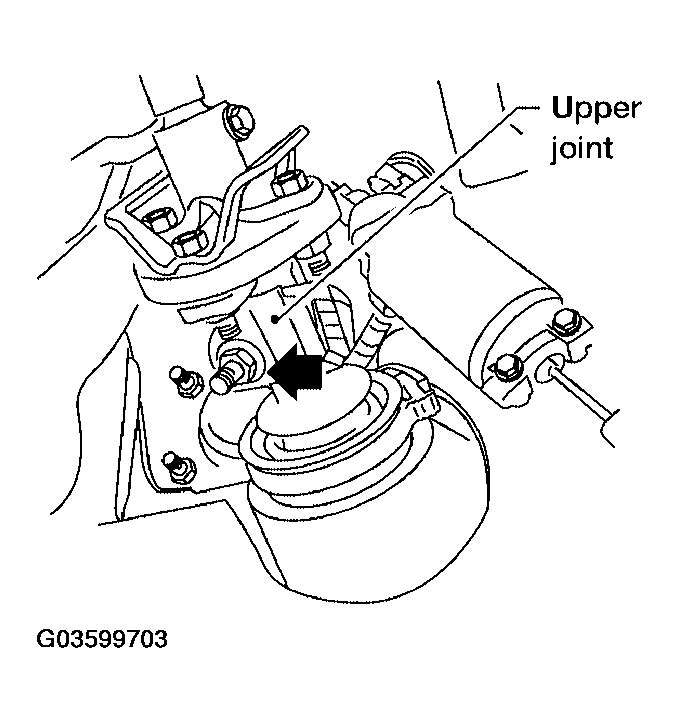

Fig 3: Separating Lower Joint From Upper Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mounting nuts from steering member, remove steering column assembly from steering member.

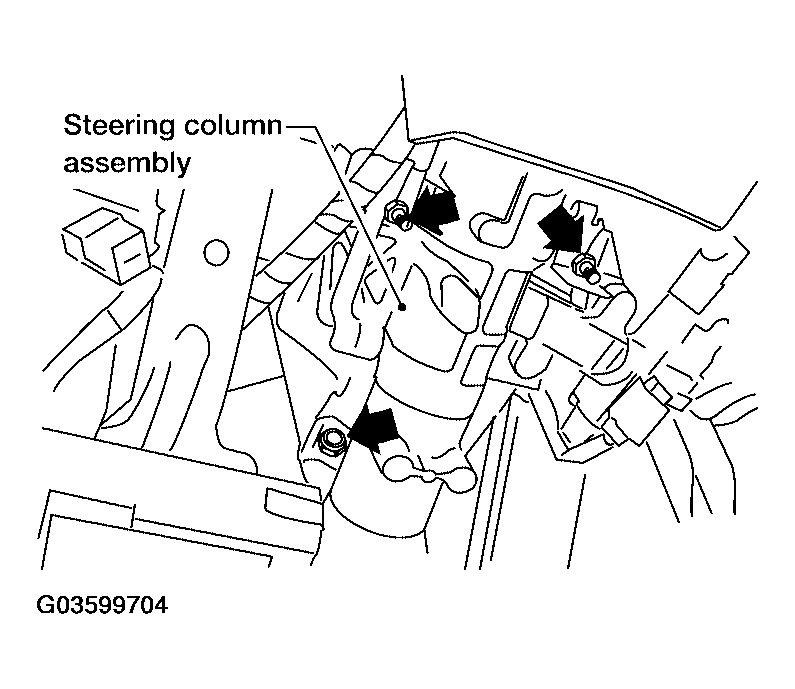

Fig 4: Removing Mounting Nuts & Steering Column Assembly From Steering Member
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove hole cover seal and clamp.
Remove mounting nuts, then remove hole cover from dash panel.
Raise vehicle, then remove mounting bolt (lower side) of lower joint and remove lower joint from vehicle.

Fig 5: Removing Mounting Bolt (Lower Side) Of Lower Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
