Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustration for hydraulic line removal.

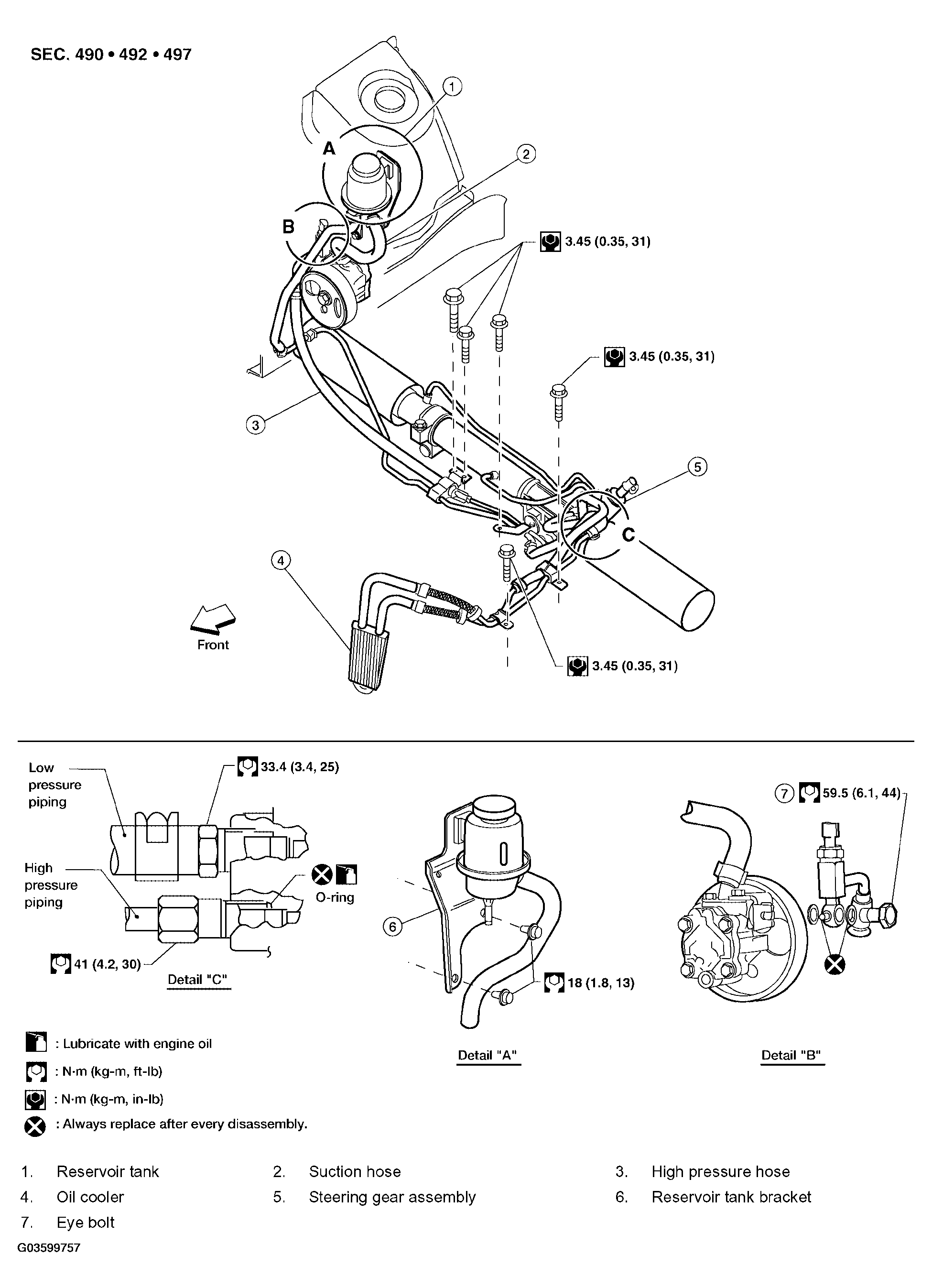

Fig 1: Hydraulic Line And Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Installation is in the reverse order of removal.

Confirm mating marks are aligned with hose and clamp, then correct if needed.

Fig 2: Identifying Mating Marks
Courtesy of NISSAN MOTOR CO., U.S.A.
To install eye joint, align projection of eye joint with notch of power steering pump, and attach eye joint to power steering pump properly. Tighten eye bolt by hand fully, then torque to specification.

Fig 3: Installing Eye Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
