Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool.
  2. Remove lower shock absorber bolt.
  3. Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower link. Refer to REMOVAL AND INSTALLATION .
  4. Remove drive shaft, if equipped. Refer to DRIVE SHAFT .
  5. Remove pinch bolt from steering knuckle using power tool, then separate lower link ball joint from steering knuckle.

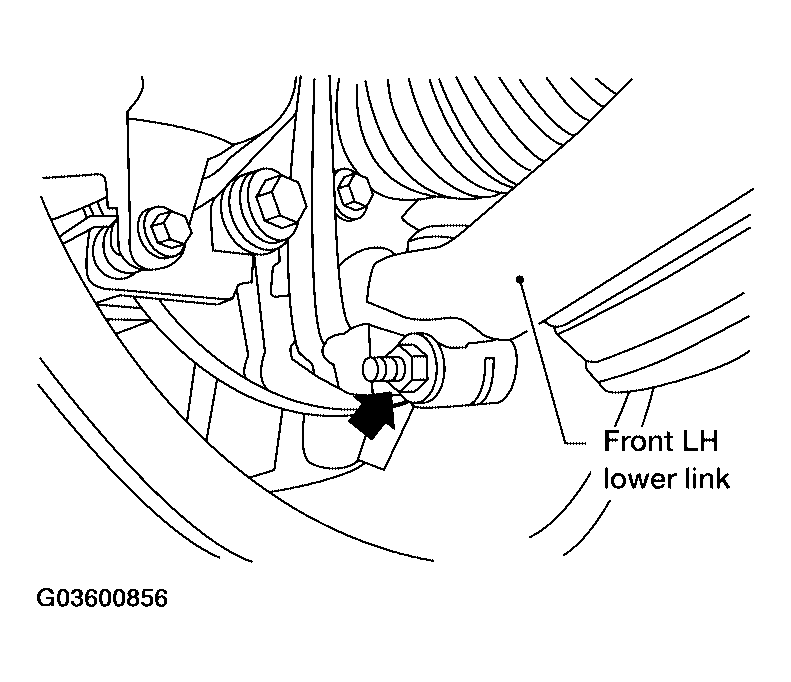

    Fig 1: Removing Pinch Bolt From Steering Knuckle
    G03600856Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove lower link adjusting bolts and nuts, then the lower link.

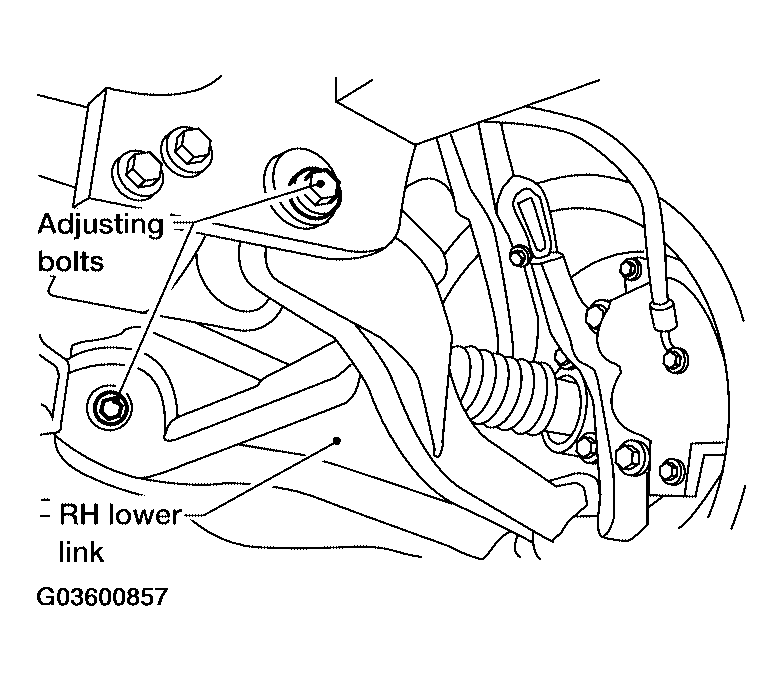

    Fig 2: Locating Lower Link Adjusting Bolts And Nuts
    G03600857Courtesy of NISSAN MOTOR CO., U.S.A.
