Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Perform when the engine is cold.

Drain engine coolant from the radiator. Refer to "DRAINING ENGINE COOLANT ".
Remove air cleaner and air duct assembly. Refer to "REMOVAL ".
Disconnect A/T fluid cooler hoses.
- Install blind plug to avoid leakage of A/T fluid.
Disconnect radiator upper and lower hoses from radiator.
CAUTION: Do not allow coolant to contact drive belts.
Remove the lower radiator shroud.
- Release the tabs, pull lower radiator shroud rearwards and down to remove.

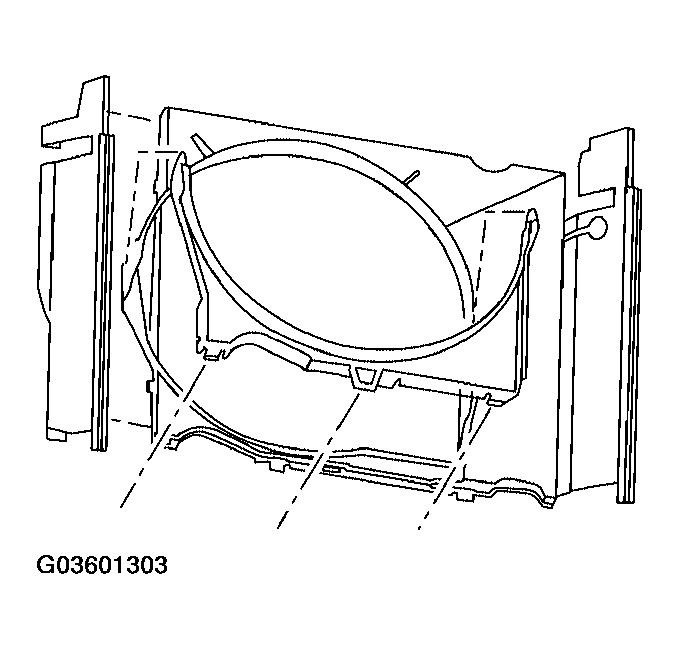

Fig 1: Removing Lower Radiator Shroud

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the radiator shroud upper bolts and remove the radiator shroud upper.

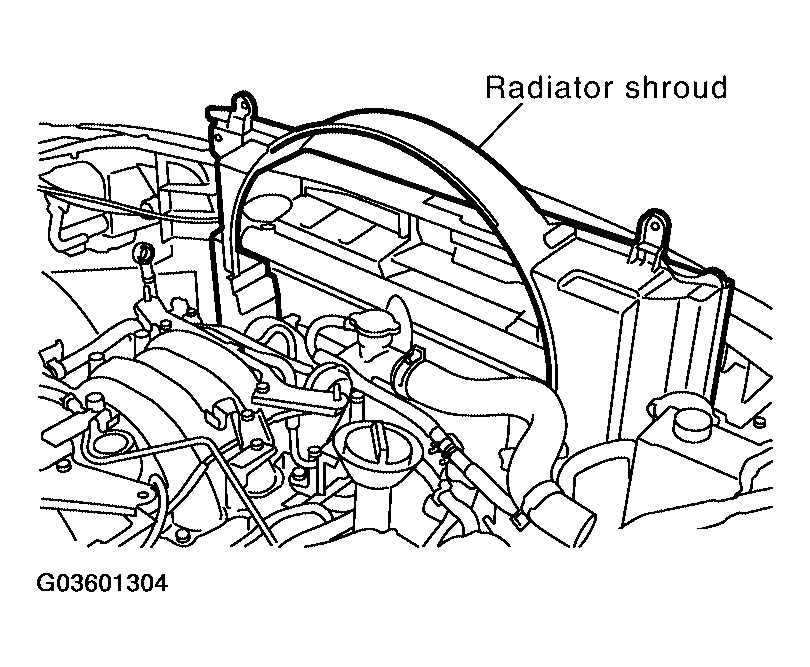

Fig 2: Removing Radiator Shroud Upper
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the A/C condenser bolts and brackets.
NOTE: Lift A/C condenser up and forward to remove from radiator.

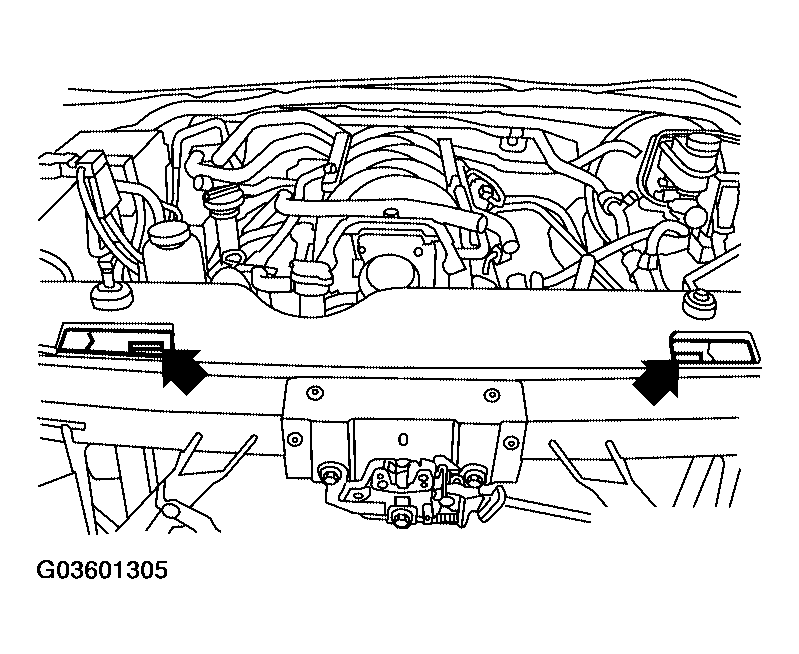

Fig 3: Removing A/C Condenser Bolts And Brackets
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove A/T oil cooler bolts and oil cooler from radiator and position aside.

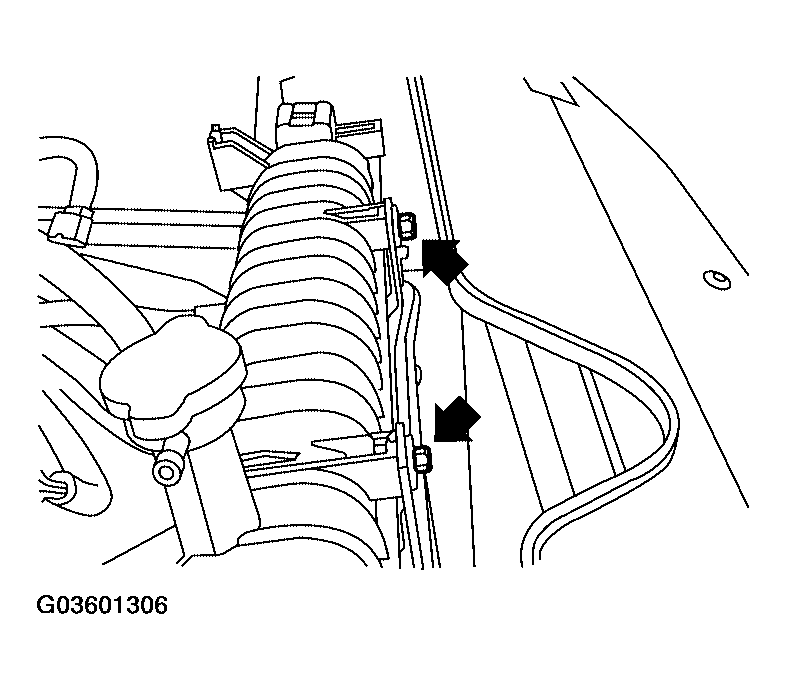

Fig 4: Removing A/T Oil Cooler Bolts And Oil Cooler From Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
Lift up and remove the radiator.
CAUTION: Do not damage or scratch air conditioner condenser and radiator core when removing.

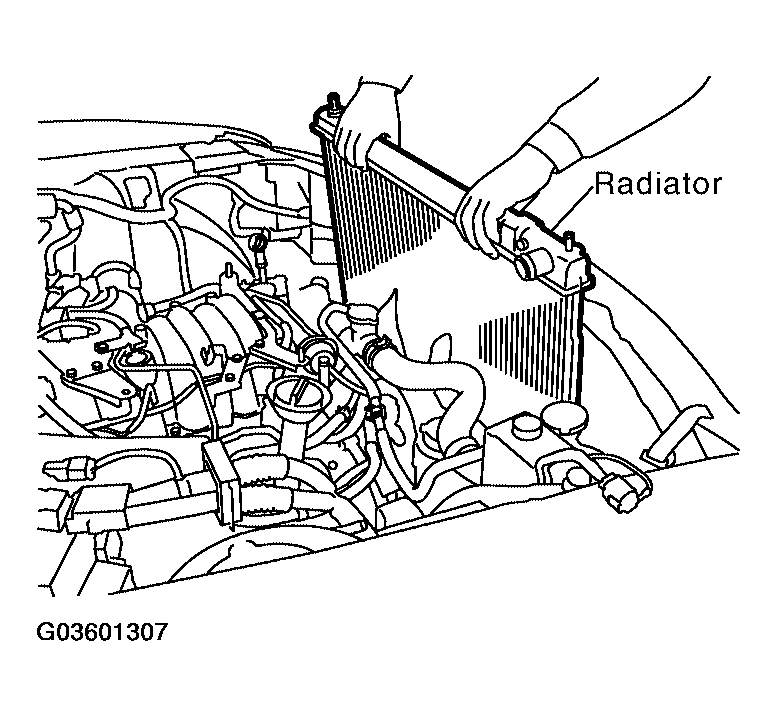

Fig 5: Removing Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
