Body Side Trim: Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

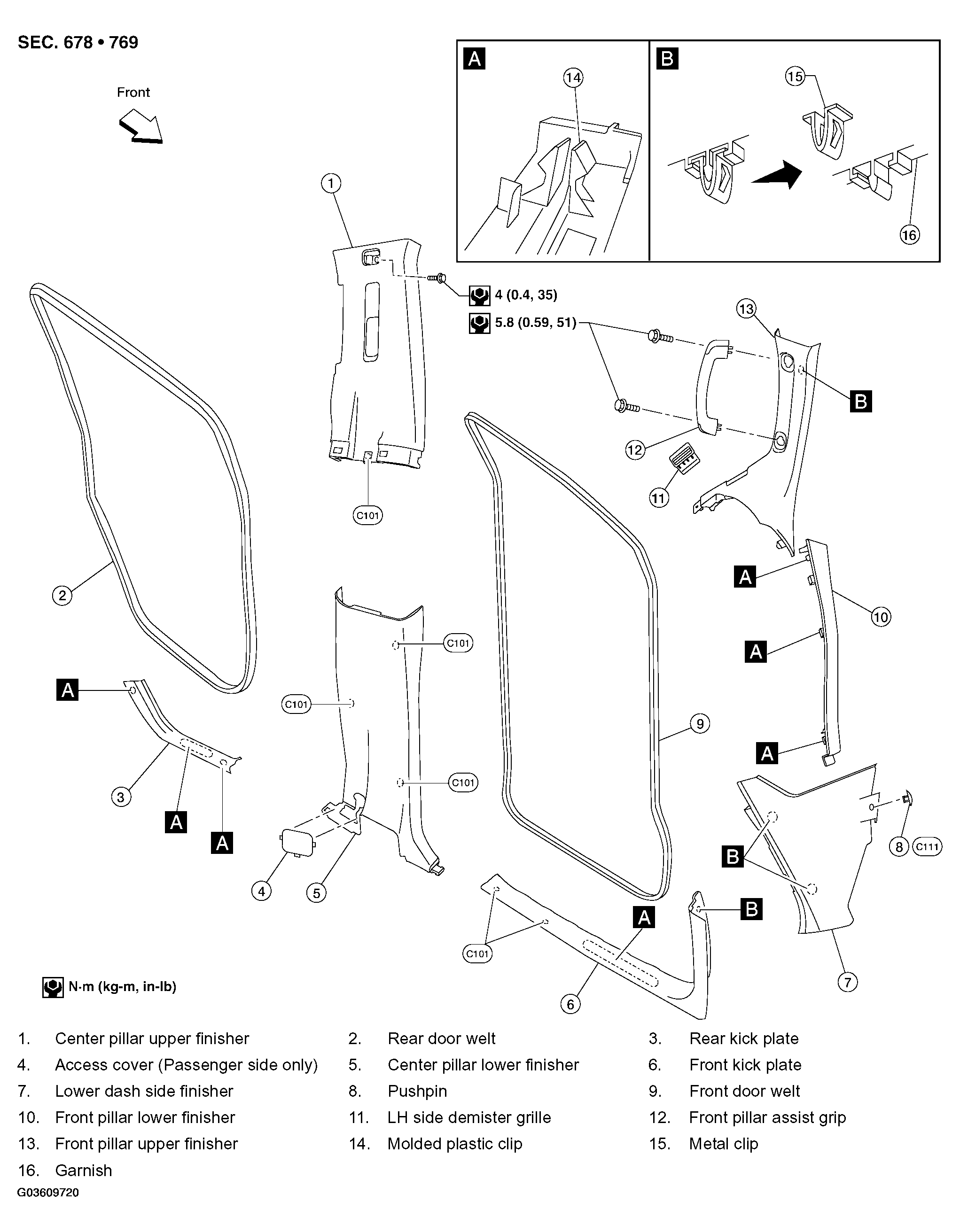

Fig 1: Body Side Trim And Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
When removing or installing body side door welts, do not allow butyl seal to come in contact with pillar finisher.
