Section 1530 (Body, Lock & Security System)
>>
NVIS (NISSAN Vehicle Immobilizer System-NATS)
>>
Work Flow
Work Flow
WARNING:
This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

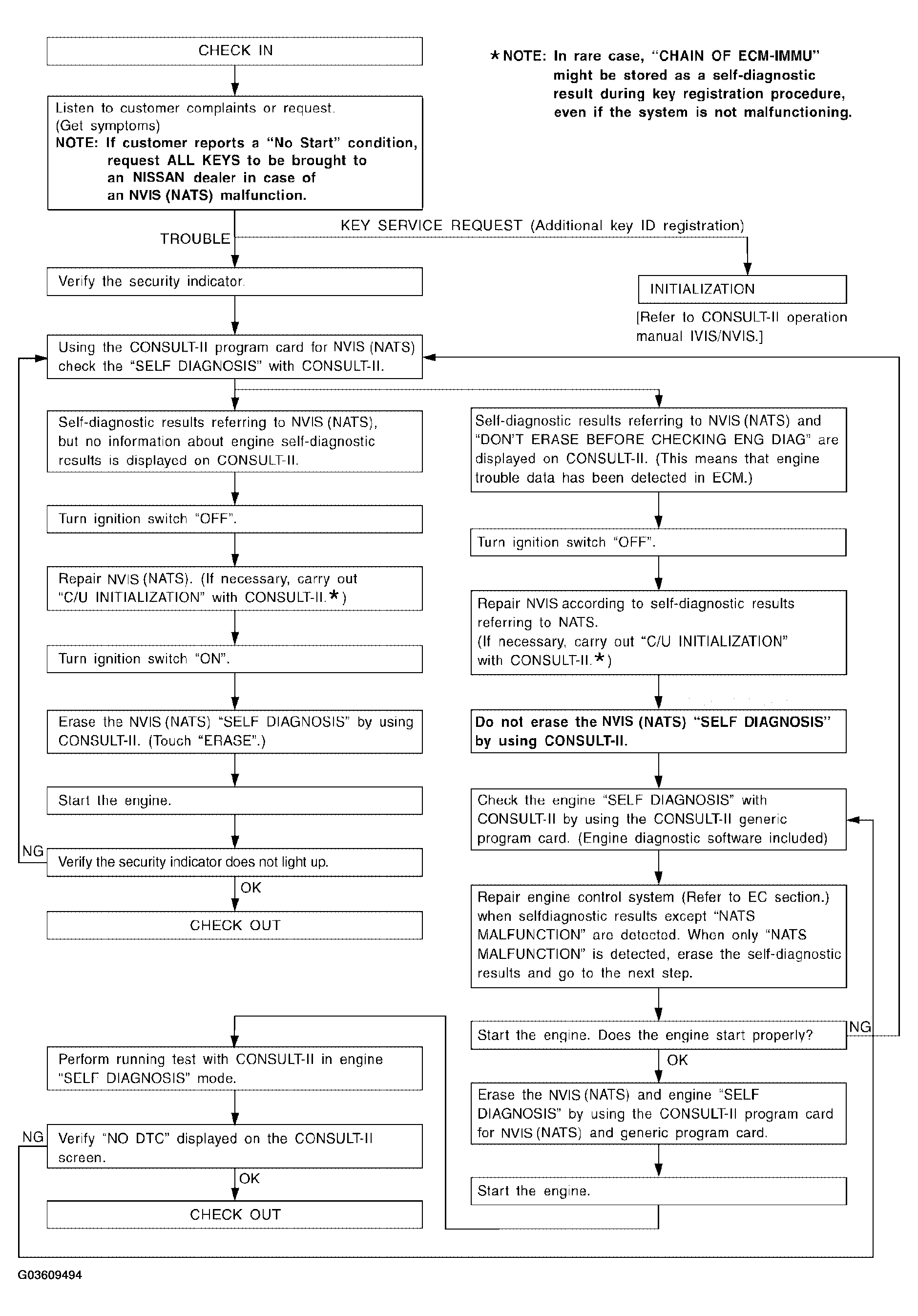

Fig 1: Nissan Vehicle Immobilizer System Diagnostic Work Flow Chart (NATS)
Courtesy of NISSAN MOTOR CO., U.S.A.
