COMPONENT LOCATIONS
| Component | Location |
|---|---|

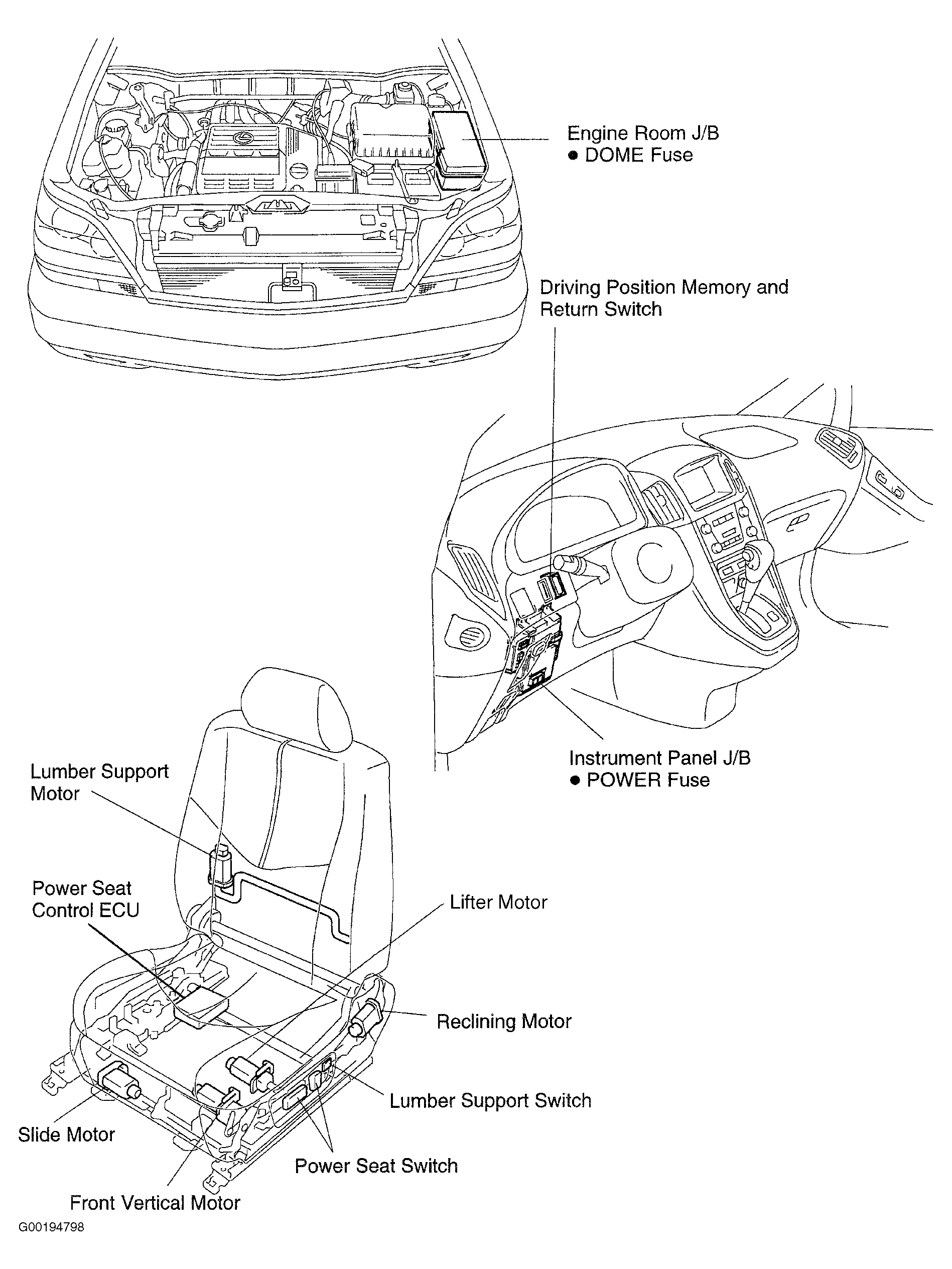

| Driving Position Memory & Return Switch | Fig 1 |
| DOME Fuse (Located In Engine Room Junction Block) | Fig 1 |
| Engine Main Relay (Located In Instrument Panel Junction Block) | Fig 2 |
| Front Vertical Motor | Fig 1 |
| Lifter Motor | Fig 1 |
| Lumbar Support Motor | Fig 1 |
| Lumbar Support Switch | Fig 1 |
| POWER Fuse (Located In Instrument Panel Junction Block) | Fig 1 |
| Power Seat Control ECU | Fig 1 |
| Power Seat Switch | Fig 1 |
| Reclining Motor | Fig 1 |

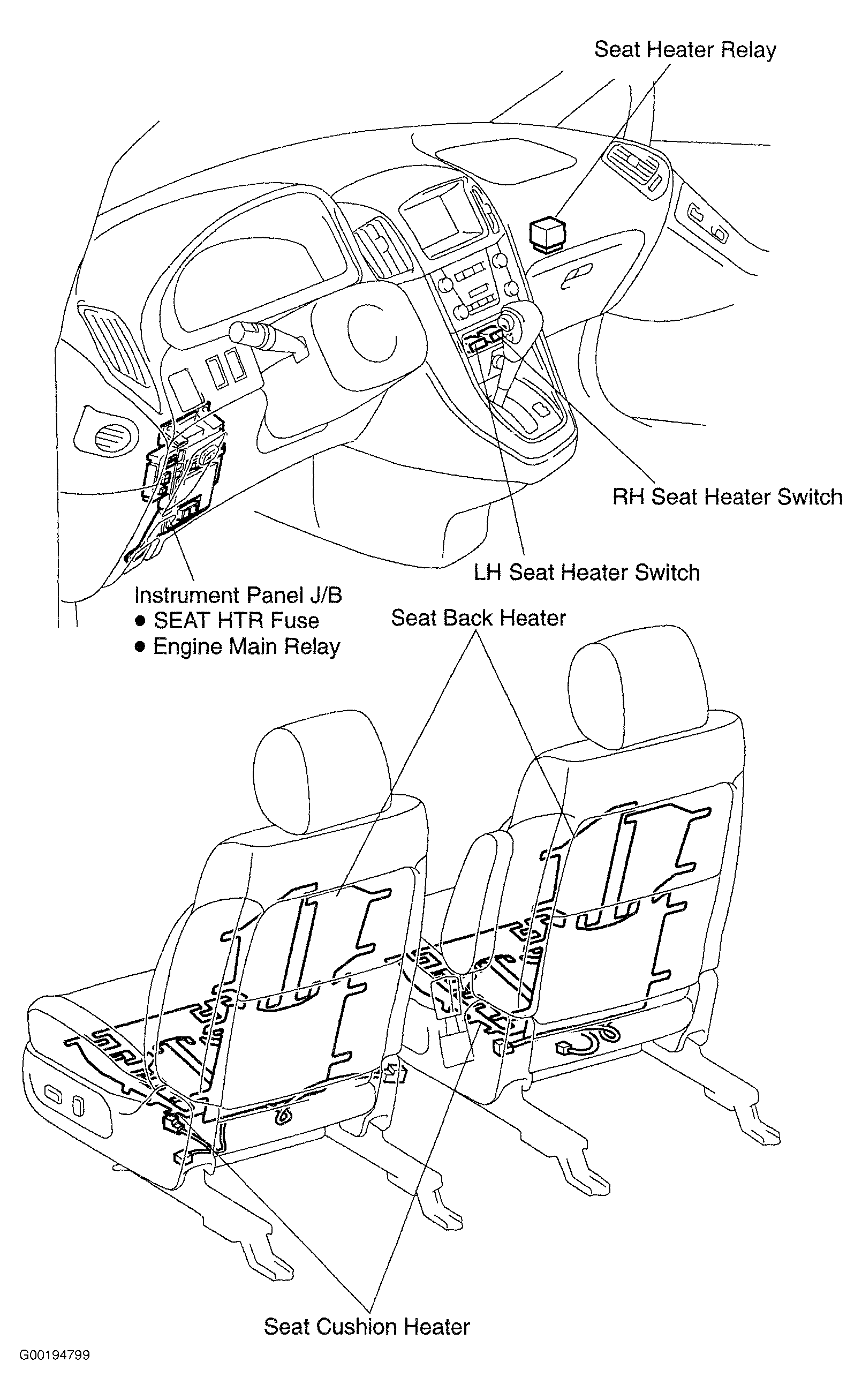

| Seatback Heater | Fig 2 |
| Seat Cushion Heater | Fig 2 |
| Seat Heater Relay | Fig 2 |
| Seat Heater Switch | Fig 2 |
| SEAT HTR Fuse (Located In Instrument Panel Junction Block) | Fig 2 |
| Slide Motor | Fig 1 |
